Multifunction Cylindrical Photoelectric Sensors M8 M12 M18 Photoelectric Proximity Sensors

Multifunction Cylindrical Photoelectric Sensors M8 M12 M18 Photoelectric Proximity Sensors
Multifunction Cylindrical Photoelectric Sensors M8 M12 M18 Photoelectric Proximity Sensors Multifunction Cylindrical Photoelectric Sensors M8 M12 M18 Photoelectric Proximity Sensors Multifunction Cylindrical Photoelectric Sensors M8 M12 M18 Photoelectric Proximity Sensors Multifunction Cylindrical Photoelectric Sensors M8 M12 M18 Photoelectric Proximity Sensors Multifunction Cylindrical Photoelectric Sensors M8 M12 M18 Photoelectric Proximity Sensors Multifunction Cylindrical Photoelectric Sensors M8 M12 M18 Photoelectric Proximity Sensors

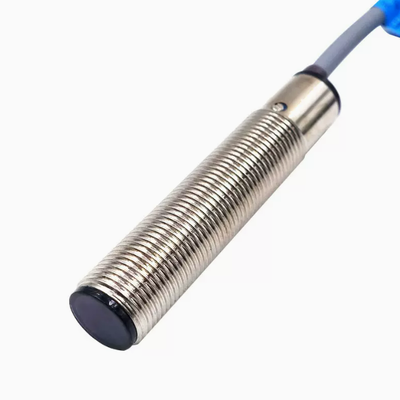

Large Image :  Multifunction Cylindrical Photoelectric Sensors M8 M12 M18 Photoelectric Proximity Sensors

Product Details:
Place of Origin: Guangdong, China
Brand Name: BOJKE
Certification: CE
Model Number: M1850N M1810N1 WR-M12150N
Document: photoelectric cylinder sens...or.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $14.8/pcs
Packaging Details: PP bag with carton box;
Delivery Time: 5~8 work days
Payment Terms: T/T
Supply Ability: 150k
Contact Now Chat Now

Multifunction Cylindrical Photoelectric Sensors M8 M12 M18 Photoelectric Proximity Sensors

Description
Series: Photoelectric Cylindrical Sensor Description: M12 Photoelectric Sensor, M18 Photoelectric Cylindrical Multifunction Sensor
Type: Photoelectric Switch Sensor Usage: Sensing And Detection
Output: NPN Response Frequency: 2KHZ
Highlight:

Cylindrical Photoelectric Sensors

,

M12 Photoelectric Sensor

,

M18 Photoelectric Proximity Sensors

 BOJKE For Multifunction Cylindrical Photoelectric Switch Optical Sensor M8 M12 M18





Product Description

Product Name photoelectric proximity sensors
Housing Material PC
Function laser sensing
Package kraft box

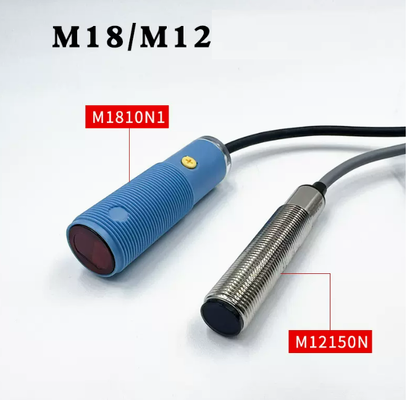

Model No. WR-M12150N M1810N1 M1850N
Detection Type  M12 M18
Detection Direction  diffuse reflection
Detection Distance  15cm 10cm 50cm
Light Spot Size  Ø15mm/15cm Ø15mm/10cm Ø15mm/50cm
Hysteresis Range <20%
Detection Objects  100*100 white paper
Repeat Accuracy <5%
Sensitivity Adjustment knob adjustment
Output Mode  NPN open collector
Swtich Mode  object output signal
Response Time <1ms
Response Frequency 2KHz
Light Source  850nm visiable red light
Working Voltage DC 12~24V ±10%
Residue Voltage (Voltage Drop) <1V
Max Load Current 100mA
Consumption (no-load) Current <25mA
Ambient Illumination Incandescent lamp ≤ 3000Lux; Sunlight ≤ 10000Lux
Ambient Temperature  operation:-25℃~75℃；storage:-40℃~85℃,no freezing
Ambient Humidity operation: 35%~85% RH；storage:35%~95% RH no condensation
Protection Circuit  polarity reversal protection/surge protection/short circuit protection
Protection Level IP67 IP66
Indicator Light Red light
Connection Type 3 core,2 meter standard cable
Housing Material Nickel-Plated Brass+PC ABS
Withstand Voltage AC 500V, 50/60Hz, 1 min
Vibration Resistance 10～55Hz, dual amplitude 1.5mm, X/Y/Z directions each 2 hours
Shock Resistance  500m/S2, X,Y,Z directions each 3 times
Insulation Impedance Above 20M Ω (DC 500V megohmmeter)
FAQ
Q : What is the MOQ?
A : 1pcs for our own available designs
Q : Can I customize a special sensor?
A : Sure
Q : Can I get a lower price if I order large quantities?
A : Yes, Cheaper prices with bigger quantities orders
Q : Can I get a sample?
A : Of course, but you need to pay the sample fee
Q : When will you ship my order?
A : 3 day shipping guarantee for stock item and within 15 days for non-stock items.
Q : How about the quality guarantee period ?
A : Our warranty period is one year since from shipping date.
Q : Can I add or delete items from my order if I change mind?
A : Yes, but you need to tell us asap, if your order has been done in our production line, we cannot change it.
