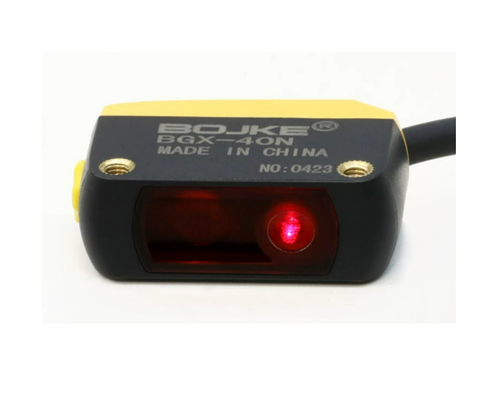

Background Suppression Photoelectric Sensors 30mm-300mm Range Detection Presence

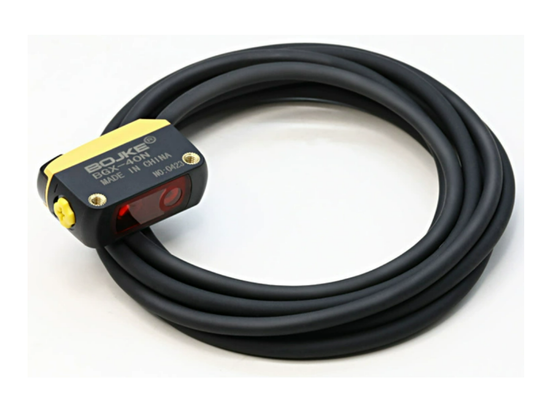

Background Suppression Photoelectric Sensors 30mm-300mm Range Detection Presence
Background Suppression Photoelectric Sensors 30mm-300mm Range Detection Presence Background Suppression Photoelectric Sensors 30mm-300mm Range Detection Presence Background Suppression Photoelectric Sensors 30mm-300mm Range Detection Presence

Large Image :  Background Suppression Photoelectric Sensors 30mm-300mm Range Detection Presence

Product Details:
Place of Origin: Dongguan China
Brand Name: BOJKE
Certification: CE
Model Number: BGX-40N/BGX-40P
Document: BGX-40N.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: $20.8
Packaging Details: PP bag with carton box;
Delivery Time: 5~8 work days
Payment Terms: T/T
Supply Ability: 150k
Contact Now Chat Now

Background Suppression Photoelectric Sensors 30mm-300mm Range Detection Presence

Description
Power Supply: DC 12~24V Light Source: 660nm Red Laser
Light Spot: 1x2mm Output: NPN/PNP
Name: Photoelectric Sensors
Highlight:

Suppression Photoelectric Sensors

,

Background Photoelectric Sensors

,

Photoelectric Sensors 30mm

Product Name laser photo sensor
Material  PC case
Function detection presence and absence

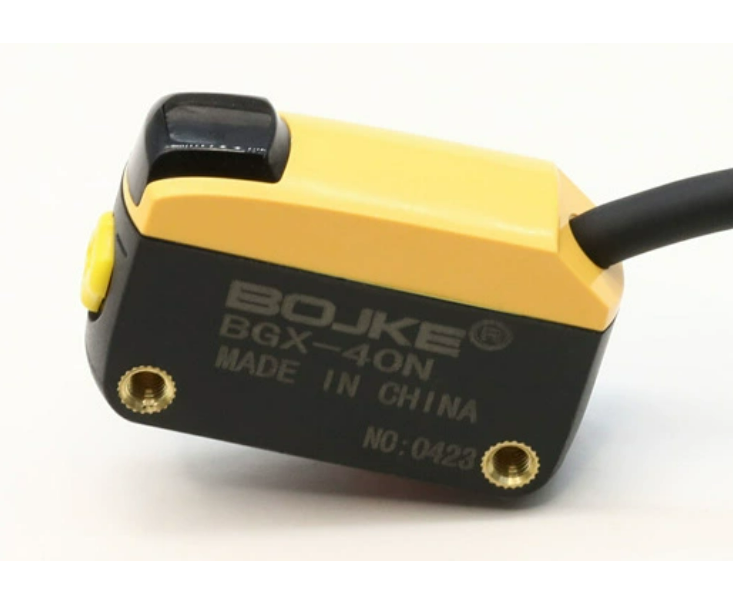

Background Suppression Photoelectric Sensors 30mm-300mm Range Detection Presence 0

photoelectric sensors can be divided into small-sized, compact, cylindrical according to the sensor shape; They can also be divided into diffuse reflection, retro-reflection, polarized reflection, convergent reflection, through beam, BGS etc. according to detection type. The sensing distance is adjustable, easy to set up. Short-circuit protection and reverse polarity protection allow the sensors to handle complex working conditions. Cable and connector connections are available for easy installation. Metal housing products are sturdy and durable to meet the requirements of special applications, while the plastic housing products are economical and easy to install. Light-ON / Dark-ON switchable to meet different signal acquisition needs; built-in power supply options of DC universal power supply.



Background suppression type,

detection distance: 30~400mm

 NPN/PNP light on/dark on output.

Laser spot, high positioning accuracy.

Model  BGX-40N/BGX-40P
Detection Type diffuse reflection, background suppression (Not affected by the color of the detected object)
Detection Range 30~400mm adjustable
Light Spot Size 1X2mm(300mm)
Tolerance <20%
Resolution Ratio bigger than Ø5 opaque objects
Repeat Accuracy   <5%
Sensitivity Adjustment  Multi turn knob adjustment
Output Mode NPN open collector
Mode  Light.on / Dark.on switchable
Response Time <500㎲
Response Frequency 700Hz
Light Source  650nm laser
Operation Voltage DC 12~24V ±10%
Residue Voltage   <1.5V(load current 100mA, 2 meter cable)
Max load current 100mA
Consumation current <15mA
Ambient Illumination Incandescent lamp ≤ 3000Lux; Sunlight ≤ 10000Lux
Ambient Temperature  operation:-10℃~55℃；storage:-25℃~75℃,no freezing
Ambient Humidity  operation: 35%~85% RH；storage:35%~95% RH no condensation
Protection Circuit polarity reversal protection/surge protection/short circuit protection
Protection Degree IP65
Indicatior Red: output by black cable
  Green: output by white cable
Connection Cable-Type 4-core, 2 meter standard cable
Housing material ABS
Withstand Voltage  AC 500V, 50/60Hz, 1 minute
Vibration Resistance  10～55Hz, dual amplitude 1.5mm, X/Y/Z directions each 2 hours
Shock Resistance 500m/S2, X,Y,Z directions each 3 times
Insulation Impedance Above 20M Ω (DC 500V megohmmeter)
