Square Compact Intelligent High Speed Laser Displacement Sensor Multi Function

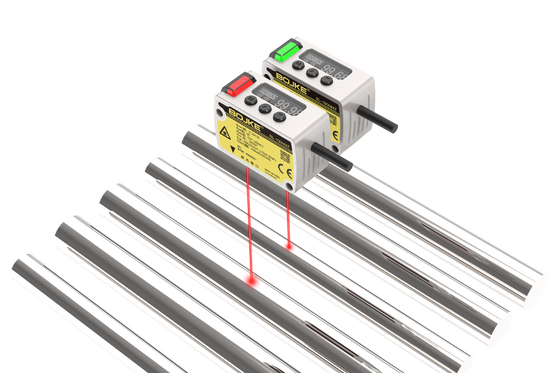

Large Image : Square Compact Intelligent High Speed Laser Displacement Sensor Multi Function

Product Details:

Place of Origin:	Guangdong, China, Dongguan, China
Brand Name:	BOJKE
Certification:	CE
Model Number:	BL series
Document:	BL series displacement sens....7.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$76~$106
Packaging Details:	kraft paper box with carton box;
Delivery Time:	5~8 work days
Payment Terms:	T/T
Supply Ability:	150k

Contact Now Chat Now

Square Compact Intelligent High Speed Laser Displacement Sensor Multi Function

Description

Features:	High Speed, Accuracy, And Multiple Detection Modes	Product Name:	Laser Displacement Sensor
Type:	Laser Distance Sensor, Laser Sensor	Usage:	Measuring Distance, Thickness Height Etc, Object Presence Detection
Output:	NPN/ Analog /RS485	Sensing Type:	CMOS
Light Source:	Laser Class 2	Current Consumption:	<30mA(Analog Current Output), <60mA(Analog Current Voltage)
Sensing Distance:	30mm~400mm
Highlight:	Laser Displacement Sensor Multi Function , Intelligent Laser Displacement Sensor , High Speed Laser Displacement Sensor

Square Compact Multi Function Intelligent High Speed Accuracy Laser Displacement Sensor

Product Description

Product Name	Displacement sensor
Housing Material	Aluminum alloy
Function	Positioning and detection
Package	Kraft box

Model No	NPN	BL-30NZ	BL-50NZ	BL-100NZ	BL-200NZ	BL-400NZ
	NPN+Analog	BL-30NMZ	BL-50NMZ	BL-100NMZ	BL-200NMZ	BL-400NMZ
	NPN+RS485	BL-30NZ-485	BL-50NZ-485	BL-100NZ-485	BL-200NZ-485	BL-400NZ-485
	PNP	BL-30PZ	BL-50PZ	BL-100PZ	BL-200PZ	BL-400PZ
	PNP+Analog	BL-30PMZ	BL-50PMZ	BL-100PMZ	BL-200PMZ	BL-400PMZ
	PNP+RS485	BL-30PZ-485	BL-50PZ-485	BL-100PZ-485	BL-200PZ-485	BL-400PZ-485
Detection Type		Diffuse reflection
Datum (center) Distance		30mm	50mm	100mm	200mm	400mm
Sensing Range(F.S.)		25~35mm	35~65mm	65~135mm	120~280mm	200~600mm
Full Scale		10mm	30mm	70mm	160mm	400mm
Repeat Accuracy		10μm	30μm	70μm	200μm	600μm:200-400mm 1500μm:400-600mm
Linear Precision		±0.3% F.S.				±0.2% F.S.:200-400mm ±0.5% F.S.:400-600mm
Temperature Drift		±0.03% F.S./℃
Light Source	Mediun	Red laser, wavelength 655nm
	Output Power	<1mW
	Laser Class	IEC Class 1
Diameter of Light Spot		Ø50μm	Ø70μm	Ø120μm	Ø300μm	Ø500μm
Output	Digital Output	NPN Open collector, ≤ 50mA/DC 24V, residual voltage<1.5V
	Analog Output	Analog voltage: 0-5V (5.2V during alarm); Analog current: 4-20mA (alarm: 0mA), Chinese display can be switched
Output Operation		Light.on/Dark.on switchable
Response Time		1.5ms/5ms/10ms,switchable
Operation Voltage		DC 12~24V ±10%
Consumption (no-load) Current		<30mA(at supply voltage 24V DC),<60mA(at supply voltage 12V DC)
Indicator		Output indicator light: yellow; Power indicator light : green
Ambient Illuminace		Incandescent lamp ≤ 3000Lux; Sunlight ≤ 20000Lux
Ambient Temperature		Operation temperature:-10℃~45℃； Storage temperature:-20℃~60℃(no freezing)
Ambient Humidity		Operation humidity: 35%~85% RH; Storage humidity: 35%~85% RH (no condensation)
Protection Circuit		polarity reversal protection/surge protection/short circuit protection
Protection		IP66(IEC)/(If need IP67, can customized)
Withstand Voltage		AC 1000V, 50/60Hz(Cycle 1 minute)
Vibration Resistance		10~55Hz (cycle 1 minute), dual amplitude 1.5mm, X/Y/Z each direction 2 hours
Impact Resistance		500m/s2 (about 50G) X/Y/Z each direction 3 times
Insulation Resistance		Above 50MΩ (DC 500V megger)
Material	Housing Material	aluminum alloy
	Lens	PMMA
	Cable	PVC
Connection Type		Include 2 meters 5 core standard cable (cable diameter 4.0mm), can be customize
Weight		about 85g (include 2 meters 5core standard cable)

Q : What is the MOQ?
A : 1pcs for our own available designs
Q : Can I customize a special sensor?
A : Sure
Q : Can I get a lower price if I order large quantities?
A : Yes, Cheaper prices with bigger quantities orders
Q : Can I get a sample?
A : Of course, but you need to pay the sample fee
Q : When will you ship my order?
A : 3 day shipping guarantee for stock item and within 15 days for non-stock items.
Q : How about the quality guarantee period ?
A : Our warranty period is one year since from shipping date.
Q : Can I add or delete items from my order if I change mind?
A : Yes, but you need to tell us asap, if your order has been done in our production line, we cannot change it.
