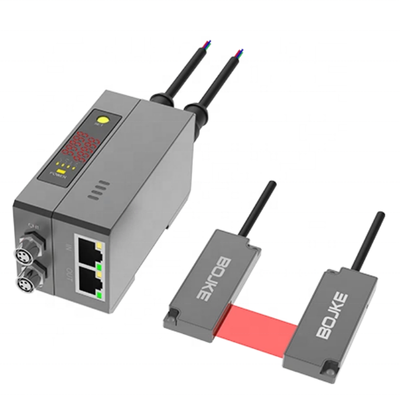

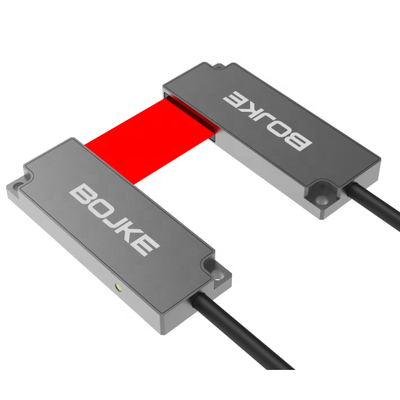

Sensing Range 2-10mm Optical Through-Beam Edge Sensor With Light Axis Alignment

Large Image : Sensing Range 2-10mm Optical Through-Beam Edge Sensor With Light Axis Alignment

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	BOJKE
Certification:	CE
Model Number:	BDT-10
Document:	Edge laser sensor.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$488
Packaging Details:	kraft paper box with carton box;
Delivery Time:	5~8 work days
Payment Terms:	T/T
Supply Ability:	150k

Contact Now Chat Now

Sensing Range 2-10mm Optical Through-Beam Edge Sensor With Light Axis Alignment

Description

Series:	Through-Beam Edge Sensor	Description:	Edge Width And Gap Measurement
Theory:	Light Axis Alignment	Output:	NPN And Analog Output
Response Time:	500μs	Power Supply:	DC 5V
Highlight:	2mm Through-Beam Edge Sensor , 10mm Through-Beam Edge Sensor , Optical Through-Beam Edge Sensor

Optical Through-Beam Edge Sensor With Light Axis Alignment Sensing Range 2~10mm

Product Description

Product Name	Edge gap diameter measure ment
Material	Aluminum alloy
Function	Light axis alignment function
Package	Poly bag+kraft box

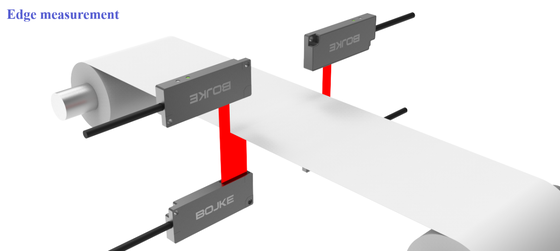

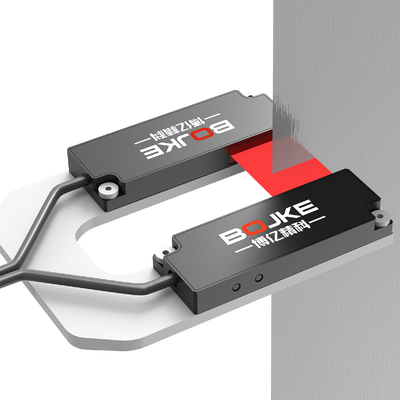

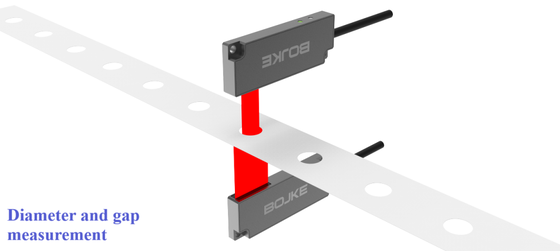

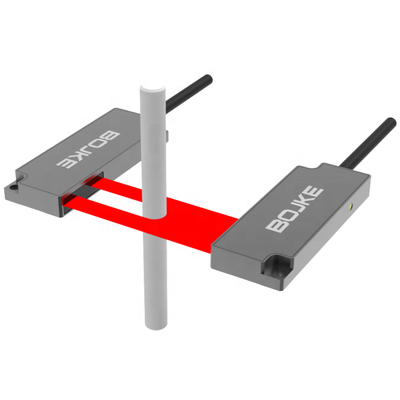

1.Suitable for edge measurement and width/gap measurement

2.Light reflective function for easy installation

3.Compact design for easy installation

4.Send the data of sheet edge positions to a controller to eliminate meandering.

Model:		BDT-10
Measurement range and size:		24mm
Detection distance(from workpiece):		0～40mm
Light source:	wavelength	Red laser·650nm
	Max output power	7mw
Light spot size:		3.5x25mm
Linear accuracy		±200μm
Repeat accuracy		±30μm
Response time		500μs
Temperature drift		±0.02%F.S./℃
RGB Indicator light		Slow flashing green light (2Hz): normal operating state
		Long green light on: program restart loading in progress
		Light off: The light path is completely blocked or in an abnormal state
Analog output		current:4～20mA (Input impedance of sampling terminal≤250Ω)
Supply power		DC 12～24V ±10%
Consumption current		less than 100mA(at DC 24V)
Connection type		M8 4 pin connector
protection degree		IP67
Operation temperature/humidity		-10 ～ + 50℃/35～85%RH(No condensation, no freezing)
Storage temperature/humidity		-20～+60℃/35～85%RH(No condensation, no freezing)
Ambient Illuminance		Sunlight:< 10000lux. incandescent lamp:< 3000lux
Vibration resistance		10～55Hz double amplitude 1.5mm
		X,Y,Z direcitions each 2 hourse
Shock resistance		about 50G(500 m/s2)
		X,Y,Z directions 3 times
Protection circuit		Reverse connection protection,overcurrent protection
Weight		75g
Material		Housing material:Aluminium alloy lens:glass
