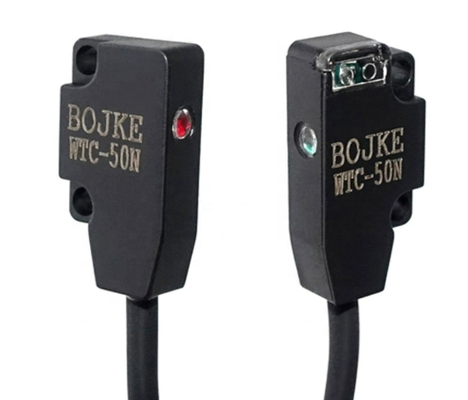

Reflective Diffuse Photoelectric Sensor IP64 Ultra Thin ABS Material

Reflective Diffuse Photoelectric Sensor IP64 Ultra Thin ABS Material
Reflective Diffuse Photoelectric Sensor IP64 Ultra Thin ABS Material Reflective Diffuse Photoelectric Sensor IP64 Ultra Thin ABS Material Reflective Diffuse Photoelectric Sensor IP64 Ultra Thin ABS Material Reflective Diffuse Photoelectric Sensor IP64 Ultra Thin ABS Material Reflective Diffuse Photoelectric Sensor IP64 Ultra Thin ABS Material Reflective Diffuse Photoelectric Sensor IP64 Ultra Thin ABS Material Reflective Diffuse Photoelectric Sensor IP64 Ultra Thin ABS Material

Large Image :  Reflective Diffuse Photoelectric Sensor IP64 Ultra Thin ABS Material

Product Details:
Place of Origin: Guangdong, China
Brand Name: BOJKE
Certification: CE
Document: Ultra thin photo sensor.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $17.8
Packaging Details: kraft paper box with carton box;
Delivery Time: 5~8 work days
Payment Terms: T/T
Supply Ability: 150k
Contact Now Chat Now

Reflective Diffuse Photoelectric Sensor IP64 Ultra Thin ABS Material

Description
Features: Ultra-thin, Ultra-miniature Product Name: Photo Sensor
Description: Reflective Photoelectric Sensor , Diffuse Photoelectric Sensor Output: NPN NC/NO
Sensing Range: 3cm,50cm,100cm Warranty: 1 Year
Cable Length: 2 Meter Supply Voltage: 12 ~ 24V DC 10%
Highlight:

Reflective Photoelectric Sensor

,

Diffuse Photoelectric Sensor IP64

,

Diffuse Photoelectric Sensor Ultra Thin

Reflective Diffuse Photoelectric Sensor IP64

Product Description

Product Name Ultra thin photoelectric sensor
Material ABS
Function Detect absent and present
Package PP bag with carton box

Product performance description

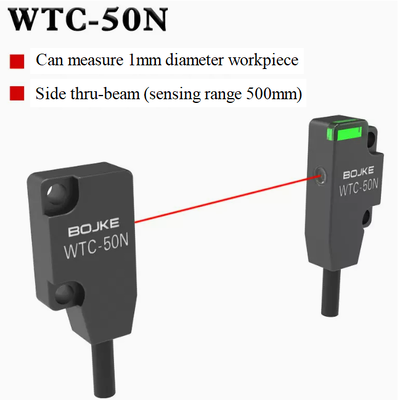

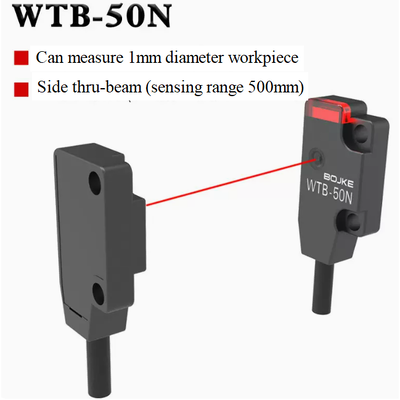

1. Can measure 1mm diameter workpiece
2. Side thru-beam (sensing range 500mm)

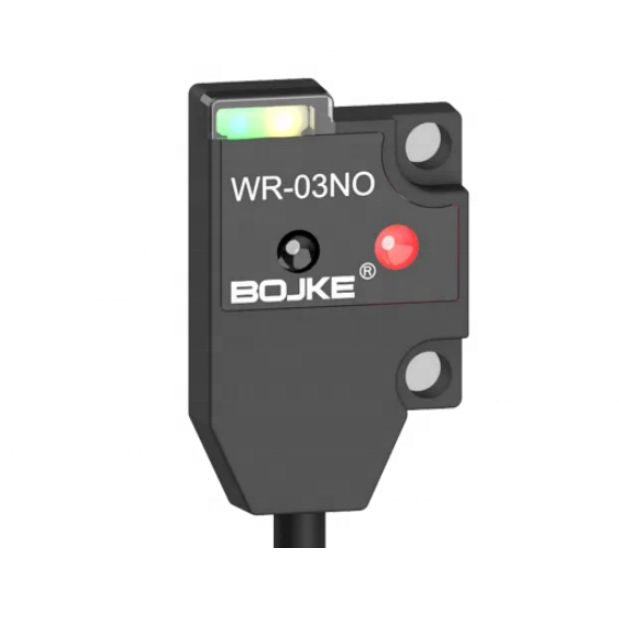

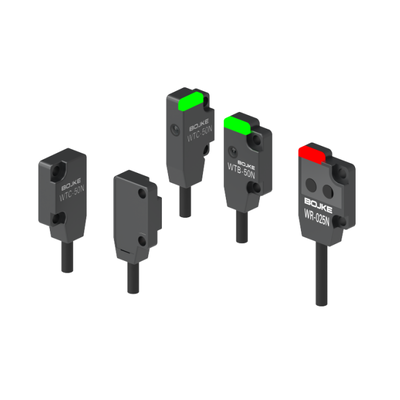

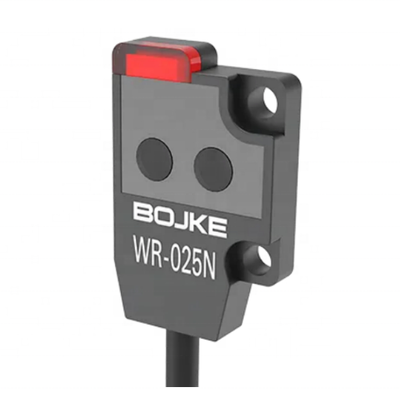

Model No WR-03PO WR-03NC WTB-50NO WTB-50NC WTC-50NO WTC-50NC
Detection Type  diffuse reflection  thru-beam
Detection Direction  front  front side
Detection Range 3cm 50cm
Light Spot Size 2.5X3mm/3cm Ø5cm/50cm
Hysteresis Range <5%
mini detection object 10mm:Φ1.5mm  |   5mm:Φ0.6mm Φ2mm opaque objects
Repeat Accuracy  <5%
Output type PNP  NPN
Switching Mode Light.on Dark.on Dark.on Light.on Dark.on Light.on
Response Time <500㎲ <1㎳
Response Frequency 700HZ 300HZ
Light Source 700nm Visible red light 660nm  Visible red light
Operation Voltage DC 12~24V ±10%
Residue Voltage  <1.5V(load current 100mA,2 meter cable)
Max Load Current 100mA
Consumption Current <10mA Receiver:<10mA； Transmitter:<15mA
Ambient Illumination Incandescent lamp ≤ 3000Lux; Sunlight ≤ 10000Lux
Ambient Temperature  operation:-10℃~55℃；storage:-25℃~75℃,no freezing
Ambient Humidity operation: 35%~85% RH；storage:35%~95% RH no condensation
Protection Circuit polarity reversal protection/surge protection/short circuit protection
Protection Level IP64
Indicator Light  Orange

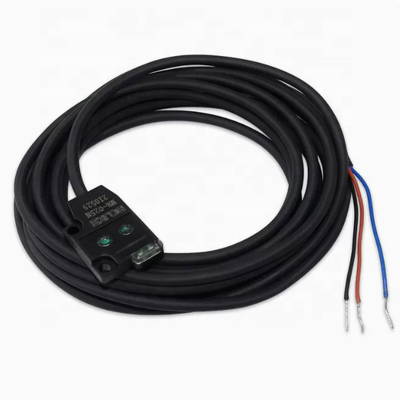

Connection Type 3 core, 2 meter standard
Housing Material ABS
Withstand Voltage AC 500V, 50/60Hz, 1 minute
Vibration Resistance 10～55Hz, dual amplitude 1.5mm, X/Y/Z directions each 2 hours
Impact Resistance  500m/S2, X,Y,Z directions each 3 times
Insulation Impedance  Above 20M Ω (DC 500V megohmmeter)

FAQ
Q : What is the MOQ?
A : 1pcs for our own available designs
Q : Can I customize a special sensor?
A : Sure
Q : Can I get a lower price if I order large quantities?
A : Yes, Cheaper prices with bigger quantities orders
Q : Can I get a sample?
A : Of course, but you need to pay the sample fee
Q : When will you ship my order?
A : 3 day shipping guarantee for stock item and within 15 days for non-stock items.
Q : How about the quality guarantee period ?
A : Our warranty period is one year since from shipping date.
Q : Can I add or delete items from my order if I change mind?
A : Yes, but you need to tell us asap, if your order has been done in our production line, we cannot change it.
