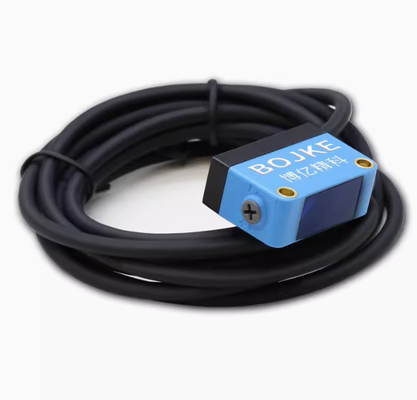

BGS Blue Light Photo Sensor , High Precision Reflective Optical Sensor

BGS Blue Light Photo Sensor , High Precision Reflective Optical Sensor
BGS Blue Light Photo Sensor , High Precision Reflective Optical Sensor BGS Blue Light Photo Sensor , High Precision Reflective Optical Sensor BGS Blue Light Photo Sensor , High Precision Reflective Optical Sensor BGS Blue Light Photo Sensor , High Precision Reflective Optical Sensor BGS Blue Light Photo Sensor , High Precision Reflective Optical Sensor BGS Blue Light Photo Sensor , High Precision Reflective Optical Sensor

Large Image :  BGS Blue Light Photo Sensor , High Precision Reflective Optical Sensor

Product Details:
Place of Origin: Guangdong, China
Brand Name: BOJKE
Certification: CE
Model Number: BGS-LS61LG/KGS-19LG
Document: KGS-19LG.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $13.6
Packaging Details: PP bag with carton box;
Delivery Time: 5~8 work days
Payment Terms: T/T
Supply Ability: 150k
Contact Now Chat Now

BGS Blue Light Photo Sensor , High Precision Reflective Optical Sensor

Description
Series: Blue Light Photo Sensor Description: Reflective Photoelectric Sensor , Diffuse Photoelectric Sensor
Usage: Detecting New Energy Photovoltaic Silicon Wafers Output: NPN/PNP
Supply Voltage: 12 ~ 24V DC 10% Warranty: 1 Year
Highlight:

Blue Light Photo Sensor

,

BGS Photo Sensor

,

High Precision Reflective Optical Sensor

BGS Blue Light Photo Sensor , Reflective Optical Sensor

Product Description

Product Name Blue light BGS photoelectric sensor
Material ABS
Function detect absent and present
Package pp bag

Product performance description

1. Use blue LED (470 nm) high precision and more stale.
2. Background suppression function avoid background affect.

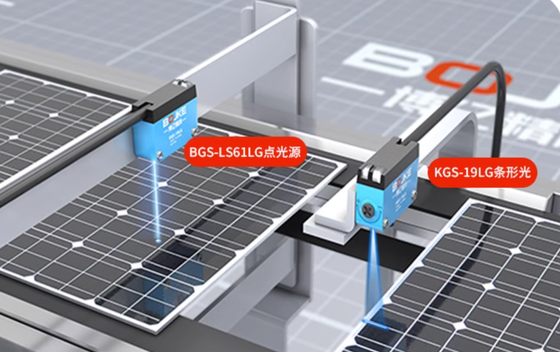

3. more suitable for new energy photovoltaic silicon wafers

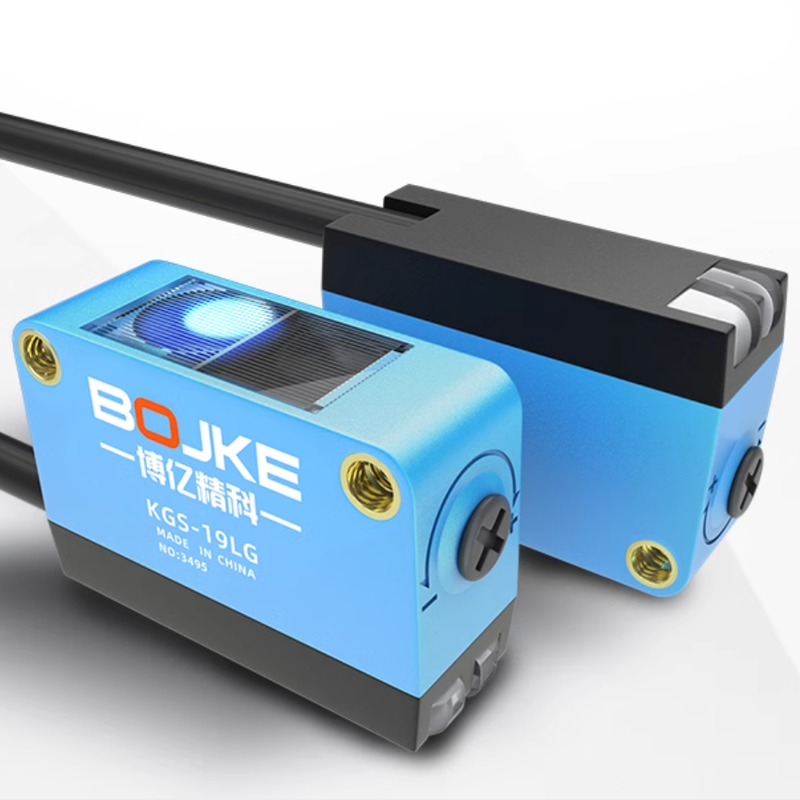

Model  KGS-19LG
Detection Type   reflection, strip light beam
Detection Distance  10~200mm
Light Spot Size   10*5mm(at 10mm), 130*10mm (at 200mm)
Hysteresis Range  <2%
Repeat Accuracy  <1mm
Output Type  NPN open collector (load voltage<DC26.4V; load current <100mA; resige voltage<1V
Switching Mode    Light.on  (black cable)/ Dark.on ( white cable wire 0V)
Response Time  <1ms
Working Voltage  DC 12~24V ±10%
Consumption Current  <30mA
Ambient Illumination   Incandescent lamp ≤ 3000Lux; Sunlight ≤ 10000Lux
Ambient Temperature  operation:-25℃~55℃；storage:-40℃~70℃,no freezing
Ambient Humidity  operation: 35%~85% RH；storage:35%~95% RH no condensation
Protection Circuit   polarity reversal protection/surge protection/short circuit protection
Protection Level  IP65
Indicator Light  Working indicator: Red;  Power indicator: Green
Connection Type  4 core, 2 meter standard cable
Withstand Voltage  AC 500V, 50/60Hz, 1 minute
Vibration Resistance  10～55Hz, dual amplitude 1.5mm, X/Y/Z directions each 2 hours
Impact Resistance   500m/S2(50g), X,Y,Z directions each 3 times
Connection Type  cable type, 2meter cable
Material housing case:PBT  Lens:PMMA
Weight 60g



Model  BGS-LS61LG
Detection Type   background suppression  reflection
Detection Distance  40~300mm
Light Spot Size  Φ7mm
Hysteresis Range  <2%
Repeat Accuracy  <1mm
Output Type  NPN open collector (load voltage<DC26.4V; load current <100mA; residual voltage<1V
Switching Mode    Light.on  (black cable)/ Dark.on ( white cable wire 0V)
Response Time  <1ms
Working Voltage  DC 12~24V ±10%
Consumption Current  <30mA
Ambient Illumination   Incandescent lamp ≤ 3000Lux; Sunlight ≤ 10000Lux
Ambient Temperature  operation:-25℃~55℃；storage:-40℃~70℃,no freezing
Ambient Humidity  operation: 35%~85% RH；storage:35%~95% RH no condensation
Protection Circuit   polarity reversal protection/surge protection/short circuit protection
Protection Level  IP65
Indicator Light  Working indicator: Red;  Power indicator: Green
Connection Type  4 core, 2 meter standard cable
Withstand Voltage  AC 500V, 50/60Hz, 1 minute
Vibration Resistance  10～55Hz, dual amplitude 1.5mm, X/Y/Z directions each 2 hours
Impact Resistance   500m/S2(50g), X,Y,Z directions each 3 times
Connection Type  cable type, 2meter cable
Material housing case:PBT  Lens:PMMA
Weight 60g
FAQ
Q : What is the MOQ?
A : 1pcs for our own available designs
Q : Can I customize a special sensor?
A : Sure
Q : Can I get a lower price if I order large quantities?
A : Yes, Cheaper prices with bigger quantities orders
Q : Can I get a sample?
A : Of course, but you need to pay the sample fee
Q : When will you ship my order?
A : 3 day shipping guarantee for stock item and within 15 days for non-stock items.
Q : How about the quality guarantee period ?
A : Our warranty period is one year since from shipping date.
Q : Can I add or delete items from my order if I change mind?
A : Yes, but you need to tell us asap, if your order has been done in our production line, we cannot change it.
