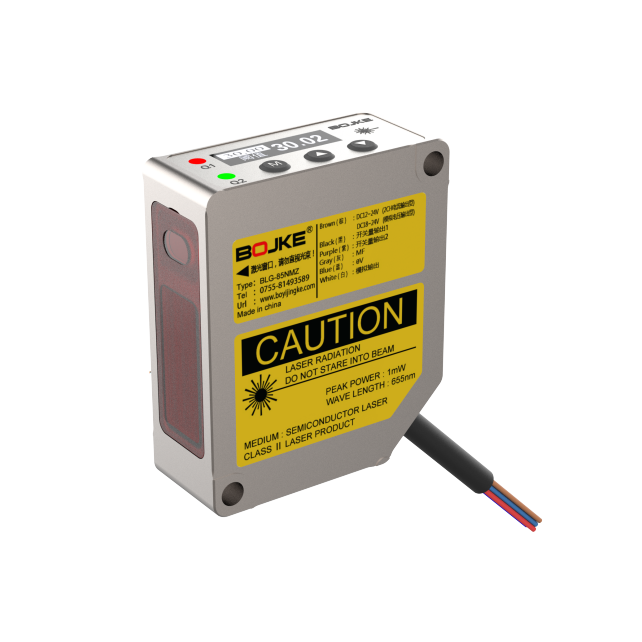

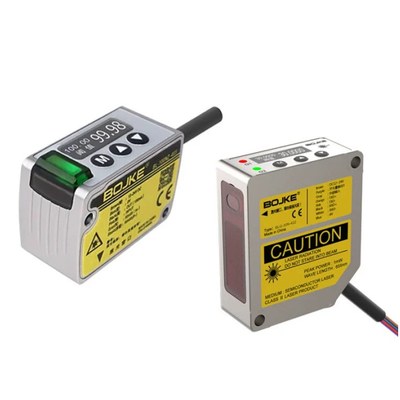

High Precision CMOS Laser Displacement Sensor Measurement Position Analog RS485 Output

High Precision CMOS Laser Displacement Sensor Measurement Position Analog RS485 Output
High Precision CMOS Laser Displacement Sensor Measurement Position Analog RS485 Output High Precision CMOS Laser Displacement Sensor Measurement Position Analog RS485 Output High Precision CMOS Laser Displacement Sensor Measurement Position Analog RS485 Output

Large Image :  High Precision CMOS Laser Displacement Sensor Measurement Position Analog RS485 Output

Product Details:
Place of Origin: Dongguan China
Brand Name: BOJKE
Certification: CE
Model Number: BLG series
Document: BLG series high precision l....6.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $260
Packaging Details: kraft case with carton box;
Delivery Time: 5~8 work days
Payment Terms: T/T
Supply Ability: 150k
Contact Now Chat Now

High Precision CMOS Laser Displacement Sensor Measurement Position Analog RS485 Output

Description
Product Name: Laser Displacement Sensor Name: Laser Triangulation Sensor
Power Supply: 12~24V DC Resolution: Min:0.1um Max:10um
Repeatability: Min:2um Max:75um Linearity Accuracy: ±0.2%F.S~±0.5%F.S
Light Source: Laser Class II Response Time: 2ms/11.5ms/36.5ms
Output: NPN/PNP/Analog/RS485
Highlight:

High Precision Laser Displacement Sensor

,

CMOS Laser Displacement Sensor

,

Laser Displacement Sensor RS485 Output

High Precision CMOS Laser Displacement Sensor Measurement Position Analog Rs485 Output



Product Name laser displacement sensor
Material Aluminum alloy case

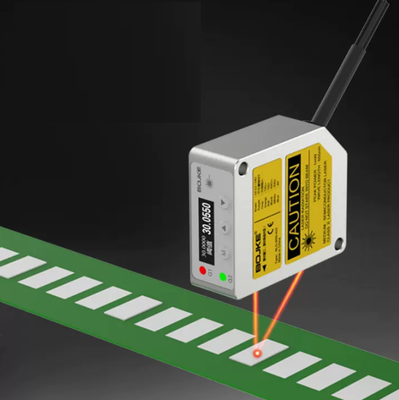

Function Position measuring thickness,height and distance in automation industrial



High Precision CMOS Laser Displacement Sensor Measurement Position Analog RS485 Output 0

                                     Model BLG-30N(P)M BLG-50N(P)M BLG-85N(P)M BLG-250N(P)M
BLG-30N(P)M-485 BLG-50N(P)M-485 BLG-85N(P)M-485 BLG-250N(P)M-485
Sensing Range(F.S.) 30mm±4mm 50mm±10mm 85mm±20mm 250±150mm
Resolution Ratio 0.1um 1um 1um 10um
Light Source Read laser
wavelength:655nm   Max output power:1mw
Laser Type IEC/JIS Class 2
FDA Class II
Light Spot Size *1 close distance 0.15x0.15mm 0.6x1.2mm 0.9x1.5mm 1.5x2.5mm
center distance 0.1x0.1mm 0.5x1.0mm 0.75x1.25mm 1.75x3.5mm
long distance 0.15x0.15mm 0.4x0.9mm 0.6x1.0mm 2.0x4.5
Linear Accuracy  ±0.2% F.S.   (F.S=8mm) ±0.2% F.S.   (F.S=20mm) ±0..2% F.S.   (F.S=40mm) ±0.5% F.S.   (F.S=300mm)
Repeat Accuracy             2μm                                (at fast mode 4mm)              5μm                             (at fast mode 8mm)           10μm                     (at fast mode 15mm)              75μm                     (at fast mode 150mm)
Response Time high speed max.2ms max.2.5ms
standard max.11.5ms max15.5ms
high accuracy max.36.5ms max48.5ms
                       sampling period 550us
Temperature Drift  ±0.08% F.S./℃
Indicator output indicator ON statuts:NPN output Q1 bright/PNP output Q2 bright
MF input( mutifuction input) Select from the external inputs in the menu: zero adjustment, teach, stop laser
after connecting the gray MF line to the positive pole of the power supply (24V) and disconnecting it, it is triggered once
Ambient Illuminace Incandescent lamp ≤ 3000Lux; Sunlight ≤ 10000Lux
Ambient Temperature Operation:-10℃~45℃；  Storage:-20℃~60℃(no freezing)
Ambient Humidity  Operation: 35%~85% RH; Storage: 35%~95% RH (no condensation)
Protection Circuit  polarity reversal protection/surge protection/short circuit protection
Protection Level IP66(IEC) (IP67 can customized)
Vibration Resistance 10~55Hz (cycle 1 minute), dual amplitude 1.5mm,  X/Y/Z each direction 2 hourse
Impact Resistance  Durable 500m/s2 (about 50G) X/Y/Z each direction 3 times
Material Cover Case  aluminum alloy
Lens PMMA
Cable PVC
Connection 2 meters 6 core standard cable (cable diameter 5mm)
Weight About 250g (include 2 meters  6-core standard cable)
Power supply 12~24V DC(-5%,+10%)
Consumption(no-load) Current Max.60mA (include analog output)
Output Swithing Output NPN/PNP max.100mA/DC 30V (residue voltage 1.8V)
Analog output 4~20mA   Load impedance: below 300Ω
0~10V Output impedance: 100 Ω
