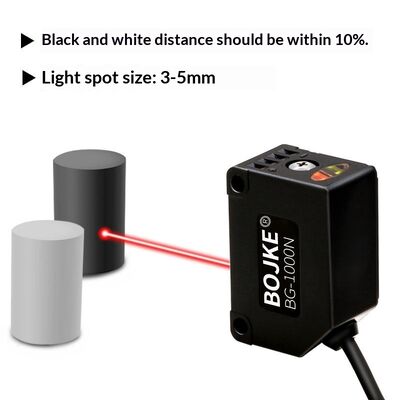

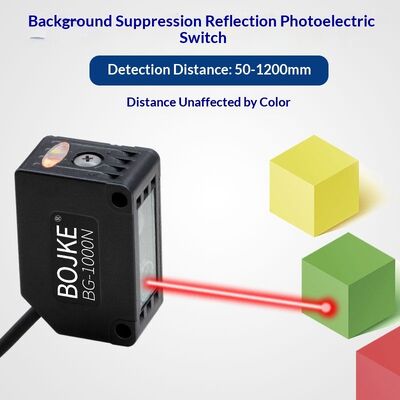

Background Suppression Photoelectric Sensors 50mm-1200mm Detection Distance

Background Suppression Photoelectric Sensors 50mm-1200mm Detection Distance
Background Suppression Photoelectric Sensors 50mm-1200mm Detection Distance Background Suppression Photoelectric Sensors 50mm-1200mm Detection Distance Background Suppression Photoelectric Sensors 50mm-1200mm Detection Distance Background Suppression Photoelectric Sensors 50mm-1200mm Detection Distance Background Suppression Photoelectric Sensors 50mm-1200mm Detection Distance

Large Image :  Background Suppression Photoelectric Sensors 50mm-1200mm Detection Distance

Product Details:
Place of Origin: Guangdong, China
Brand Name: BOJKE
Certification: CE
Model Number: BG-1000N/BG-1000P
Document: BG-1000N specification.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $30
Packaging Details: kraft box with carton box;
Delivery Time: 5~8 work days
Payment Terms: T/T
Supply Ability: 150k
Contact Now Chat Now

Background Suppression Photoelectric Sensors 50mm-1200mm Detection Distance

Description
Features: Background Suppression, High-sensitivity, Type: Background Suppression Photoelectric Sensors
Product Name: Photo Sensor Series: Long Distance Range
Usage: Industry Automatic Output: NPN/PNP
Response Time: <1ms Voltage - Supply: DC12~24V ±10%
Highlight:

Background Suppression Photoelectric Sensors 50mm

,

Photoelectric Sensors 1200mm

,

Background Suppression Photo Sensor

Product Description


Product Name Long distance range sensor
Material case: PBT Lens: resin
Function Detection
Package plastic bag+inner box





Background Suppression Photoelectric Sensors 50mm-1200mm Detection Distance 0
Model No BG-1000N/BG-1000P
Detection Type diffuse reflector
Detection Distance 50mm-1200mm
Light Spot Size 3mm~5mm
Hysteresis Range 10% between black background and white background
Detection Object semi transparent or dark colored objects
Repeat Accuracy horizontal detection <1mm   Vertical detection <0.2mm
Sensitivity Adjustment   knob adjustment
Output Type  NPN open collector
Switching Mode Light.on
Response Time <1ms
Response Frequency 1KHz
Light Source 650nm visible red light
Working Voltage DC 12~24V ±10%
Residue Voltage (Voltage drop)  <3V
Max Load Current 100mA
Consumption (no-load) Current  <25mA
Ambient Illumination  Incandescent lamp ≤ 3000Lux; Sunlight ≤ 10000Lux
Ambient Temperature  operation temperature:-25℃~75℃；storage:-40℃~85℃,no freezing
Ambient Humidity  operation humidity: 5%~85% RH；storage:5%~95% RH no condensation
Protection Circuit polarity reversal protection/surge protection/short circuit protection
Protection Level IP65
Indicator Light Orange
Connection Type 3 core 2 meter standard cable
Housing Material PC+ABS
Withstand Voltage AC 500V, 50/60Hz, 1 minute
Vibration Resistance 10～55Hz, dual amplitude 1.5mm, X/Y/Z directions each 2 hours
Impact Resistance 500m/S2, X,Y,Z directions each 3 times
Insulation Impedance  Above 20M Ω (DC 500V megohmmeter)
