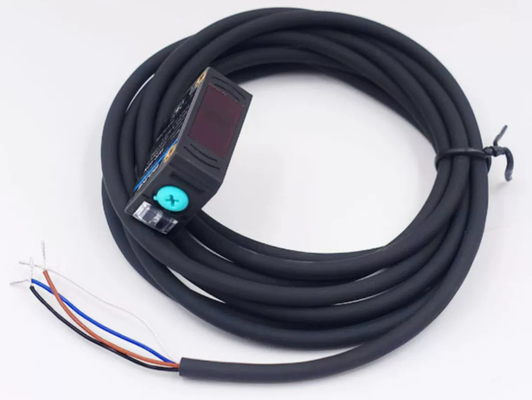

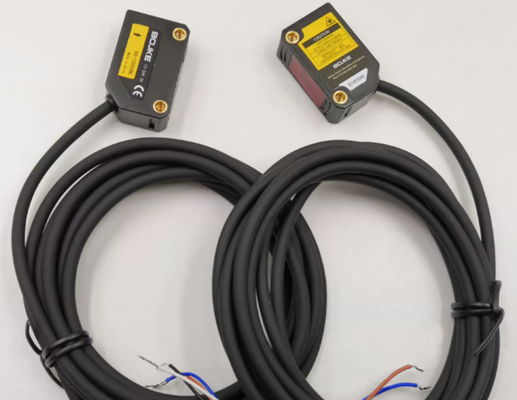

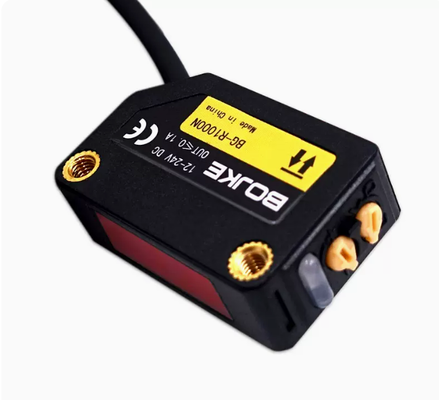

30m Laser Photoelectric Sensor , Through Beam Photoelectric Sensor Switch

30m Laser Photoelectric Sensor , Through Beam Photoelectric Sensor Switch
30m Laser Photoelectric Sensor , Through Beam Photoelectric Sensor Switch 30m Laser Photoelectric Sensor , Through Beam Photoelectric Sensor Switch 30m Laser Photoelectric Sensor , Through Beam Photoelectric Sensor Switch 30m Laser Photoelectric Sensor , Through Beam Photoelectric Sensor Switch

Large Image :  30m Laser Photoelectric Sensor , Through Beam Photoelectric Sensor Switch

Product Details:
Place of Origin: Guangdong, China
Brand Name: BOJKE
Certification: CE
Model Number: BG-T3000N
Document: BG-T3000N.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $14.8
Packaging Details: kraft paper box with carton box;
Delivery Time: 5~8 work days
Payment Terms: T/T
Supply Ability: 150k
Contact Now Chat Now

30m Laser Photoelectric Sensor , Through Beam Photoelectric Sensor Switch

Description
Product Name: Through Beam Photoelectric Sensor Usage: Sensing And Detection
Theory: Optical Signal To Electrical Signal Size: 22X35.65mm
Detection Distance: 30 Meter Power Supply: 12~24VDC
Output: NPN
Highlight:

Through Beam Photoelectric Sensor Switch

,

30m Through Beam Photoelectric Sensor

,

30m Laser Photoelectric Sensor

30 Meter Laser Through Beam Photoelectric Sensor Switch Optic Optical Sensors



Product Description

Product Name photoelectric sensor
Housing Material PC
Function laser detection
Package kraft box
30m Laser Photoelectric Sensor , Through Beam Photoelectric Sensor Switch 0


Model  BG-T3000N
Detection Mode  Throubeam
Detection Distance 30M
Ligh Spot Size Ø10mm/30M
Hysterisis Error Range <20%
Standard detecton Object above Ø12mm opaque objects
Repeat Accuracy <5%
Sensitivity Adjustment Multi turn knob adjustment
Output Mode  NPN open collector
Switch Mode  Light.on / Dark.on switchable
Response Time <1ms
Response Frequency 1KHz
Light Source Laser light-emitting diode
Operation Voltage DC 12~24V ±10%
Residue Voltage <3V
Max Load Current 100mA
ConsumptionCurrent  <25mA
Ambient Illumination  Incandescent lamp ≤ 3000Lux; Sunlight ≤ 10000Lux
  Ambient Temperature Operation:-10℃~55℃； Storage:-25℃~70℃,No freezing
  Ambient Humidity Operation:35%~85% RH； Storage:35%~95% RH,no condensation
  Protection Circuit  Polarity reversal protection/surge protection/short circuit protection
  Protection Level IP65
  Indicator Orange
  Connection   4 core, standard cable 2 meters
  Housing Material ABS+PC
  Withstand Voltage  AC 500V, 50/60Hz, 1 minute
  Impact Resistance 10~55Hz, dual amplitude 1.5mm, 2 hours each in X/Y/Z direction
  Impact Resistance 500m/S2, X,Y,Z direction each 3 times
  Isulation Resistance  Above 20MΩ(DC 500V Megger)

Q : What is the MOQ?
A : 1pcs for our own available designs
Q : Can I customize a special sensor?
A : Sure
Q : Can I get a lower price if I order large quantities?
A : Yes, Cheaper prices with bigger quantities orders
Q : Can I get a sample?
A : Of course, but you need to pay the sample fee
Q : When will you ship my order?
A : 3 day shipping guarantee for stock item and within 15 days for non-stock items.
Q : How about the quality guarantee period ?
A : Our warranty period is one year since from shipping date.
Q : Can I add or delete items from my order if I change mind?
A : Yes, but you need to tell us asap, if your order has been done in our production line, we cannot change it.
