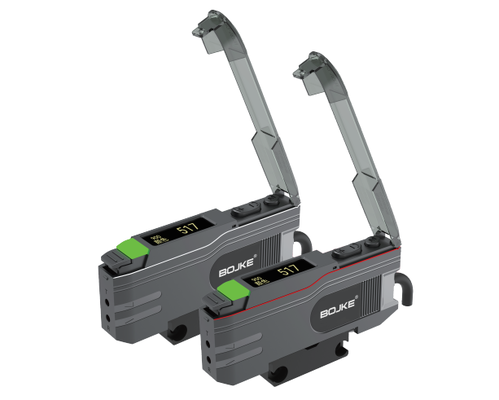

RGB Color Separation Fiber Optic Photoelectric Color Mark Sensor Switch LED Color Code Sensor

RGB Color Separation Fiber Optic Photoelectric Color Mark Sensor Switch LED Color Code Sensor
RGB Color Separation Fiber Optic Photoelectric Color Mark Sensor Switch LED Color Code Sensor RGB Color Separation Fiber Optic Photoelectric Color Mark Sensor Switch LED Color Code Sensor RGB Color Separation Fiber Optic Photoelectric Color Mark Sensor Switch LED Color Code Sensor RGB Color Separation Fiber Optic Photoelectric Color Mark Sensor Switch LED Color Code Sensor RGB Color Separation Fiber Optic Photoelectric Color Mark Sensor Switch LED Color Code Sensor

Large Image :  RGB Color Separation Fiber Optic Photoelectric Color Mark Sensor Switch LED Color Code Sensor

Product Details:
Place of Origin: Guangdong, China
Brand Name: BOJKE
Certification: CE
Model Number: BS-502 and BS-502LG
Document: BS-502 user manual.docx
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: kraft paper box with carton box;
Delivery Time: 5~8 work days
Payment Terms: T/T
Supply Ability: 150k
Contact Now Chat Now

RGB Color Separation Fiber Optic Photoelectric Color Mark Sensor Switch LED Color Code Sensor

Description
Product Name: RGB Color Separation Description: Color Mark Sensor, RGB Color Separation Fiber Optic Color Sensor
Output: NPN/PNP Response Time: <1ms
Power Supply: DC12~24V ±10% Response Frequency: 1000HZ
Highlight:

Color Mark Sensor Switch

,

Photoelectric Color Mark Sensor

,

LED Color Code Sensor

RGB Color Separation Fiber Optic Photoelectric Color Mark Sensor Switch LED Color Code





Product Description

Product Name color mark sensor
Material ABS
Function Identification mark, color etc
Package plastic box+inner box





RGB Color Separation Fiber Optic Photoelectric Color Mark Sensor Switch LED Color Code Sensor 0

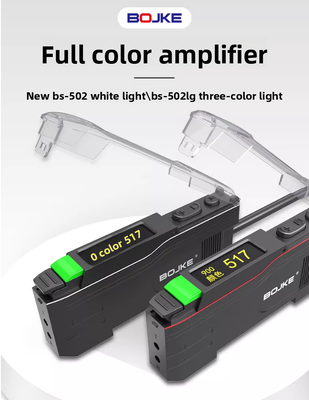

Model No BS-502 BS-502LG
Operation Voltage DC 12~24V ±10%
Consumption (no-load)  Current ≤35mA

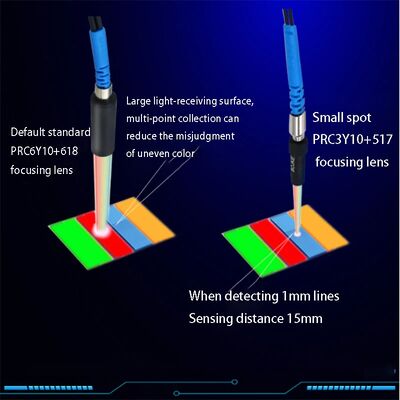

Detection Range 18~28mm

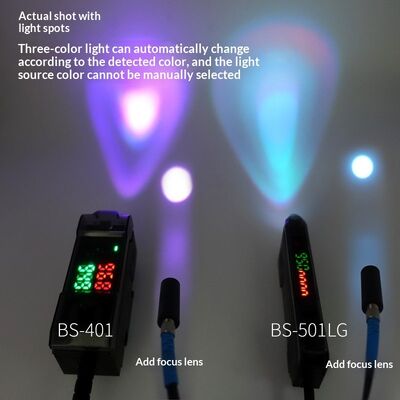

Light Source RGB color, 4-element LED RGB blue light

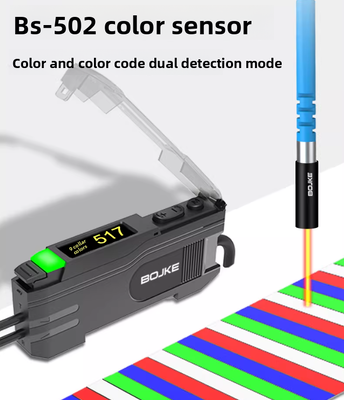

Detection Mode color mode and color mark mode switchable
Response Time color mark:50us； color:130us
Response Frequency 1000Hz
 Output Type NPN open collector
Max Input Current <50mA
Residue Voltage <1.5V
Switch Type color mark mode: ON when detected; Color mode: ON when consistent
Ambient Illumination Incandescent lamp ≤ 3000Lux; Sunlight ≤ 10000Lux
Ambient Temperature operation:-10℃~55℃；storage:-25℃~75℃,no freezing
Ambient Humidity operation: 35%~85% RH；storage:35%~95% RH no condensation
Protection Circuit short circuit protection
Protection Level IP65
Connection Type 4 core 2 meters standard cable
Housing Material PBT
Withstand Voltage AC 500V, 50/60Hz, 1 minute
Vibration Resistance 10～55Hz, dual amplitude 1.5mm, X/Y/Z directions each 2 hours
Impact Resistance 500m/S2, X,Y,Z directions each 10 times
Insulation Impedance  Above 20M Ω (DC 500V megohmmeter)
