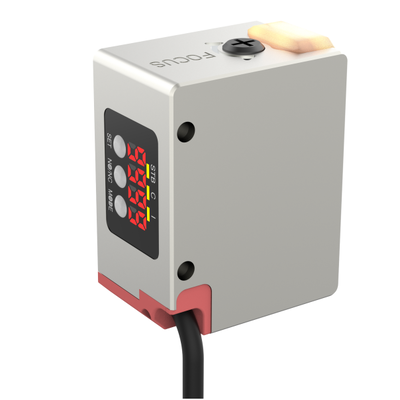

Manual Installation Identification Sensors KEYENCE LR-W Series Color Mark Sensor Replacement

Model

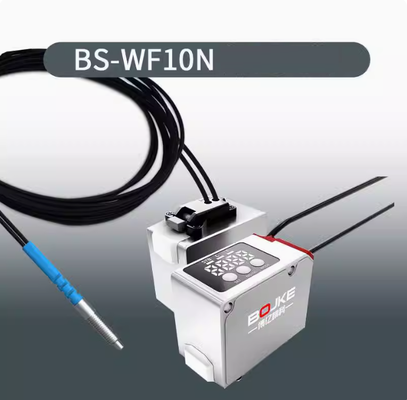

BS-WF10N

BS-WF10NP

Output

NPN output

PNP output

Type

1 output port, cable type

Output control

1 output port, with short circuit protection and automatic anti-interference function

Light source

White LED ,Used along with fibers

Response time

AUTO,C and CI mode max 200US, MARK mode 160US.

Output option

LIGHT-ON/DARK-ON(select in menu)

Display indicator

Indicator:Red LED,LED display screen

Detection Mode

AUTO,C, CI and MARK mode

Timer

OFF delay/ON delay/one shot timer/ON delay one shot optional. Time range: 1ms ~ 9999ms

Output control

NPN/PNP open collector 24V, Max 100mA(only main components).

Current consumption: 40mA or less (When connecting extension components)

Light source

12 ~ 24VDC±10%, ripple (P-P):10％ or less, class 2

Ambient Illuminance

Incandescent: 20,000lux or less,               Sunlight:30,000lux or less

Power consumption

 Max voltage:24V,Current:60MA or less

 Max voltage:24V,Current:60MA or less

Vibration resistant

10 ~55Hz,dual amplitude:1.5mm,X,Y,Z direction each 2 hours

Ambient temperature

-10 ~ +55℃, no freezing
