Long Distance Color Code Sensor Mark RS485 Output 200μS Response Time

Large Image : Long Distance Color Code Sensor Mark RS485 Output 200μS Response Time

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	BOJKE
Certification:	CE
Model Number:	BS-W50N
Document:	BS-W50N User manual-2024.4....24.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$95
Packaging Details:	kraft paper box with carton box;
Delivery Time:	5~8 work days
Payment Terms:	T/T
Supply Ability:	150k

Contact Now Chat Now

Long Distance Color Code Sensor Mark RS485 Output 200μS Response Time

Description

Features:	Long-distance Color Recognition	Type:	Color Code Sensor
Mounting Type:	Manual Installation	Description:	Color Mark Sensor, Color Mark Photoelectric Sensor
Manufacturer Part Number:	BS-500NP	Usage:	Industrial Automation
Theory:	Photoelectric Sensor	Output:	RS485
Response Time:	200μm	Voltage - Supply:	DC12~24V ±10%
Highlight:	Long Distance Color Code Sensor , Color Code Sensor RS485 Output , Color Code Sensor 200μS Response Time

BOJKE RS485 Output 200μS Response Time Long-Distance Color Recognition Sensor Mark

Product Name	Color mark sensor
Material	Aluminum alloy
Function	Recognize

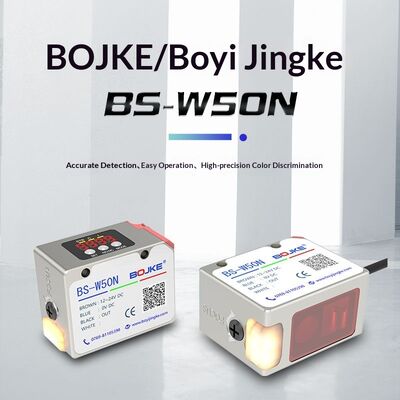

Model	BS-W50N	BS-W50P
Output Type	NPN	PNP
Type	cable type
Conrol Output	1 output port, buit in short ciruit protection, and have automatic anti any interference function

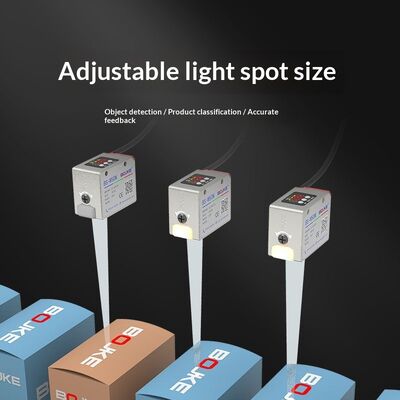

Light Source	white LED ,adjustable spot ,minium spot diameter 3.6MM
Response Time	AUTO,C mode and CI mode 200us, at MARK mode 160us
Output Option	LIGHT-ON/DARK-ON
Indicator	Operation indicator light: red infrared, LED display screen

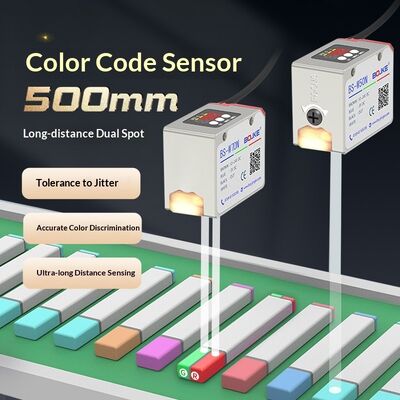

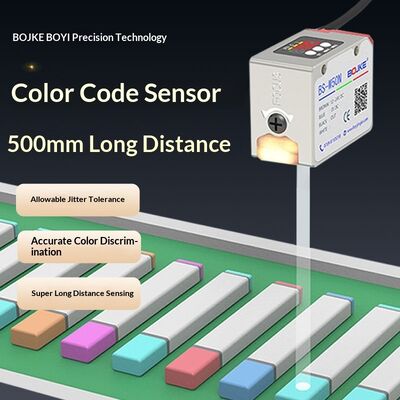

Detection Mode	AUTO,C mod, CI mod and MARK mode sensing distance: 30MM—500MM
Timer	OFF delay/ON delay/one-shot/ON one-shot timer optional,timer range(ms):1ms ~ 9999ms
Conrol Output	NPN open collector/PNP open collector 24V ,Maximum 100mA
	Max current consumption 40mA(when connect external, drop voltage:2V
Power Supply	12 ~ 24VDC±10%,ripple(P-P): ≤10％ class 2
Ambient Illuminace	Incandescent lamp: 20,000lux or less Sunlight:30,000lux or less
Consumption Power	Max Voltage:24V, Current within 60MA	Max Voltage: 24V,Current within 60MA
Vibration Resistance	10 ~ 55Hz ,double amplitude 1.5mm ,2 hours in each of the X,Y,Z directions
Ambient Temperature	- 10 ~ +55℃ , no freezing
