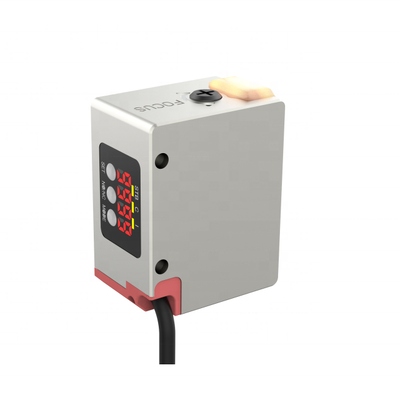

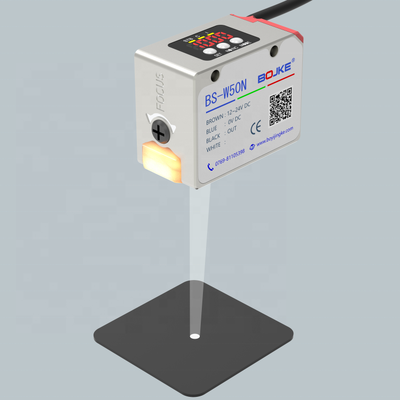

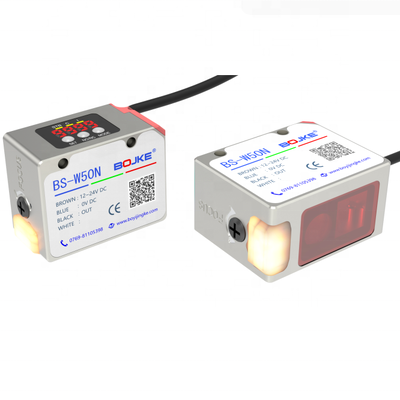

LR-W Series White Light Spot Digital Color Mark Sensor Self Contained Full Spectrum

Model

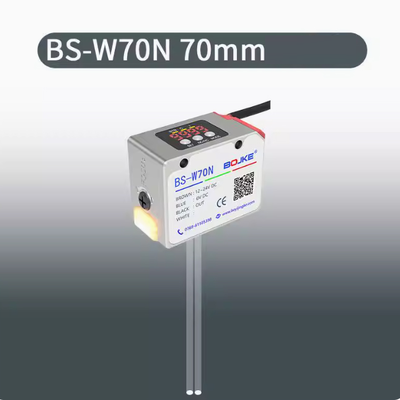

W70N

W70NP

NPN output

PNP output

Type

1 output port,cable type,White line external self-learning

Output control

1 output port, with short circuit protection and automatic anti-interference function

Light source

2 white LED ,min spot is 1.5*3mm when distance 50mm

Response time

When at AUTO,C and CI mode, 200US, at MARK mode is 160US.

Output option

LIGHT-ON/DARK-ON

Display indicator

Indicator:Red LED,LED display screen

Detection Mode

AUTO,C , CI mode and MARK mode

Sensing distance:20MM—150MM

Timer

OFF delay/ON delay/one shot timer/ON delay one shot optional. Time range: 1ms ~ 9999ms

Output control

NPN/PNP open collector 24V, Max 100mA (only main components)

Current consumption 40mA or less remaining voltage:2V(When connecting extension components)

Light source

12 ~ 24VDC±10%, ripple(P-P) 10％ or less, class 2

Ambient Illuminance

Incandescent: 20,000lux or less,               Sunlight:30,000lux or less

Power Consumption

 Max voltage:24V,Current:60MA or less

Max voltage:24V,Current:60MA or less

Vibration resistance

10 ~55Hz,dual amplitude:1.5mm,X,Y,Z direction each 2 hours

Ambient temperature

-10~ +55℃, no freezing
