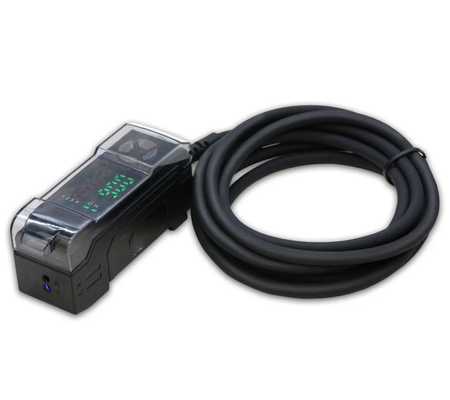

High Speed Optical Color Mark Sensor For Color Detection Identification Different Colors

High Speed Optical Color Mark Sensor For Color Detection Identification Different Colors
High Speed Optical Color Mark Sensor For Color Detection Identification Different Colors High Speed Optical Color Mark Sensor For Color Detection Identification Different Colors High Speed Optical Color Mark Sensor For Color Detection Identification Different Colors High Speed Optical Color Mark Sensor For Color Detection Identification Different Colors High Speed Optical Color Mark Sensor For Color Detection Identification Different Colors High Speed Optical Color Mark Sensor For Color Detection Identification Different Colors

Large Image :  High Speed Optical Color Mark Sensor For Color Detection Identification Different Colors

Product Details:
Place of Origin: Guangdong, China
Brand Name: BOJKE
Certification: CE
Model Number: BS-401
Document: BS-401、BS-801 User Manual...l.docx
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $65
Packaging Details: kraft box with carton box;
Delivery Time: 5~8 work days
Payment Terms: T/T
Supply Ability: 150k
Contact Now Chat Now

High Speed Optical Color Mark Sensor For Color Detection Identification Different Colors

Description
Supply Power: 12~24V DC Usage: Color Recognition
Theory: Optical Sensing Output: NPN/PNP
Detection Distance: 18 ~ 28mm Warranty: 1 Year
Protection: IP 65 Connection: 2m Cable
Highlight:

High Speed Color Mark Sensor

,

Optical Color Mark Sensor

,

Optical Colour Mark Sensor

High-Speed Optical Color Mark Sensor For Color Detection Identification Different Colors



Product Description
Product Name
 Color Mark Sensor
Material
PBT and PC
Function
color detection and color recognition
Package
kraft box
  •

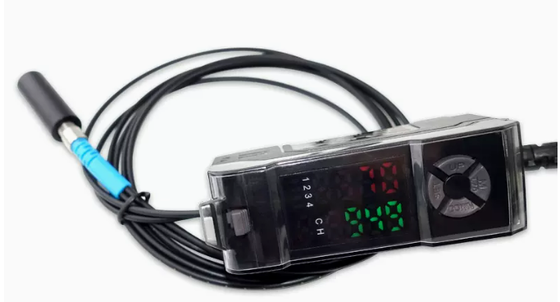

High Speed Optical Color Mark Sensor For Color Detection Identification Different Colors 1






Model # BS-401
Output mode: NPN open collector model, 1 channels output
Detection distance: 18~28 mm
Supply Voltage: 12~24 DC ± 10%
 Consumption(no-load) current  ≤ 20mA
Light source: red/green/blue  4-element LED
Detection mode mark mode and color mode switchable
Response time:  < 130μs
Response frequency: 1000Hz
Input current:   < 100mA
Residue voltage:   <1.0V
Switch mode   L. On (light input operation)/D. on (shading operation) can be switched
Ambient illumination:   incandescent lamp ≤3000Lux   sunlight ≤10,000Lux
Ambient temperature  operation:-10℃~ 55℃ , storage:-25℃~ 75℃ No freezing
Ambient humidity:   operation:35%~85% RH,  storage:35%~95% RH ,No coagulating
Circuit protection reverse polarity protection, short circuit protection, surge protection.
Protection degree: IP 65
Connection cable:  2 meter/3 core cable
Housing material: ABS+PC
Withstand voltage AC 500V, 50/60Hz, 1 min.
Vibrate resistance: 10-55Hz, complex amplitude 1.5mm, X.Y.Z direction each 2 times
Impact resistance: 500m/s²,X,Y,Z direction each 10 times.
Insulation impedance  >20MΩ (DC 500V megger)



FAQ
Q : What is the MOQ?
A : 1pcs for our own available designs
Q : Can I customize a special sensor?
A : Sure
Q : Can I get a lower price if I order large quantities?
A : Yes, Cheaper prices with bigger quantities orders
Q : Can I get a sample?
A : Of course, but you need to pay the sample fee
Q : When will you ship my order?
A : 3 day shipping guarantee for stock item and within 15 days for non-stock items.
Q : How about the quality guarantee period ?
A : Our warranty period is one year since from shipping date.
Q : Can I add or delete items from my order if I change mind?
A : Yes, but you need to tell us asap, if your order has been done in our production line, we cannot change it.
