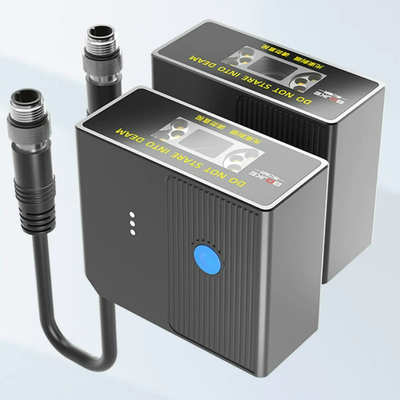

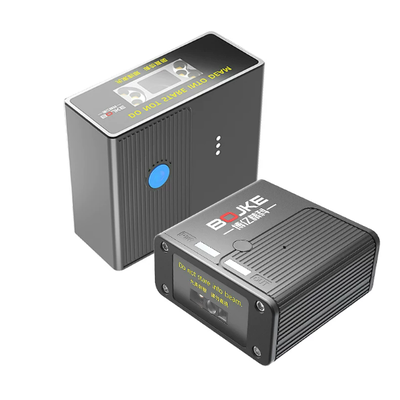

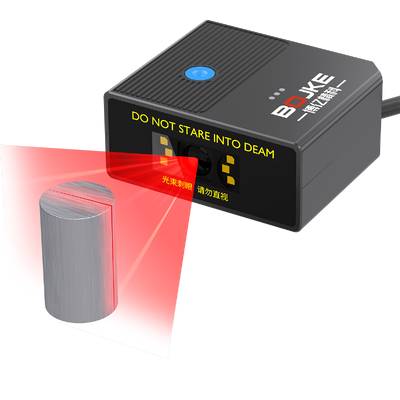

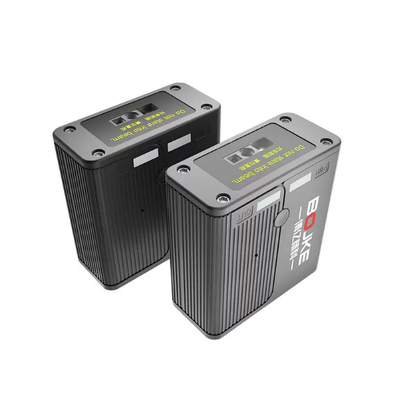

AF Type Compact Industrial Smart Camera Vision Sensor Machine Vision OCR Built In AI For Optics

AF Type Compact Industrial Smart Camera Vision Sensor Machine Vision OCR Built-In AI For Optics

• Product performance description

• * Adopts embedded hardware platform for high-speed image processing.
  * Adopts built-in positioning and measurement algorithms to detect object's existence, count patterns       and spots, etc.
  * Multiple IO interfaces for input and output signals.
  * Multiple indicators for displaying device status.
•
  * Adopts light source to ensure uniform brightness in the illuminated area.
  * Supports multiple communication protocols, including Serial Port, TCP, UDP, FTP, Profinet, Modbus,  Ethernet/IP, etc.

• Model	Product Model		BSCH1-80C-240
  	Type		800,000-pixel monochrome vision sensor
  Tool	Vision tool		Count: Pattern count, edge count, and spot count Existence: Circle existence, line existence, spot existence, edge existence, and pattern existence Location: Fixture Logic tool: Condition judge,logic judge, and calculator Measurement: L2L angle, diameter measurement, brightness average value measurement, width measurement, P2L measurement, greyscale size, line angle, and edge width measurement Recognition:  classification registration
  	Solution capacity		Supports solution importing and exporting, up to 8 solutions and 40 modules can be stored.
  	Communication protocol		RS-232, TCP, UDP, FTP, Profinet, Modbus, Ethernet/IP,FINS,MELSEC/SLMP, KEYENCE KV
  Camera	Sensor type		CMOS, global shutter
  	Pixel size		2.7 µm × 2.7 µm
  	Sensor size		1/4"
  	Resolution		1024 × 768
  	Max. frame rate		15 fps
  	Dynamic range		66 dB
  	SNR		40 dB
  	Gain		1 dB ~ 15 dB
  	Exposure time		60 μs ~ 7000μs
  	Pixel format		Mono 8
  	Mono/color		Mono
  Electrical feature	Data interface		Fast Ethernet (100Mbit/s)
  	Digital I/O		The green terminal provides power, serial port, digital I/O, including  input signal  (IN0), output signal  (OUT0), and RS- 232× 1. Device trigger via pressing button supported.
  	Power supply		12 ~ 24 V DC
  	Max. power		3 W@12 VDC
  Mechanical	Lens mount		M5-mount
  	Focal length		4.9mm
  	Lens cap		Transparent lens cap
  	Light source		White LED lamp
  	Indicator		Power indicator (PWR),Result indicator OK/NG
  	Dimension		38 mm × 38 mm × 19 mm
  	Weight		Approx. 40 g (not include cable)
  	Ingress protection		IP54
  	Temperature		Working temperature: 0 °C ~ 50 °C (32 °F ~ 122 °F) Storage temperature: -30 °C ~ 70 °C (-22 °F ~ 158 °F)
  	Humidity		20% to 95% RH, non-condensing
  General	Client software		SCMVS
  	Certification		CE, KC

•
•
