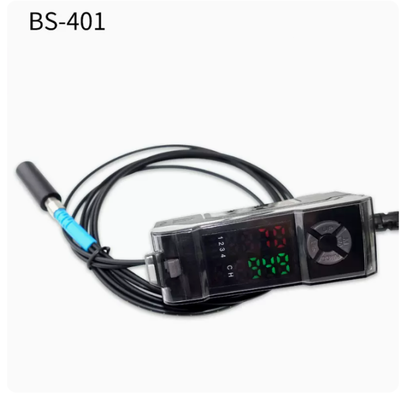

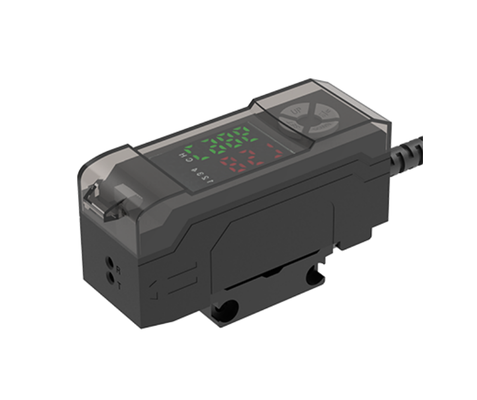

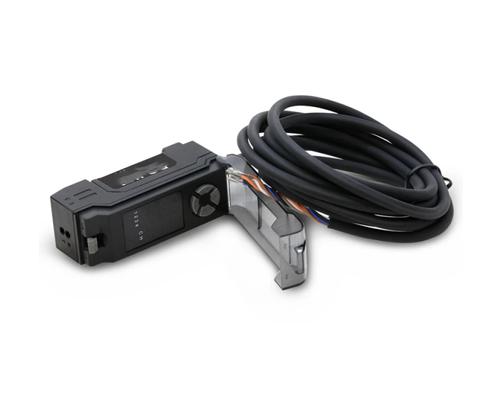

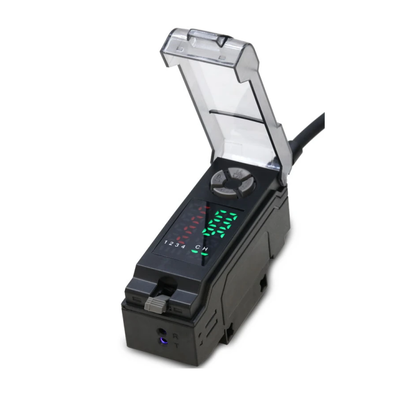

Identification 15 Difference Color Mark Sensor IP65 RGB 4 Channel Color Detection Sensor

Identification 15 Difference Color Mark Sensor IP65 RGB 4 Channel Color Detection Sensor
Identification 15 Difference Color Mark Sensor IP65 RGB 4 Channel Color Detection Sensor
Identification 15 Difference Color Mark Sensor IP65 RGB 4 Channel Color Detection Sensor Identification 15 Difference Color Mark Sensor IP65 RGB 4 Channel Color Detection Sensor Identification 15 Difference Color Mark Sensor IP65 RGB 4 Channel Color Detection Sensor Identification 15 Difference Color Mark Sensor IP65 RGB 4 Channel Color Detection Sensor Identification 15 Difference Color Mark Sensor IP65 RGB 4 Channel Color Detection Sensor Identification 15 Difference Color Mark Sensor IP65 RGB 4 Channel Color Detection Sensor

Large Image :  Identification 15 Difference Color Mark Sensor IP65 RGB 4 Channel Color Detection Sensor

Product Details:
Place of Origin: Dongguan China
Brand Name: BOJKE
Certification: CE
Model Number: BS-801
Document: BS-401、BS-801 User Manual...l.docx
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: $120
Packaging Details: kraft box with carton box;
Delivery Time: 5~8 work days
Payment Terms: T/T
Supply Ability: 150k
Contact Now Chat Now

Identification 15 Difference Color Mark Sensor IP65 RGB 4 Channel Color Detection Sensor

Description
Name: Color Mark Sensor Power Supply: DC 12~24V
Output: NPN Or 4 CPNP Channel Light Source: RGB 3 Color
Response Time: Less Than 130us Frequency: 1000Hz
Protection Level: IP65
Highlight:

Identification Color Mark Sensor

,

Color Mark Sensor IP65

,

4 Channel Color Detection Sensor

Identification 15 Difference Colors Mark Sensor RGB 4 Channel Detection Distinguishes Color Sensor





Product Name Color sensor
Material PBT case
Function color detection and recognition

Identification 15 Difference Color Mark Sensor IP65 RGB 4 Channel Color Detection Sensor 0

A color sensor is a sensor that can detect and recognize colors, widely used in fields such as industrial automation robotics and smart homes. It determines color by measuring the light reflected from the surface of an object and typically includes components such as a light source, a receiver, and a signal processing unit.

Model # BS-801
Output mode: NPN open collector model, 4 channels output
Detection distance: 18~28 mm
Supply Voltage: 12~24 DC ± 10%
 Consumption(no-load) current ≤ 20mA
Light source: red/green/blue  4-element LED
Detection mode mark mode and color mode switchable
Response time:  < 130μs
Response frequency: 1000Hz
Input current:   < 100mA
Residue voltage:   <1.0V
Switch mode   L. On (light input operation)/D. on (shading operation) can be switched
Ambient illumination:   incandescent lamp ≤3000Lux   sunlight ≤10,000Lux
Ambient temperature  operation:-10℃~ 55℃ , storage:-25℃~ 75℃ No freezing
Ambient humidity:   operation:35%~85% RH,  storage:35%~95% RH ,No coagulating
Circuit protection reverse polarity protection, short circuit protection, surge protection.
Protection degree: IP65
Connection cable:  2 meter/6 core cable
Housing material: PBT
Withstand voltage AC 500V, 50/60Hz, 1 min.
Vibrate resistance: 10-55Hz ,complex amplitude 1.5mm, X.Y.Z direction each 2 times
Impact resistance: 500m/s²,X,Y,Z direction each 10 times.
Insulation impedance  >20MΩ (DC 500V megger)
