M12 Stainless Steel Inductive Proximity Switch Sensor 4-8mm Range Detection For Iron Metal

M12 Stainless Steel Inductive Proximity Switch Sensor 4-8mm Range Detection For Iron Metal
M12 Stainless Steel Inductive Proximity Switch Sensor 4-8mm Range Detection For Iron Metal M12 Stainless Steel Inductive Proximity Switch Sensor 4-8mm Range Detection For Iron Metal M12 Stainless Steel Inductive Proximity Switch Sensor 4-8mm Range Detection For Iron Metal

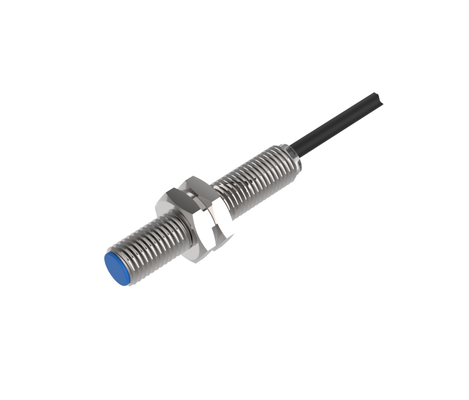

Large Image :  M12 Stainless Steel Inductive Proximity Switch Sensor 4-8mm Range Detection For Iron Metal

Product Details:
Place of Origin: Dongguan China
Brand Name: BOJKE
Certification: CE
Model Number: SR12 series
Document: M12 cable type-PNP.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: $3.8~4.6
Packaging Details: PP bag with carton box;
Delivery Time: 5~8 work days
Payment Terms: T/T
Supply Ability: 150k
Contact Now Chat Now

M12 Stainless Steel Inductive Proximity Switch Sensor 4-8mm Range Detection For Iron Metal

Description
Power Supply: DC 10~30V Wires: 3 Wires
Type: Flush And Non-flush Diameter: M12
Name: Inductive Proximity Switch Sensor
Highlight:

Stainless Steel Inductive Proximity Switch Sensor

,

M12 Proximity Sensor

,

M12 Inductive Proximity Sensor

M12 Stainless Steel Inductive Proximity Switch Sensor 4~8mm Range Detection For Iron Metal



Product Name Inductive proximity sensor
Material Sensing surface:PBT    Housing:stainless steel
Function Detection metal presence

M12 Stainless Steel Inductive Proximity Switch Sensor 4-8mm Range Detection For Iron Metal 0

Adopt non-contact position detection, no abrasion to the target, higher reliability; clearly visible indicator, easier to judge the working status; Φ3 to M30 dimensions, body length from ultra-short, short to long, extended long; Cable and connector connections are available; Adopt special IC for more stable performance; short circuit protection and polarity protection; capable of all kinds of limit and counting control, suitable for various industrial occasions such as high temperature, high pressure and wide voltage.



Model # NPN NO SR08-02NOF SR08-02NON SR08-04NON
NPN NC SR08-02NCF SR08-02NCN SR08-04NCN

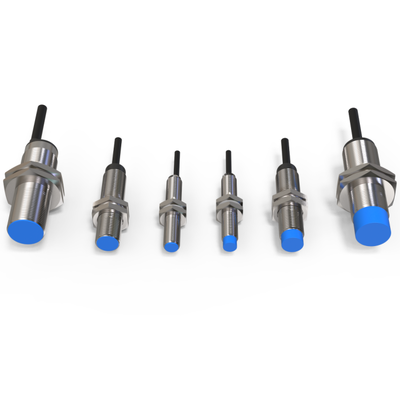

Product Picture
Mounting Type  Flush  Non flush
Size (mm) M8x42 M8x46
Sensing Range (mm) 2.0 2.0 4.0
Repeat Accuracy <3%(Sr)
Hysteresis (Tolerance Distance)  <15%(Sr)
Response Frequency(Hz) 1000 800
Operation Voltage  DC 10~30V ±10%
Residue Voltage (Voltage Drop)  <1.5V
Max Load Current  100mA
Consumption (no-load) Current  <10mA
Leakage Current <0.01mA
Ambient Temperature Operation:-25℃~75℃；Storage:-40℃~85℃,no freezing
Ambient Humidity 35%~85% RH, no condensation
Protection Circuit Polarity reversal protection/surge protection/short circuit protection
Protection Level  IP67
Material   Sensing surface:POM；Housing material:stainless steel (SUS303)
Withstand Voltage AC 1000V, 50/60Hz, 1分钟         AC 1000V, 50/60Hz, 1 minute
Vibration Resistance 10～55Hz,Dual amplitude 1.5mm, 30 min each in X/Y/Z direction
Impact Resistance  300m/S2, X,Y,Z direction each 3 times
Insulation impedance Above 50MΩ(DC 500VMegger)
Indicator   Detection object: Yellow
Connection 2 meters 3 core standard cable,can be customize
