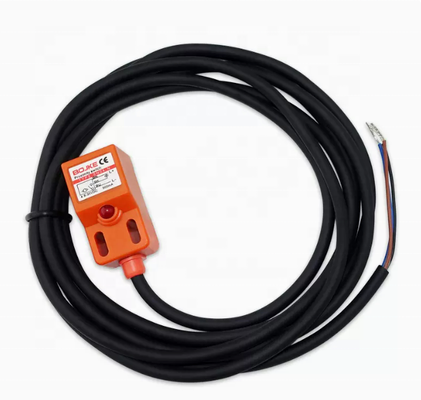

A proximity sensor is a non-contact sensor mainly used to detect the presence or approach of objects and convert it into an
electrical signal. It is widely used in industries, transportation, consumer electronics, and other fields.
electrical signal. It is widely used in industries, transportation, consumer electronics, and other fields.

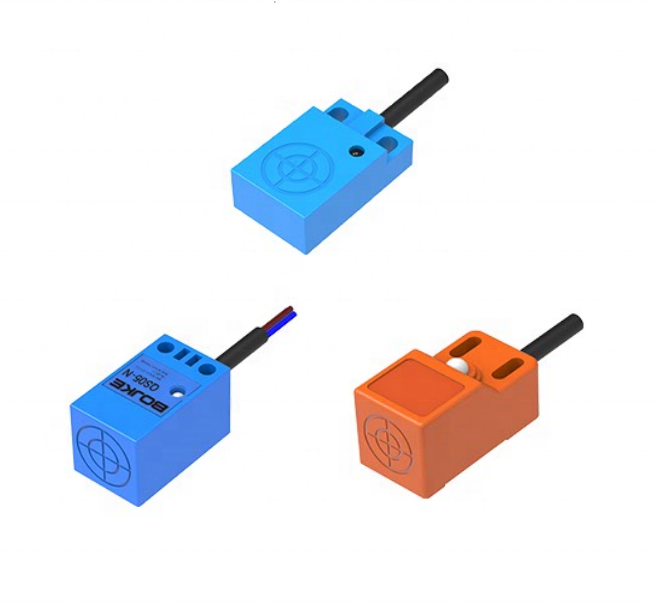

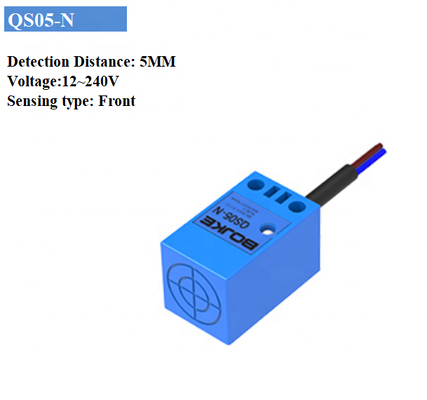

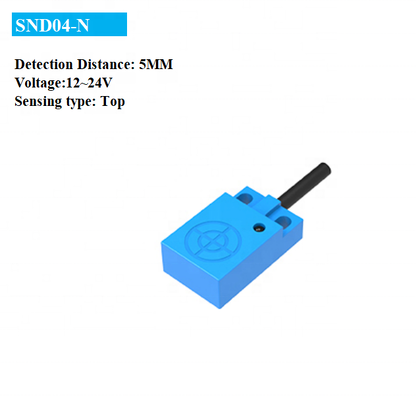

| Model No. | NPN NO | QS05-N | SN04-N | SND04-N |
| Mounting Type | flush | |||
| Size | 17x17x28 | 18x18x35 | 10x18x30 | |
| Sensing Range(mm) | 5.0 | 4.0 | 4.0 | |
| Repeat Accuracy | <3%(Sr) | |||
| Hysteresis (Tolerance Distance) | <20%(Sr) | |||
| Response Frequency | 500 | |||
| Operation Voltage | DC 10~30V ±10% | |||
| Residue Voltage (Voltage Drop) | <1.5V | |||
| Max Load Current | 100mA | |||
| Consumption (no-load) Current | <10mA | |||
| Leakage Current | <0.01mA | |||
| Ambient Temperature | Operation:-25℃~75℃；Storage:-40℃~85℃,no freezing | |||
| Ambient Humidity | 35%~85% RH, no condensation | |||
| Protection Circuit | Polarity reversal protection/surge protection/short circuit protection | |||
| Protection Level | IP67 | |||
| Material | PBT | |||
| Withstand Voltage | AC 1000V, 50/60Hz, 1 minute | |||
| Vibration Resistance | 10～55Hz,Dual amplitude 1.5mm, 2 hours each in X/Y/Z direction | |||
| Impact Resistance | 500m/S2, X,Y,Z direction each 10 times | |||
| Insulation impedance | Above 50MΩ(DC 500VMegger) | |||

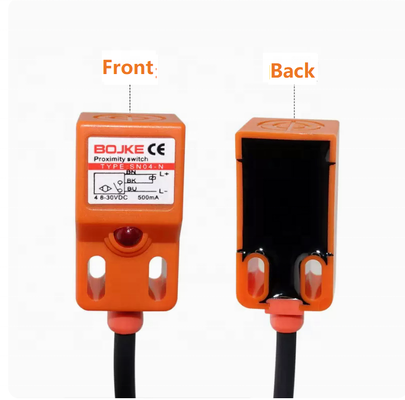

| Indicator | At detection object: Red | |||
| Connection | 2 meters 3 core standard cable, can be customize | |||
