M18 Inductive Proximity Sensor Stainless Steel Switch Proximity Sensor 5-12mm Sensing Range For Iron

M18 Inductive Proximity Sensor Stainless Steel Switch Proximity Sensor 5-12mm Sensing Range For Iron
M18 Inductive Proximity Sensor Stainless Steel Switch Proximity Sensor 5-12mm Sensing Range For Iron M18 Inductive Proximity Sensor Stainless Steel Switch Proximity Sensor 5-12mm Sensing Range For Iron M18 Inductive Proximity Sensor Stainless Steel Switch Proximity Sensor 5-12mm Sensing Range For Iron M18 Inductive Proximity Sensor Stainless Steel Switch Proximity Sensor 5-12mm Sensing Range For Iron

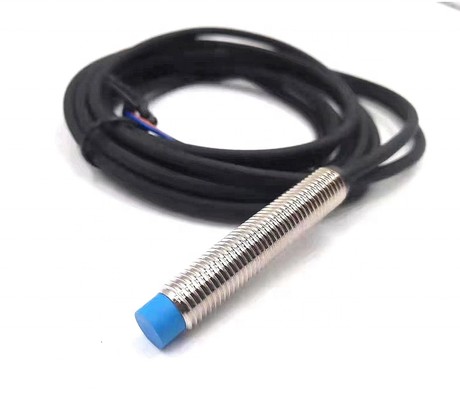

Large Image :  M18 Inductive Proximity Sensor Stainless Steel Switch Proximity Sensor 5-12mm Sensing Range For Iron

Product Details:
Place of Origin: Guangdong, China
Brand Name: BOJKE
Certification: CE
Payment & Shipping Terms:
Minimum Order Quantity: 2
Price: $9.48
Packaging Details: PP bag with carton box;
Delivery Time: 5~8 work days
Payment Terms: T/T
Supply Ability: 150k
Contact Now Chat Now

M18 Inductive Proximity Sensor Stainless Steel Switch Proximity Sensor 5-12mm Sensing Range For Iron

Description
Product Name: M18 Switch Proximity Sensor Mounting Type: Non-flush & Fulsh
Type: Inductive Sensor Proximity Switch Usage: Iron And Aluminum Detection
Output: NPN Normally Closed/Normally Open Diameter: M18
Housing Material: Stainless Steel Sensing Distance: 5mm ~ 12mm
Supply Voltage: 10~30 V DC Standard Cable: 2 Meter 3 Core
Highlight:

M18 Inductive Proximity Sensor

,

Stainless Steel Switch Proximity Sensor

,

M18 Switch Proximity Sensor

Product Description
Product Name
Proximity sensors



Material
Sensing surface: PBT  Housing Material: nickle copper alloy



Function
sensing aluminum, iron, and other metal



Package
pp bag with carton box







M18 Inductive Proximity Sensor Stainless Steel Switch Proximity Sensor 5-12mm Sensing Range For Iron 0
Type M18
Model No NPN NO SR18-05NOF SR18-08NOF SR18-08NON SR18-12NON
NPN NC SR18-05NCF SR18-08NCF SR18-08NCN SR18-12NCN
Mounting Type Flush Non flush
Size(mm) M18x44 M18x52
Sensing Range(mm) 5.0 8.0 8.0 12.0
Repeat Accuracy <3%(Sr)
Hysteresis <15%(Sr)
Response Frequency 1000 500 150
Operation Voltage DC 10~30V ±10%
Residue Voltage <2.0V
Max Load Current 200mA
Consumption (without-load) Current <10mA
Leakage Current <0.01mA
Ambient Temperature Operation temperature:-25℃~75℃；Storage temperature:-40℃~85℃,no freezing
Ambient Humidity 35%~85% RH, no condensation
Protection Circuit Polarity reversal protection/surge protection/short circuit protection
Protection Level IP67
Material Sensing surface: PBT；Housing material:Nickel-copper alloy
Withstand Voltage  AC 1000V, 50/60Hz, 1 minute
Vibration Resistance 10～55Hz,Dual amplitude 1.5mm, 2 hours each in X/Y/Z directions
Impact Resistance 500m/S2, X,Y,Z direction each 10 times
Insulation impedance Above 50MΩ(DC 500VMegger)
Indicator when detection object: LED yellow
Connection 2 meters 3 core standard cable,can be customize
