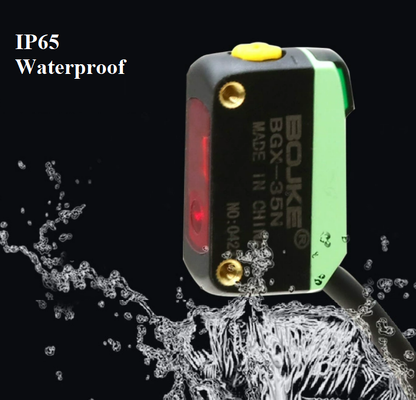

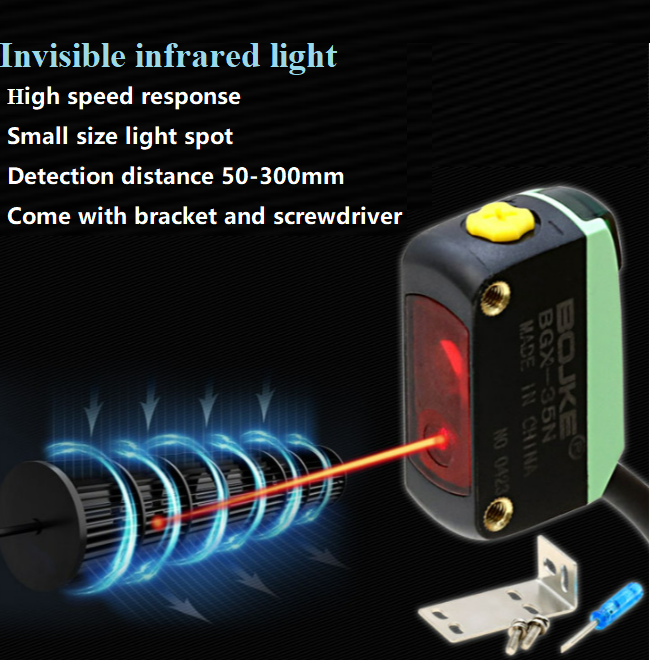

Diffuse reflective industrial photoelectric sensors Ir infrared photoelectric switch sensor

Large Image : Diffuse reflective industrial photoelectric sensors Ir infrared photoelectric switch sensor

Product Details:

Place of Origin:	China
Brand Name:	BOJKE
Certification:	CE
Model Number:	WRX-40N/WRX-40P
Document:	WRX-40N.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$6.4

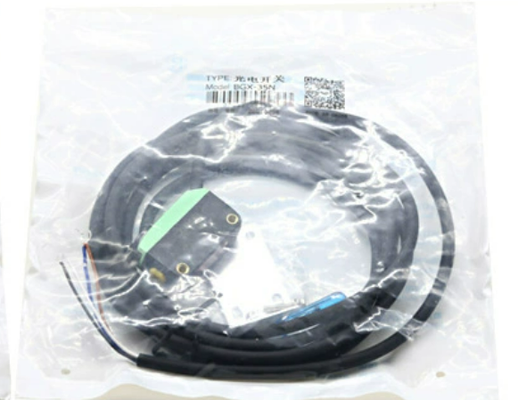

Packaging Details:	PP bag with carton box;
Delivery Time:	5~8
Payment Terms:	T/T
Supply Ability:	150k

Contact Now Chat Now

Diffuse reflective industrial photoelectric sensors Ir infrared photoelectric switch sensor

Description

Product Name:	Infrared Photoelectric Switch Sensor	Usage:	Sensing, Detection,Position
Sensing Range:	30~350mm	Light Source:	Infrared Light
Output:	NPN/PNP
Highlight:	diffuse reflective photoelectric sensors , industrial infrared photoelectric switch , photoelectric sensor with infrared detection

Product Name	Infrared Photoelectric Switch
Housing Material	PC
Function	Detection presence in industrial automation

Model	WRX-40N	WRX-40P
Sensing Direction	diffuse reflection
Detection Distance	30~350mm adjustable
Hysterisis Error Range	<20%
Standard detecton Object	above Ø10mm opaque objects
Repeat Accuracy	<5%
Sensitivity Adjustment	Single turn knob adjustment
Output Mode	NPN	PNP
Switch Mode	Light.on / Dark.on switchable
Response Time	<500㎲
Response Frequency	700Hz
Light Source	940nm infrared light
Operation Voltage	DC 12~24V ±10%
Residue Voltage	<1.5V
Max Load Current	100mA
Consumption Current	<15mA
Ambient Illumination	Incandescent lamp ≤ 3000Lux; Sunlight ≤ 10000Lux
Ambient Temperature	Operation:-10℃~55℃； Storage:-25℃~70℃,No freezing
Ambient Humidity	Operation:35%~85% RH；Storage:35%~95% RH,no condensation
Protection Circuit	Polarity reversal protection/surge protection/short circuit protection
Protection Level	IP66
Indicator	Red: black cable output Green: white cable output
Connection	4 pin, standard cable 2 meters
Housing Material	ABS
Withstand Voltage	AC 500V, 50/60Hz, 1 minute
Impact Resistance	10~55Hz, dual amplitude 1.5mm, 2 hours each in X/Y/Z direction
Impact Resistance	500m/S2, X,Y,Z direction each 3 times
Isulation Resistance	Above 20MΩ (DC 500V Megger)
