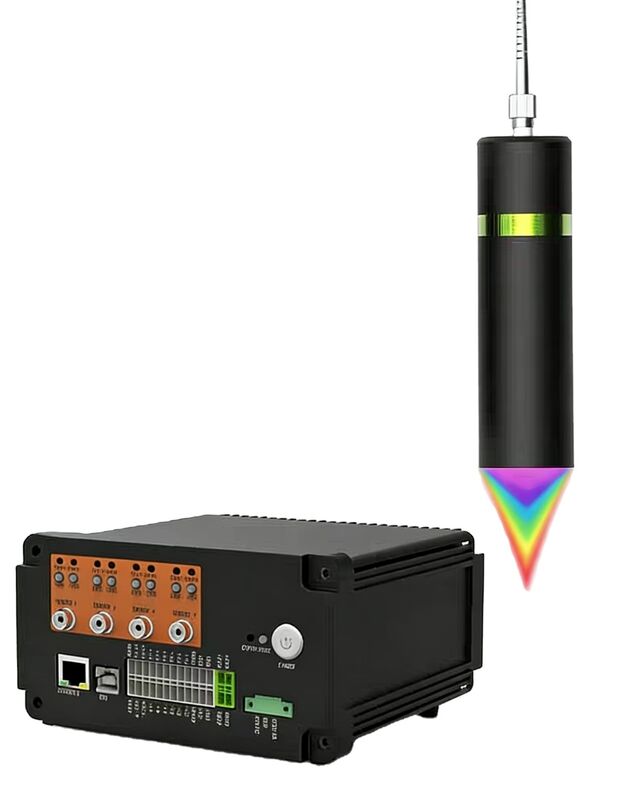

Transparent Object Spectral Confocal Displacement Sensor ABS Material

Transparent Object Spectral Confocal Displacement Sensor ABS Material
Transparent Object Spectral Confocal Displacement Sensor ABS Material Transparent Object Spectral Confocal Displacement Sensor ABS Material Transparent Object Spectral Confocal Displacement Sensor ABS Material Transparent Object Spectral Confocal Displacement Sensor ABS Material Transparent Object Spectral Confocal Displacement Sensor ABS Material

Large Image :  Transparent Object Spectral Confocal Displacement Sensor ABS Material

Product Details:
Place of Origin: Guangdong, China
Brand Name: BOJKE
Certification: CE
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $700~$3000
Packaging Details: PP bag with carton box;
Delivery Time: 5~8 work days
Payment Terms: T/T
Supply Ability: 150k
Contact Now Chat Now

Transparent Object Spectral Confocal Displacement Sensor ABS Material

Description
Product Name: Laser Displacement Sensor Type: Photoelectric Sensor
Usage: High Precision Small Spot Flatness Spacing Thickness Detection Theory: Confocal Principle
Output: Laser Displacement Sensor Voltage - Supply: 24 VDC ±10%
Highlight:

Spectral Confocal Displacement Sensor

,

Transparent Object Confocal Displacement Sensor

,

Confocal Displacement Sensor ABS Material

Transparent Object Spectral Confocal Displacement Sensor

Product Description



Product Name Displacement Sensor
Material ABS
Function Detection
Package Plastic box + inner box

Product performance description

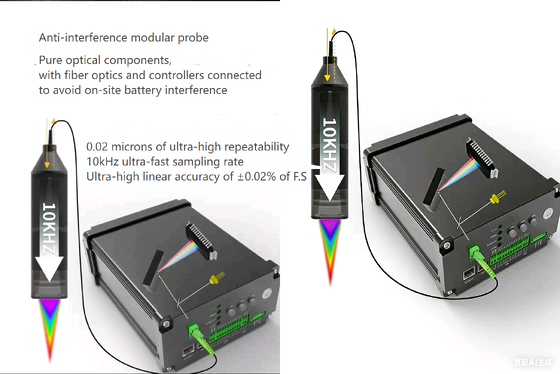

Spectral Confocal Displacement Sensor.   Nano-level measurement precision, minimal measurement blind zone, multi-layer transparent thickness measurement, strong anti-interference capability. Achieve high-precision measurement High-precision measurement capability suitable for any material.

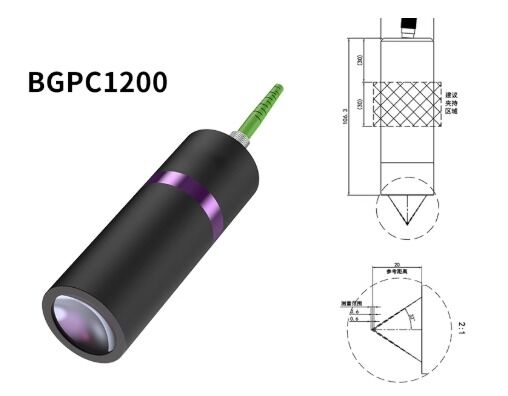

Model BGPD300 BGPD500 BGPD450 BGPD1500 BGPD2000 BGPD4000
Working distance 15mm 4mm 20mm 20mm 14mm 7mm
Measurement range ±0.325mm ±0.5mm ±0.45mm ±1.5mm ±2mm ±4mm
Measure the angle ±19° ±7° ±32° ±14° ±30° ±10°
Spot diameter Ø8μm Ø20μm Ø9.5μm Ø25μm Ø8μm Ø25μm
Measurement accuracy ±0.325μm ±0.5μm ±0.45μm ±1.5μm ±1μm ±2μm
Minimum measurable thickness 45um 50μm 90μm 50μm 200μm 500μm

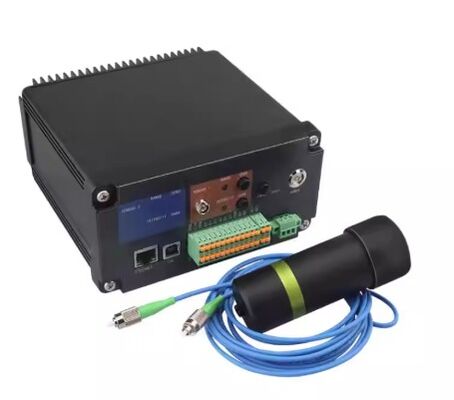

Model BGP-CCS BGP-CCD BGP-CCF BGP-CCH
Number of connectable sensor heads 1 2 4 4,8,16
Sampling frequency Single-channel mode: Max. 10kHz;
 Dual-channel mode: Max. 5 kHz;
 Four-channel mode: Max. 2.5kHz		 Single-channel mode: Max. 20kHz;
 Dual channel: Max. 18kHz;
 Four-channel mode: Max. 12.5kHz;
 Eight channels: Max. 8kHz;
 16 channels, maximum 4kHz
 (The above is a preliminary assessment result for reference only.)
Input port Encoder input AB/ABZ encoder input, configurable for triggering
Trigger signal input Pulse/Level Trigger
output port Digital signal output Alarm output, comparator output (configurable as comparator output or data invalid warning)
Analog signal input Linear ±10V analog voltage output / 4-20mA analog current output (optional module)
Industry interface Ethernet interface 100BASE-TX 1000/100Mbps
USB interface Complies with USB 2.0 Full-speed standard USB2.0 High-speed(480Mbps)
RS485 interface Modbus protocol, 19200~115200 baud rate
EtherCAT interface   Optional
Measurement and Control Software Host computer software Studio Measurement and Control Software
Secondary Development Package C++ and C# Software Development Kits
Rated power supply voltage 24 VDC±10%
Current consumption about 0.4A about 0.5A(When only one channel is enabled),about 4A(When 16 channels are enabled)
It is recommended to configure a power supply of 24V 6A or higher
Environmental tolerance Operating temperature 0~+50℃
Relative humidity 20~85%RH(No condensation)
Weight about 2000g about 2800g(Number of video channels and configuration changes)
