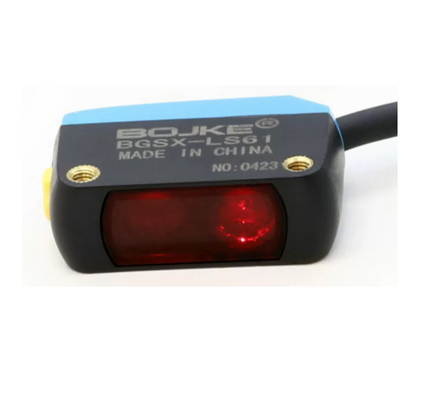

Background Suppression Photoelectric Sensor Switch For Position Measurement / Adjustment

Background Suppression Photoelectric Sensor Switch For Position Measurement / Adjustment
Background Suppression Photoelectric Sensor Switch For Position Measurement / Adjustment Background Suppression Photoelectric Sensor Switch For Position Measurement / Adjustment Background Suppression Photoelectric Sensor Switch For Position Measurement / Adjustment Background Suppression Photoelectric Sensor Switch For Position Measurement / Adjustment Background Suppression Photoelectric Sensor Switch For Position Measurement / Adjustment Background Suppression Photoelectric Sensor Switch For Position Measurement / Adjustment

Large Image :  Background Suppression Photoelectric Sensor Switch For Position Measurement / Adjustment

Product Details:
Place of Origin: Guangdong, China
Brand Name: BOJKE
Certification: CE
Model Number: BGSX-LS61/BGSX-LS61P
Document: BGSX-LS61.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $10.8~$11.8
Packaging Details: kraft paper box with carton box;
Delivery Time: 5~8 work days
Payment Terms: T/T
Supply Ability: 150k
Contact Now Chat Now

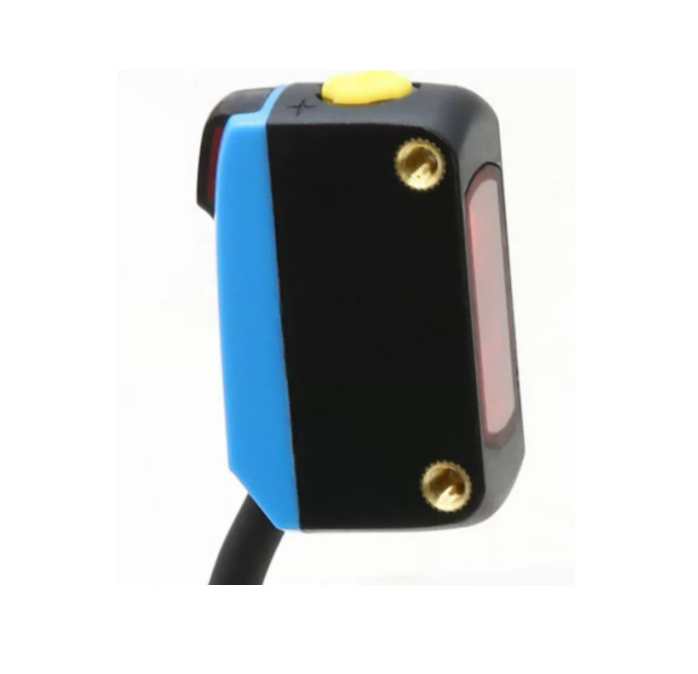

Background Suppression Photoelectric Sensor Switch For Position Measurement / Adjustment

Description
Product Name: Background Suppression Photoelectric Sensor Switch Description: BGS Photoelectric Sensor, Photoelectric Sensor
Usage: Sensing And Detection Spot Size: Ø5/200mm
Sensing Range: 30~400mm Size: 22 X 35.65 Mm
Output: NPN/PNP Power Supply: 12~24V
Highlight:

Background Suppression Photoelectric Sensor Switch

,

Background Suppression Photoelectric Switch

,

Background Suppression Photoelectric Sensor

BGS Photoelectric Sensor Photocell Photo Switch For Position Measurement And Adjustment





Product Description


Product Name Background suppression photoelectric sensor
Housing Material PBT
Function Sensing presence and position
Package PP bag with carton box








Background Suppression Photoelectric Sensor Switch For Position Measurement / Adjustment 0
Model  BGSX-LS61/BGSX-LS61P

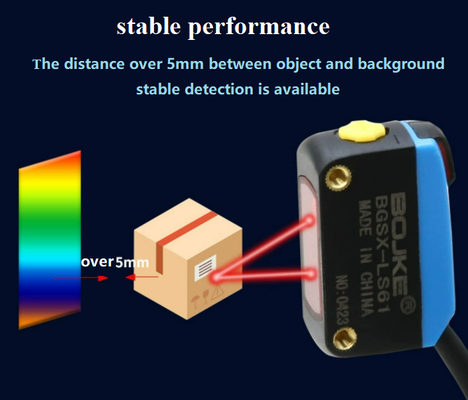

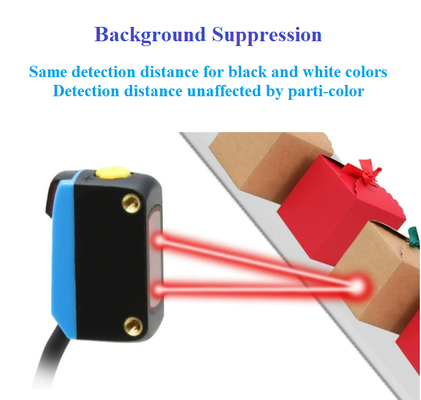

Detection Type diffuse reflection, background suppression (Not affected by the color of the detected object)
Detection Range 30~400mm adjustable
Light Spot Size Ø5/200mm
Tolerance <20%
Resolution Ratio  opaque objects
Repeat Accuracy    <5%

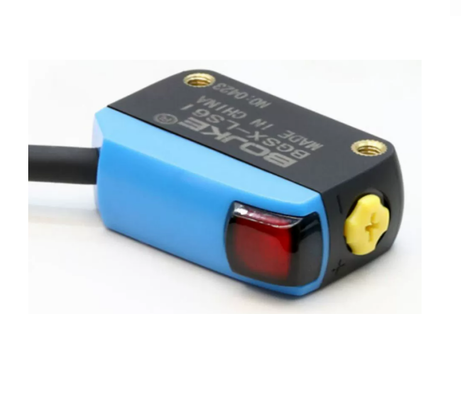

Sensitivity Adjustment  Multi turn knob adjustment
Output Mode PNP open collector
Mode  Light.on / Dark.on switchable
Response Time <500㎲
Response Frequency 700Hz
Light Source  650nm visible red light
Operation Voltage DC 12~24V ±10%
Residue Voltage   <1.5V (load current 100mA, 2 meter cable)
Max load current 100mA
Consumation current <15mA
Ambient Illumination   Incandescent lamp ≤ 3000Lux; Sunlight ≤ 10000Lux
Ambient Temperature    operation:-10℃~55℃；storage:-25℃~75℃,no freezing
Ambient Humidity  operation: 35%~85% RH；storage:35%~95% RH no condensation
Protection Circuit  polarity reversal protection/surge protection/short circuit protection
Protection Degree IP65
Indicatior Red: output by black cable
Green: output by white cable

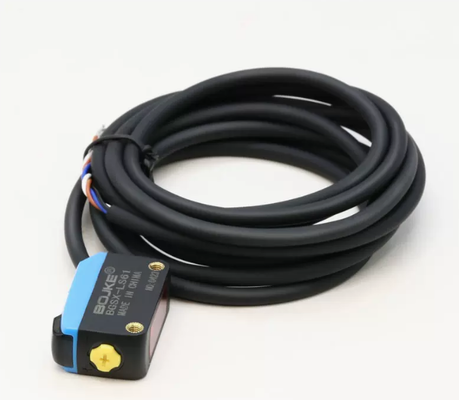

Connection  2 meter standard cable
Housing material ABS
Withstand Voltage   AC 500V, 50/60Hz, 1 minute
Vibration Resistance 10～55Hz, dual amplitude 1.5mm, X/Y/Z directions each 2 hours
Shock Resistance  500m/S2, X,Y,Z directions each 3 times
Insulation Impedance Above 20M Ω (DC 500V megohmmeter)
Background Suppression Photoelectric Sensor Switch For Position Measurement / Adjustment 1
Background Suppression Photoelectric Sensor Switch For Position Measurement / Adjustment 2



FAQ
Q : What is the MOQ?
A : 1pcs for our own available designs
Q : Can I customize a special sensor?
A : Sure
Q : Can I get a lower price if I order large quantities?
A : Yes, Cheaper prices with bigger quantities orders
Q : Can I get a sample?
A : Of course, but you need to pay the sample fee
Q : When will you ship my order?
A : 3 day shipping guarantee for stock item and within 15 days for non-stock items.
Q : How about the quality guarantee period ?
A : Our warranty period is one year since from shipping date.
Q : Can I add or delete items from my order if I change mind?
A : Yes, but you need to tell us asap, if your order has been done in our production line, we cannot change it.
