BOJKE Background Removal Photoelectric Switch Sensor BGS-500QC

BOJKE Background Removal Photoelectric Switch Sensor BGS-500QC
BOJKE Background Removal Photoelectric Switch Sensor BGS-500QC BOJKE Background Removal Photoelectric Switch Sensor BGS-500QC BOJKE Background Removal Photoelectric Switch Sensor BGS-500QC BOJKE Background Removal Photoelectric Switch Sensor BGS-500QC BOJKE Background Removal Photoelectric Switch Sensor BGS-500QC BOJKE Background Removal Photoelectric Switch Sensor BGS-500QC

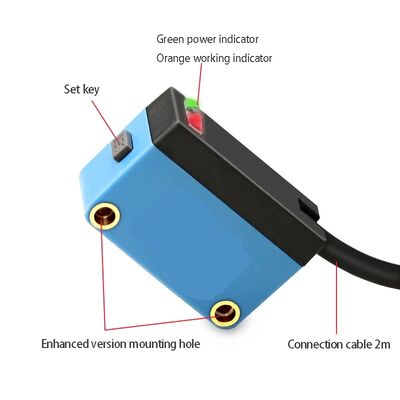

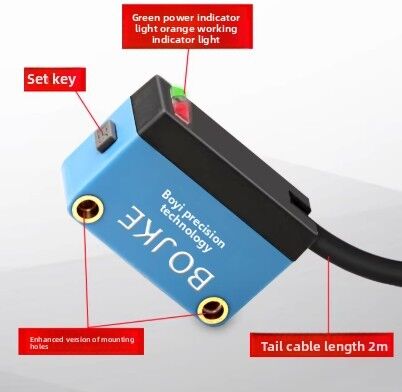

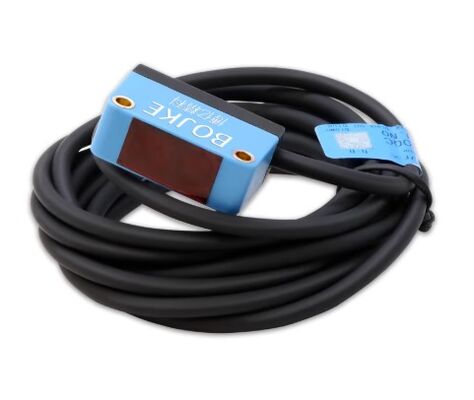

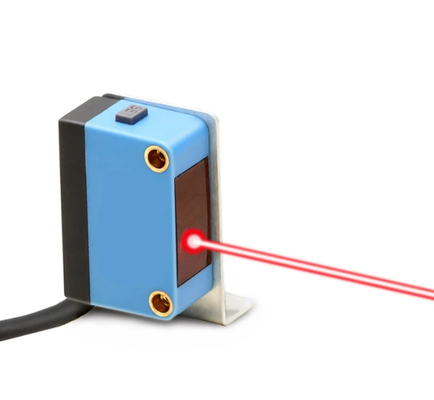

Large Image :  BOJKE Background Removal Photoelectric Switch Sensor BGS-500QC

Product Details:
Place of Origin: Guangdong, China
Brand Name: BOJKE
Payment & Shipping Terms:
Minimum Order Quantity: 1
Contact Now Chat Now

BOJKE Background Removal Photoelectric Switch Sensor BGS-500QC

Description
Features: Photoelectric Sensor Theory: Photoelectric Switch Sensor
Series: Background Removal Mounting Type: Manual Installation
Description: Switch Sensor Manufacturer Part Number: BGS-500QC
Type: Photoelectric Sensor Usage: Industry Automation
Output: NPN Response Time: <1ms
Voltage - Supply: DC 12~24V ±10% Manufacturing Date Code: 2023
Highlight:

Background Removal Photoelectric Switch Sensor

,

Photoelectric Switch Sensor BGS-500QC

,

BOJKE Photoelectric Switch Sensor

BOJKE Background Removal Photoelectric Switch Bgs-500qc

Product Description


Product Name Photoelectric Switch
Material PC+ABS
Function Detection
Package Plastic box + inner box

Product performance description

An optical sensor is a small electronic device that is a key component in various optical detection systems, enabling the conversion of light into electrical signals. It primarily uses the various properties of light to detect the presence or absence of objects and changes in their surface conditions.
BOJKE Background Removal Photoelectric Switch Sensor BGS-500QC 1
Model No BGS-500QC
Detection Type diffuse reflector, background subtraction
Detection Distance 20mm-500mm
Light Spot Size Ø10mm/30cm
Hysteresis Range <10%
Detection Object semi transparent or dark colored objects
Repeat Accuracy <5%
Sensitivity Adjustment   knob adjustment
Output Type  NPN open collector
Switching Mode Light.on
Response Time <1ms
Response Frequency 1KHz
Light Source 650nm visible red light
Working Voltage DC 12~24V ±10%
Residue Voltage (Voltage drop)  <3V
Max Load Current 100mA
Consumption (no-load) Current  <25mA
Ambient Illumination  Incandescent lamp ≤ 3000Lux; Sunlight ≤ 10000Lux
Ambient Temperature  operation temperature:-25℃~75℃；storage:-40℃~85℃,no freezing
Ambient Humidity  operation humidity: 5%~85% RH；storage:5%~95% RH no condensation
Protection Circuit polarity reversal protection/surge protection/short circuit protection
Protection Level IP65
Indicator Light Orange
Connection Type 3 core 2 meter standard cable
Housing Material PC+ABS
Withstand Voltage AC 500V, 50/60Hz, 1 minute
Vibration Resistance 10～55Hz, dual amplitude 1.5mm, X/Y/Z directions each 2 hours
Impact Resistance 500m/S2, X,Y,Z directions each 3 times
Insulation Impedance  Above 20M Ω (DC 500V megohmmeter)
