1mm Spot M3 M4 Through Beam Photoelectric Sensor Mini Small Diffuse Photoelectric Laser Sensor

1mm Spot M3 M4 Through Beam Photoelectric Sensor Mini Small Diffuse Photoelectric Laser Sensor
1mm Spot M3 M4 Through Beam Photoelectric Sensor Mini Small Diffuse Photoelectric Laser Sensor 1mm Spot M3 M4 Through Beam Photoelectric Sensor Mini Small Diffuse Photoelectric Laser Sensor 1mm Spot M3 M4 Through Beam Photoelectric Sensor Mini Small Diffuse Photoelectric Laser Sensor 1mm Spot M3 M4 Through Beam Photoelectric Sensor Mini Small Diffuse Photoelectric Laser Sensor 1mm Spot M3 M4 Through Beam Photoelectric Sensor Mini Small Diffuse Photoelectric Laser Sensor 1mm Spot M3 M4 Through Beam Photoelectric Sensor Mini Small Diffuse Photoelectric Laser Sensor

Large Image :  1mm Spot M3 M4 Through Beam Photoelectric Sensor Mini Small Diffuse Photoelectric Laser Sensor

Product Details:
Place of Origin: Guangdong, China
Brand Name: BOJKE
Certification: CE
Model Number: LR series
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $14.8
Packaging Details: kraft paper box with carton box;
Delivery Time: 5~8 work days
Payment Terms: T/T
Supply Ability: 150k
Contact Now Chat Now

1mm Spot M3 M4 Through Beam Photoelectric Sensor Mini Small Diffuse Photoelectric Laser Sensor

Description

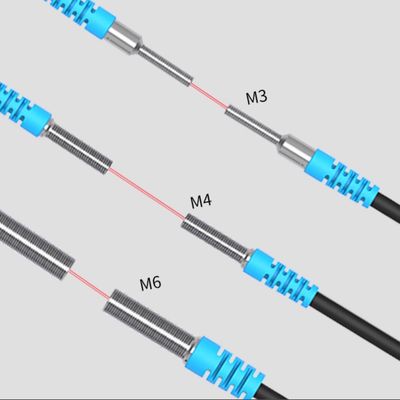

Features: Mini /small Product: Through Beam Photoelectric Sensor
Application: Industry Equipment Power Supply: 10~30 V DC
Light Source: 660nm Red Laser Sensing Range: 1~200mm
Light Spot: Φ2mm Output: NPN Or PNP
Highlight:

M3 Through Beam Photoelectric Sensor

,

M4 Through Beam Photoelectric Sensor

,

Diffuse Photoelectric Laser Sensor



BOJKE 1mm Spot M3 M4 Through Beam Mini Small Diffuse Photoelectric Laser Sensor





Product Description

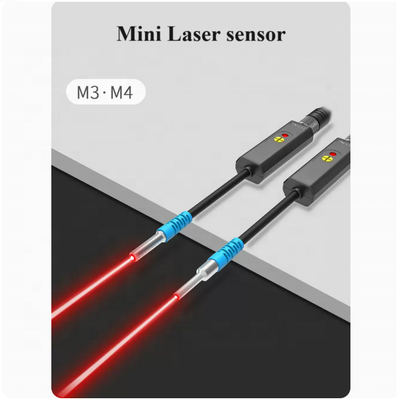

Product Name mini diffuse laser sensor
Material ABS+PC
Application industrial automation
Package polybag+kraft box







1mm Spot M3 M4 Through Beam Photoelectric Sensor Mini Small Diffuse Photoelectric Laser Sensor 0
Model LR03-05N LR04-05N        LR06-20N        LR08-20N
LR03-05P  LR04-05P LR06-20P LR08-20P
Adjustable range 10~50mm 10~60mm 20~200mm 20~200mm
Sensing range 1~50mm adjustable 1~60mm 1~200mm  1~200mm

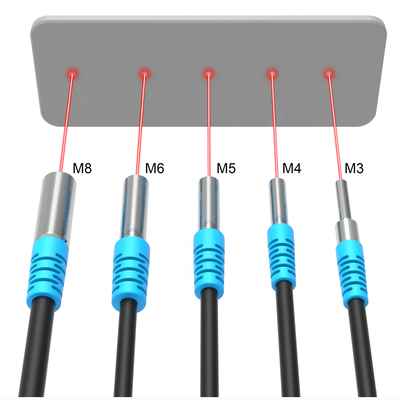

Laser head diameter M3 M4 M6 M8

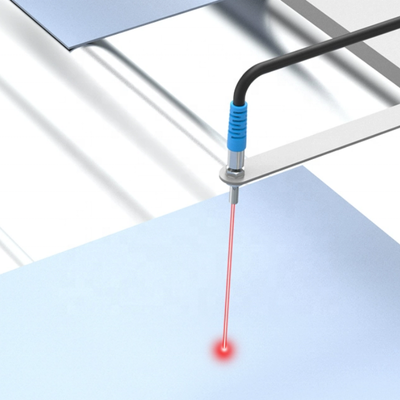

Detection method diffuse reflection,background supression (not affected by detected object color)
Light spot Φ2mm
Standard detected workpiece white standard plane
Repeat accuracy <5%

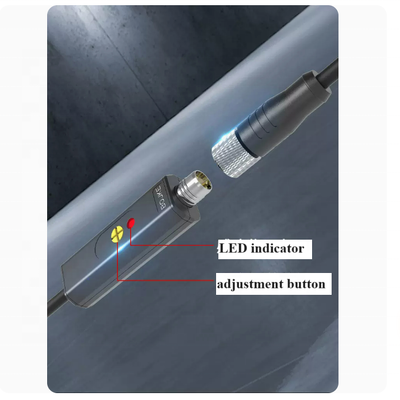

Sensitivity adjustment single turn knob adjustment
Output mode NPN open-collector PNP open-collector NPN open-collector PNP open-collector
Switch mode Light.on/Dark.on switchable
Reponse time <500μs
Response frequency 700Hz
Light source 660nm red laser
Operation voltage DC10~30V±10%
Residue voltage(voltage drop) <1.5V <2.0V
Max load current 100mA
Consumption (load)current <12mA
Ambient illuminace incandescent lamp≤3000Lux;sunlight≤10000Lux
Ambient temperature at operation: -10℃~55℃;at storage: -25℃~70℃,no freezing
Ambient humidity at operation:35%~85%RH; at storage:35%~95%Rh,No condensation
Protection circuit Polarity reversal protection/surge protection/short circuit protection
Protection degree IP54
Indicator Red

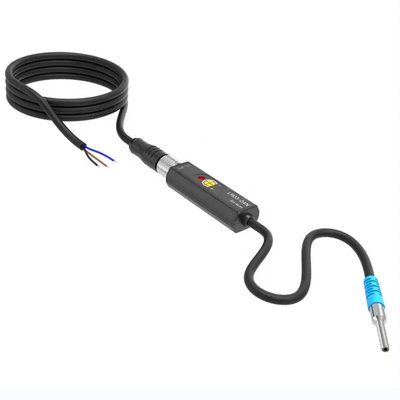

Connection type 4 core,M8 connector
Housing material ABS+PC
Vibration resistance 10～55Hz,double amplitude 1.0mm,X/Y/Z directions each 30 minute
Shock resistance 300m/S²,X/Y/Z directions each 3 times



Product performance description

1.light spot 1-2mm
2.easy to installation and use
3.sensing distance 40mm
4.high accuracy than fiber, and us use independent. no need with amplifier

FAQ
Q : What is the MOQ?
A : 1pcs for our own available designs
Q : Can I customize a special sensor?
A : Sure
Q : Can I get a lower price if I order large quantities?
A : Yes, Cheaper prices with bigger quantities orders
Q : Can I get a sample?
A : Of course, but you need to pay the sample fee
Q : When will you ship my order?
A : 3 day shipping guarantee for stock item and within 15 days for non-stock items.
Q : How about the quality guarantee period ?
A : Our warranty period is one year since from shipping date.
Q : Can I add or delete items from my order if I change mind?
A : Yes, but you need to tell us asap, if your order has been done in our production line, we cannot change it.
