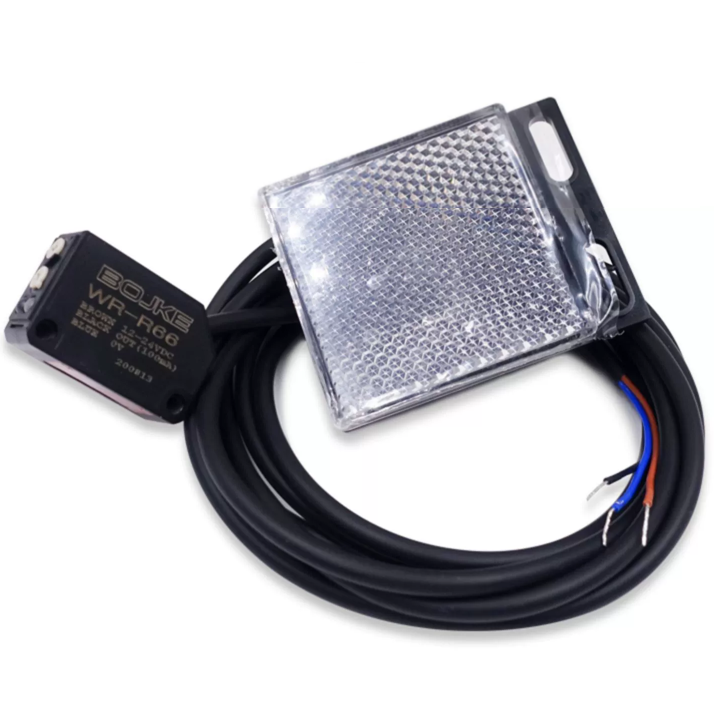

Square Retro Reflective Photoelectric Sensor NPN Output Fiber Optic Photoelectric Sensor

Square Retro Reflective Photoelectric Sensor NPN Output Fiber Optic Photoelectric Sensor
Square Retro Reflective Photoelectric Sensor NPN Output Fiber Optic Photoelectric Sensor Square Retro Reflective Photoelectric Sensor NPN Output Fiber Optic Photoelectric Sensor Square Retro Reflective Photoelectric Sensor NPN Output Fiber Optic Photoelectric Sensor Square Retro Reflective Photoelectric Sensor NPN Output Fiber Optic Photoelectric Sensor Square Retro Reflective Photoelectric Sensor NPN Output Fiber Optic Photoelectric Sensor Square Retro Reflective Photoelectric Sensor NPN Output Fiber Optic Photoelectric Sensor

Large Image :  Square Retro Reflective Photoelectric Sensor NPN Output Fiber Optic Photoelectric Sensor

Product Details:
Place of Origin: Guangdong, China
Brand Name: BOJKE
Certification: CE
Model Number: WR-R66
Document: WR-R66.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $14.8
Packaging Details: kraft paper box with carton box;
Delivery Time: 5~8 work days
Payment Terms: T/T
Supply Ability: 150k
Contact Now Chat Now

Square Retro Reflective Photoelectric Sensor NPN Output Fiber Optic Photoelectric Sensor

Description
Product Name: Retro Reflective Photoelectric Sensor Description: Photoelectric Sensor Diffuse Reflection, Diffuse Reflection Photoelectric Sensor
Usage: Sensing And Detection Transparent Object Output: NPN

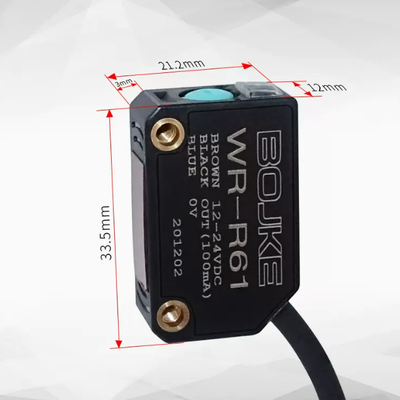

Size: 22 X 33.5mm Sensing Range: 50~1000mm
Highlight:

Retro Reflective Photoelectric Sensor

,

Fiber Optic Photoelectric Sensor

,

NPN Photoelectric Sensor

Square Retro Reflective Photoelectric Optic Sensors Retro-Reflective Photoelectric Sensor





Product Description

Product Name photoelectric sensor
Housing Material PC
Function detection transparent object
Package kraft box





Square Retro Reflective Photoelectric Sensor NPN Output Fiber Optic Photoelectric Sensor 0
Model No. WR-R66
Detection Type  Retro reflection, detection transparent object

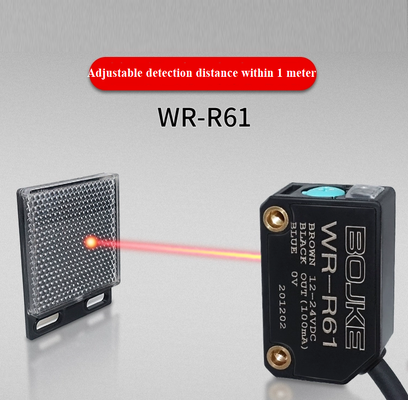

Detection Distance 5cm-100cm
Light Spot Size Ø15mm/100cm
Hysteresis Range <20%

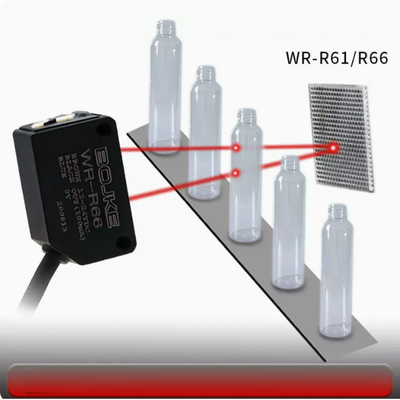

Detection Object Transparent object
Repeat Accuracy <5%

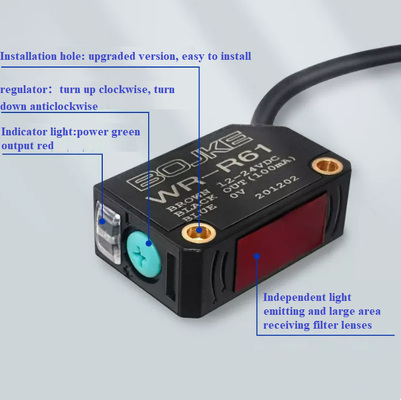

Sensitivity Adjustment  knob adjustment
Output Type NPN open collector
Switching Mode Light.on/ Dark.on switchable
Response Time <1ms
Response Frequency 1KHz
Light Source 700nm visible red light
Working Voltage DC 12~24V ±10%
Residue Voltage (Voltage drop) <3V
Max Load Current 100mA
Consumption (no-load) Current <25mA
Ambient Illumination  Incandescent lamp ≤ 3000Lux; Sunlight ≤ 10000Lux
Ambient Temperature operation:-10℃~55℃；storage:-25℃~70℃,no freezing
Ambient Humidity operation: 35%~85% RH；storage:35%~95% RH no condensation
Protection Circuit  polarity reversal protection/surge protection/short circuit protection
Protection Level IP65
Indicator Light Orange

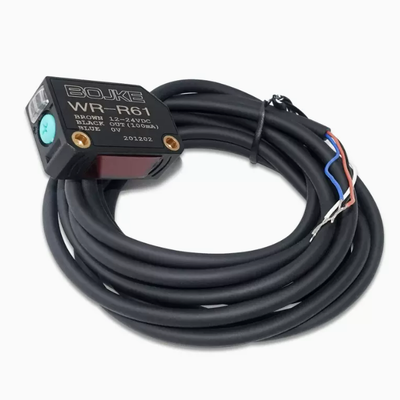

Connection Type 3 core, 2 meter standard cable
Housing Material ABS+PC
Withstand Voltage AC 500V, 50/60Hz, 1 minute
Vibration Resistance 10～55Hz, dual amplitude 1.5mm, X/Y/Z directions each 2 hours
Impact Resistance 500m/S2, X,Y,Z directions each 3 times
Insulation Impedance Above 20MΩ (DC 500V megohmmeter)



FAQ
Q : What is the MOQ?
A : 1pcs for our own available designs
Q : Can I customize a special sensor?
A : Sure
Q : Can I get a lower price if I order large quantities?
A : Yes, Cheaper prices with bigger quantities orders
Q : Can I get a sample?
A : Of course, but you need to pay the sample fee
Q : When will you ship my order?
A : 3 day shipping guarantee for stock item and within 15 days for non-stock items.
Q : How about the quality guarantee period ?
A : Our warranty period is one year since from shipping date.
Q : Can I add or delete items from my order if I change mind?
A : Yes, but you need to tell us asap, if your order has been done in our production line, we cannot change it.
