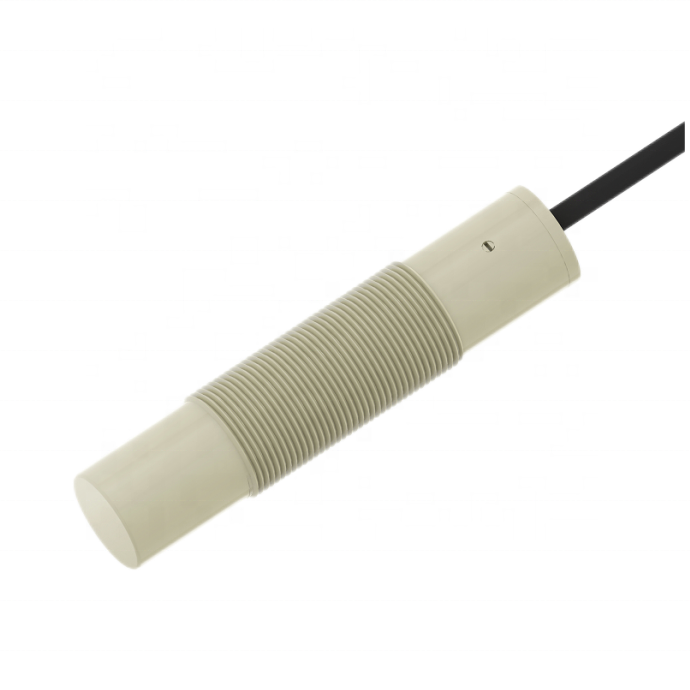

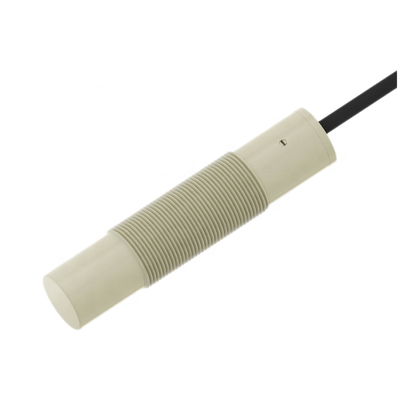

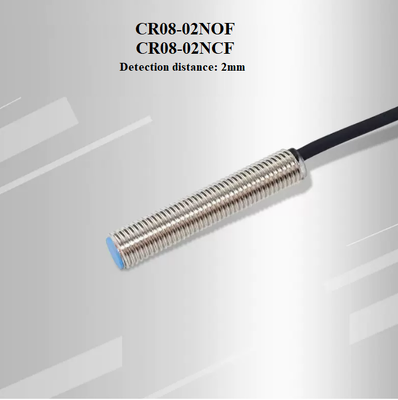

M18 M12 M8 Cylindrical Capacitive Proximity Switch For Detection Plastic Glass Fabric

M18 M12 M8 Cylindrical Capacitive Proximity Switch For Detection Plastic Glass Fabric
M18 M12 M8 Cylindrical Capacitive Proximity Switch For Detection Plastic Glass Fabric M18 M12 M8 Cylindrical Capacitive Proximity Switch For Detection Plastic Glass Fabric M18 M12 M8 Cylindrical Capacitive Proximity Switch For Detection Plastic Glass Fabric M18 M12 M8 Cylindrical Capacitive Proximity Switch For Detection Plastic Glass Fabric M18 M12 M8 Cylindrical Capacitive Proximity Switch For Detection Plastic Glass Fabric

Large Image :  M18 M12 M8 Cylindrical Capacitive Proximity Switch For Detection Plastic Glass Fabric

Product Details:
Place of Origin: Guangdong, China
Brand Name: BOJKE
Certification: CE
Model Number: CR series
Document: M18 CAPACITIVE proximity.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $10~$14.6
Packaging Details: kraft paper box with carton box;
Delivery Time: 5~8 work days
Payment Terms: T/T
Supply Ability: 150k
Contact Now Chat Now

M18 M12 M8 Cylindrical Capacitive Proximity Switch For Detection Plastic Glass Fabric

Description
Product Name: Capacitive Proximity Sensor Mounting Type: Non Flush
Description: High Sensitivity Sensor Usage: Detection Plastic Glass Fabric
Output: NPN Normally Closed/Normally Open Power Supply: 10~30v DC
Highlight:

M12 Capacitive Proximity Switch

,

M8 Capacitive Proximity Switch

,

Cylindrical Capacitive Proximity Switch

M18 M12 M8 Cylindrical Capacitive Proximity Switch Detection Plastic Glass Fabric


Product Description

Product Name Capacitive Sensor
Material stainless steel & PBT
Function Detection
Package Plastic box + inner box

M18 M12 M8 Cylindrical Capacitive Proximity Switch For Detection Plastic Glass Fabric 2

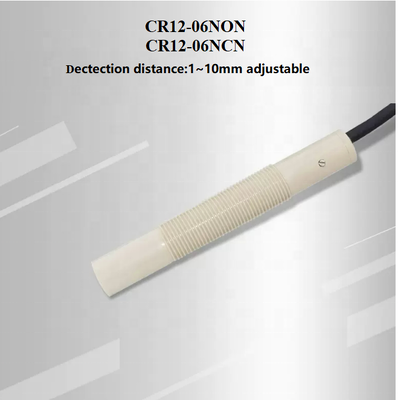

Model No NPN NO   CR12-08NON
NPN NC  CR12-08NCN
Product Picture
Mounting Type Unshielded
Sensing Range  8mm adjustable
Repeat Accuracy <5%(Sr)
Hysteresis (Tolerance Distance) <20%(Sr)
Standard sensing object iron 50 x 50 x 1 mm
Response Frequency 100Hz
Operation Voltage DC 12~24V ±10%
Residue Voltage (Voltage Drop) <1.5V
Max Load Current 200mA
Consumption (no-load) Current <15mA
Temperature Drift <15%
Ambient Temperature  Operation:-25℃~70℃；Storage:-30℃~80℃,no freezing
Ambient Humidity 35%~85% RH, no condensation
Protection Circuit polarity reversal protection/surge protection/short circuit protection
Protection Level IP65
Material sensing surface/case: ABS
Vibration Resistance 10～55Hz,,dual amplitude 1.0mm, 30 minunts each in X/Y/Z directions
Impact Resistance 300m/S2, X,Y,Z direction each 3 times

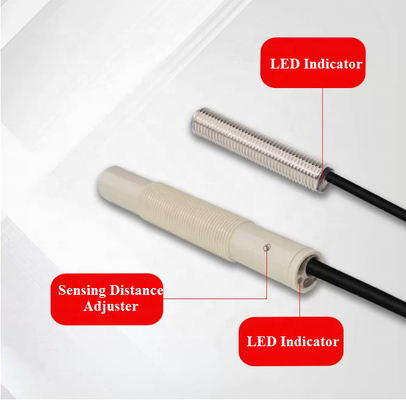

Indicator Light  when detection object: Yellow

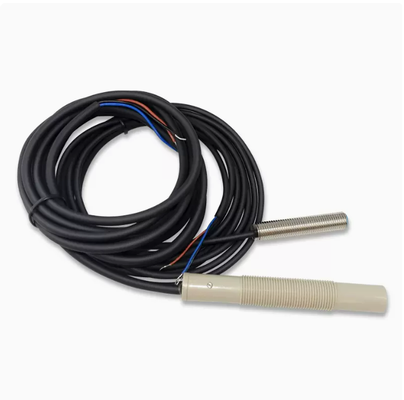

Connection Type  2 meter 3-wire standard cable, length can be customized



Model No PNP/NPN NO   CR18-15NON
PNP/NPN NC  CR18-15NCN
Mounting Type Unshielded
Sensing Range  2~8mm adjustable
Repeat Accuracy <5%(Sr)
Hysteresis (Tolerance Distance) <20%(Sr)
Response Frequency 100Hz
Operation Voltage DC 10~30V ±10%
Residue Voltage (Voltage Drop) <1.5V
Max Load Current 200mA
Consumption (no-load) Current <15mA
Temperature Drift <15%
Ambient Temperature  Operation:-25℃~70℃；Storage:-40℃~85℃,no freezing
Ambient Humidity 35%~85% RH, no condensation
Protection Circuit polarity reversal protection/surge protection/short circuit protection
Protection Level IP65
Material sensing surface/case: PBT
Vibration Resistance 10～55Hz,,dual amplitude 1.0mm, 30 minunts each in X/Y/Z directions
Impact Resistance 300m/S2, X,Y,Z direction each 3 times
Indicator Light  when detection object: Yellow
Connection Type  2 meter 3-core standard cable, length can be customized
