PNP Capacitive Sensor , IP66 Precise Capacitive Liquid Level Sensor

PNP Capacitive Sensor , IP66 Precise Capacitive Liquid Level Sensor
PNP Capacitive Sensor , IP66 Precise Capacitive Liquid Level Sensor PNP Capacitive Sensor , IP66 Precise Capacitive Liquid Level Sensor PNP Capacitive Sensor , IP66 Precise Capacitive Liquid Level Sensor PNP Capacitive Sensor , IP66 Precise Capacitive Liquid Level Sensor

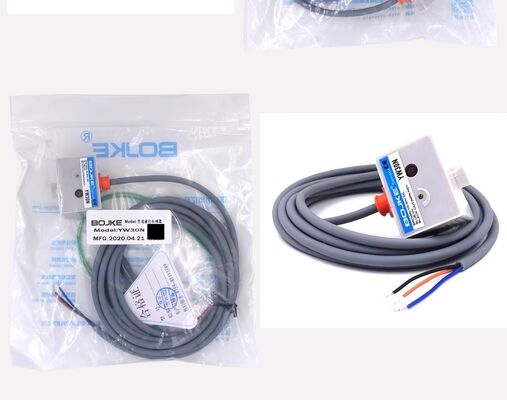

Large Image :  PNP Capacitive Sensor , IP66 Precise Capacitive Liquid Level Sensor

Product Details:
Place of Origin: Guangdong, China
Brand Name: BOJKE
Certification: CE

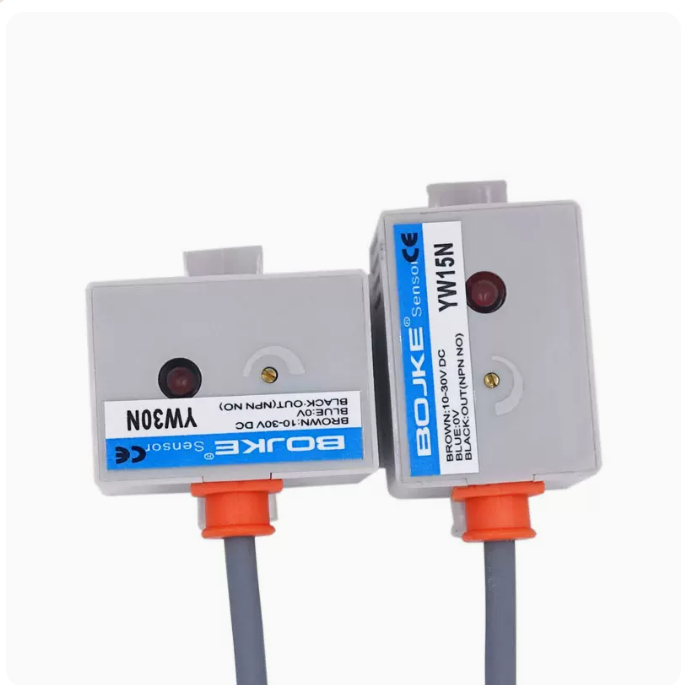

Model Number: YW15N/YW30N
Document: liquid level sensor-1.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $24
Packaging Details: kraft paper box with carton box;
Delivery Time: 5~8 work days
Payment Terms: T/T
Supply Ability: 150k
Contact Now Chat Now

PNP Capacitive Sensor , IP66 Precise Capacitive Liquid Level Sensor

Description
Features: Applicable Piple Outerdiameter: Within 0~15mm Product Name: Liquid Level Sensing Precision
Description: Precise Liquid Level Measurement Sensor Theory: Capacitive Detection Principle
Output: NPN Output Voltage - Supply: 10-30V
Highlight:

PNP Capacitive Sensor

,

Precise Capacitive Liquid Level Sensor

,

IP66 Capacitive Liquid Level Sensor

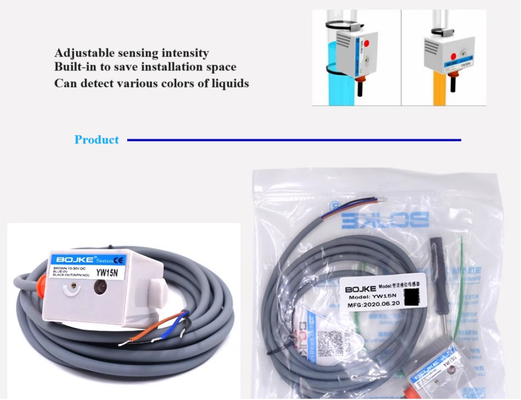

Liquid Level Sensor Nonmetal Economical Durable Strong Adaptability Capacitive

Product Description

Product Name Liquid Level Sensor
Material ABS
Function Liquid level detection control
Package Plastic box + inner box
PNP Capacitive Sensor , IP66 Precise Capacitive Liquid Level Sensor 0
Suitable Pipe Material non-metal
Outer Diameter Ø6~Ø13mm Ø14~Ø26mm
Pipe Wall Thickness <1.5mm <2mm
Detectable Objects liquid
Repeat Accuracy <0.2mm

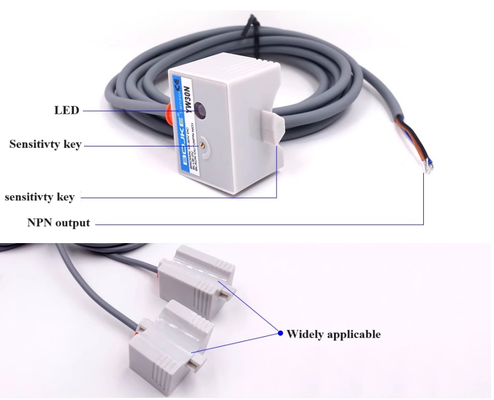

Sensitivity Adjustment knob adjustment
Response Frequecy 20Hz
Output Mode NPN open collector
Switch Mode  Normal open
Working Voltage DC 10~30V ±10%
Residual Voltage (Voltage Drop) <1V
Consumption (no-load) Current <12mA
Ambient Temperature working temperature:-10℃~55℃；storage temperature:-25℃~70℃,no freezing
Ambient Humidity  working humidity:35%~85% RH；storage humidity:35%~95% RH,no condensation
Protection Circuit  polarity reversal protection/surge protection/ short circuit protection
Protection Level IP66
Indicator operation indicator light: Red light
Connection Type cable-type (3 core, 2 meter standard cable)
Housing Material ABS
Withstand Voltage AC 500V, 50/60Hz, 1分钟  AC 500V, 50/60Hz, 1 minute
Vibration Resistance 10～55Hz, dual amplitude 1.5mm, X/Y/Z directions each 2 hours
Impact Resistance  500m/S2, X,Y,Z directions each 3 times
Insulation resistance above 20MΩ (DC 500V megohmmeter)


Tag:

Capacitive Proximity Sensor,

Capacitive Liquid Level Sensor,

PNP Capacitive Sensor
