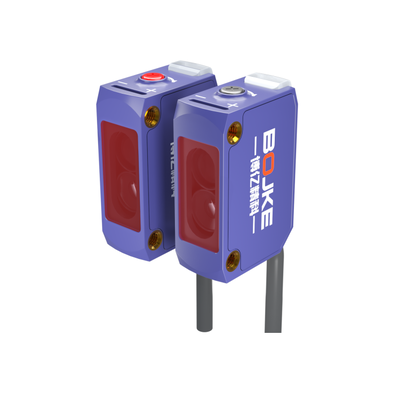

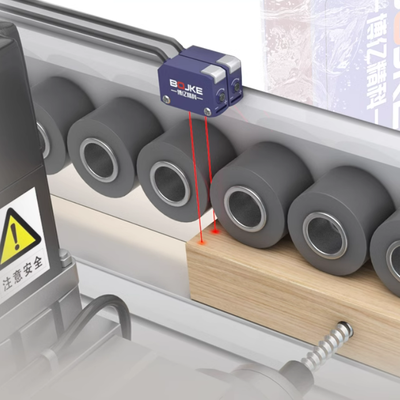

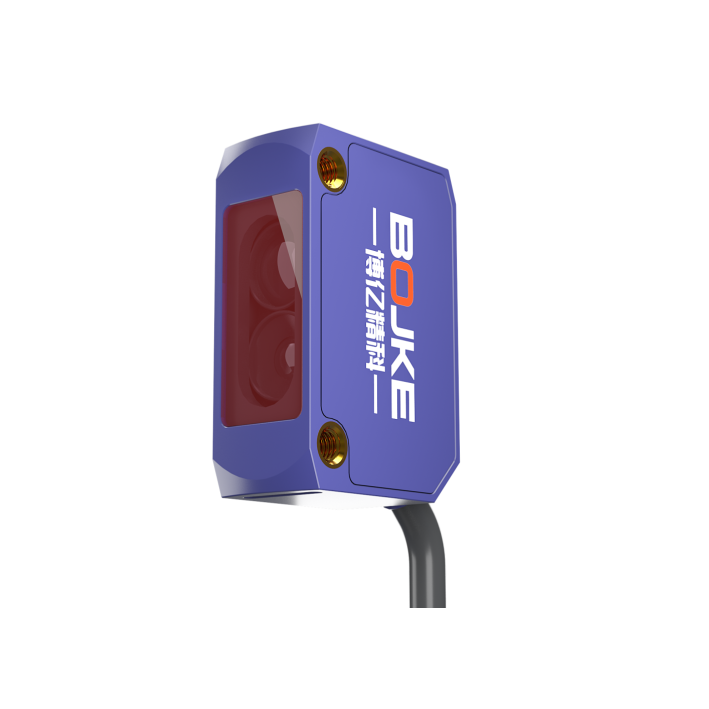

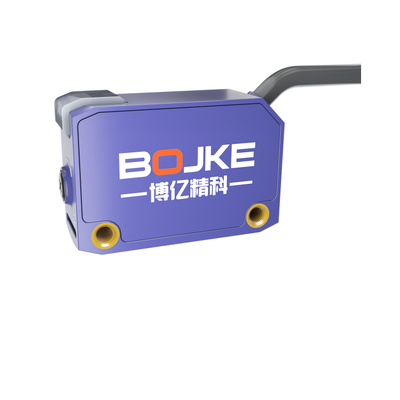

Laser Background Suppression Diffused Photoelectric Sensor NPN Output

Laser Background Suppression Diffused Photoelectric Sensor NPN Output
Laser Background Suppression Diffused Photoelectric Sensor NPN Output Laser Background Suppression Diffused Photoelectric Sensor NPN Output Laser Background Suppression Diffused Photoelectric Sensor NPN Output Laser Background Suppression Diffused Photoelectric Sensor NPN Output

Large Image :  Laser Background Suppression Diffused Photoelectric Sensor NPN Output

Product Details:
Place of Origin: Guangdong, China
Brand Name: BOJKE
Certification: CE
Model Number: DG-10N/DG-30N/LG-30NK
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $12.5~$22.5
Packaging Details: PP bag with carton box;
Delivery Time: 5~8 work days
Payment Terms: T/T
Supply Ability: 150k
Contact Now Chat Now

Laser Background Suppression Diffused Photoelectric Sensor NPN Output

Description
Series: Diffused Photoelectric Sensor Usage: Sensing And Detection
Output: NPN Response Time: Less Than 500us
Voltage - Supply: 12~24V Active Area: 50~200mm
Highlight:

Laser Diffused Photoelectric Sensor

,

Diffused Photoelectric Sensor NPN Output

,

Background Suppression Diffused Photoelectric Sensor

Laser Background Suppression Diffused Photoelectric Sensor

Product Description

Product Name photoelectric sensor
Housing Material PC
Function detection absence and presence
Package kraft box



Model NPN LG-30N-K DG-30N DG-10N DGH-30N DGB-80N
PNP LG-30P-K DG-30P DG-10P DGH-30P DGB-80P
Functional principle Background suppression Diffuse reflection Background suppression
Sensing range 30~300mm adjustable (white test object)
40~260mm adjustable (black test object)		 50~150mm adjustable
50~130mm adjustable		 30~300mm adjustable 40~800mm adjustable
Spot size(distance) about 1*2mm about Ø8mm(300mm) 110mm: about Ф 1mm (at 55℃)/
           about Ф 3mm (at 85℃)		 Invisible (to human eye) about Ø8mm(100mm)
Hysteresis <20%
Standard measured object ≥Ø5mm ≥ Ø10mm ≥ Ø1mm ≥ Ø10mm
Repeatability Less than 5%
Switching mode L.on (light action) /D.on (shading action) can be switched
Response time 1ms
Response frequency 500Hz
Light source 650nm Laser 650nm LED 850nm Infrared Light 455nm Blue Light
Supply voltage DC12~24V ±10%
Residual voltage (voltage drop) <1.5V
Output current (max) 100mA
Consumption (no-load) current   <15mA
Ambient illumination Incandescent lamp ≤ 3000 lux; Sunlight ≤10000Lux
Ambient temperature Working:-10℃ ~ 55℃; storage:-25℃ ~ 70℃, without freezing Working:-10℃ ~ 55 ℃ Working:-10 ℃ ~ 55 ℃; storage:-25℃ ~ 70 ℃, without freezing
Ambient humidity Working: 35% ~ 85% RH; storage: 35%~95%RH, condensed
Protective circuit Polarity reversal protection/surge protection/short circuit protection
Protect grade IP67
Display LED Red: black wire output; LED Green : white wire output
Housing PC
Vibration resistance 10〜55Hz, double amplitude 1.5 mm, x/y/z direction 30 minutes each
Connection Lead-out type (4 cores, standard line 2)/aviation head-out type (4 cores, M8 male, standard line 130mm)


FAQ
Q : What is the MOQ?
A : 1pcs for our own available designs
Q : Can I customize a special sensor?
A : Sure
Q : Can I get a lower price if I order large quantities?
A : Yes, Cheaper prices with bigger quantities orders
Q : Can I get a sample?
A : Of course, but you need to pay the sample fee
Q : When will you ship my order?
A : 3 day shipping guarantee for stock item and within 15 days for non-stock items.
Q : How about the quality guarantee period ?
A : Our warranty period is one year since from shipping date.
Q : Can I add or delete items from my order if I change mind?
A : Yes, but you need to tell us asap, if your order has been done in our production line, we cannot change it.
