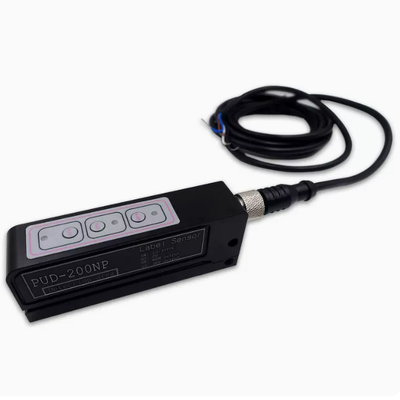

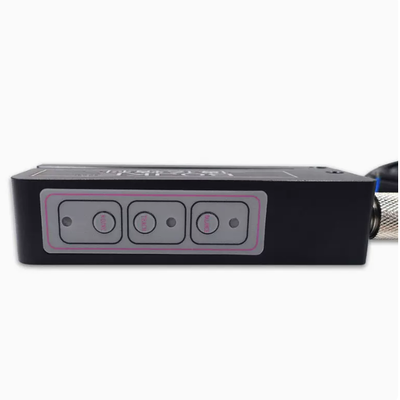

IP65 Transparent Label Sensor Detection Inspecting Counting Opaque Transparent Printed Labels

IP65 Transparent Label Sensor Detection Inspecting Counting Opaque Transparent Printed Labels
IP65 Transparent Label Sensor Detection Inspecting Counting Opaque Transparent Printed Labels IP65 Transparent Label Sensor Detection Inspecting Counting Opaque Transparent Printed Labels IP65 Transparent Label Sensor Detection Inspecting Counting Opaque Transparent Printed Labels IP65 Transparent Label Sensor Detection Inspecting Counting Opaque Transparent Printed Labels

Large Image :  IP65 Transparent Label Sensor Detection Inspecting Counting Opaque Transparent Printed Labels

Product Details:
Place of Origin: Dongguan China
Brand Name: BOJKE
Certification: CE
Model Number: PUD-200NP
Document: PUD-200NP specification.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Packaging Details: kraft box with carton box;
Delivery Time: 5~8 work days
Payment Terms: T/T
Supply Ability: 150k
Contact Now Chat Now

IP65 Transparent Label Sensor Detection Inspecting Counting Opaque Transparent Printed Labels

Description
Product Name: Transparent Label Sensor Power Supply: DC 12~24V
Slot Width: 0.35mm Slot Length: 85mm
Detected Object: Transparent Or Opaque Labels Response Time: Less Than 1ms
Repeatability: Less Than 5% Output: NPN And PNP
Highlight:

IP65 Transparent Label Sensor

,

Transparent Capacitive Label Sensor

,

Opaque Transparent Printed Labels



Label Sensor Detection Inspecting Counting Transparent Opaque Printed Labels

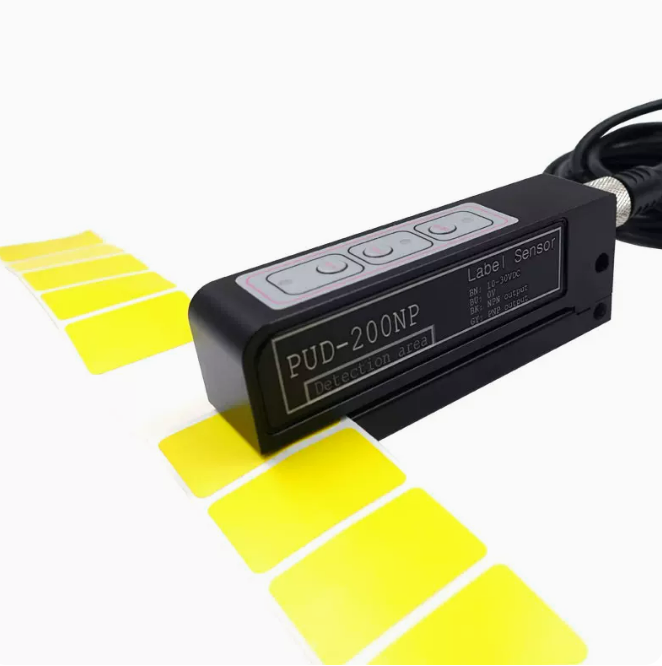

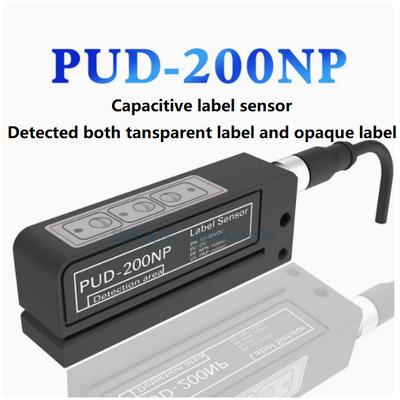

Product Name Capacitive label sensor
Housing material Aluminum alloy
Function detection labels

IP65 Transparent Label Sensor Detection Inspecting Counting Opaque Transparent Printed Labels 0



Infrared detection and ultrasonic detection and capacitive detection are available

Stably detects those labels with 0.35mm gaps and 85mm length
With two-point and single-point teaching function



Model  PUD-200NP
Detection Mode  capacitive sensing
Slot Wideth  0.35mm
Slot depth  85mm
Hysteresis Range  <20%
Detection Object  transparent and opaque label
Repeat Accuracy  <5%
Sensitivity Adjustment  button adjustable
Output Mode NPN and PNP two channel output at same time
Switch Mode  NO/NC switchable
Response Time <1ms
Response Frequency  2KHz
Working Voltage  DC 12~24V ±10%
Residue Voltage  <2V (load current 50mA, cable 2 meter)
Max Load Current  100mA
Consumption (no-load) current <40mA
Ambient Temperature  working:-10℃~55℃；storage:-25℃~70℃,no freezing
Ambient Humidity  working:35%~85% RH；storage:35%~95% RH,no condensation
Protection Circuit  polarity reversal protection/surge protection/ short circuit protection
Protection Level  IP65
Indicator Light  Red: working indicator light;  Green: output indicator light
Connection Type 4-PIN connector
Housing Material  aluminum alloy+anodized
Withstand Voltage  AC 500V, 50/60Hz, 1 minute
Vibration Resistance  10～55Hz, dual amplitude 1.5mm, X/Y/Z directions each 2 hours
Impact Resistance 500m/S2, X,Y,Z directions each 3 times
Insulation Impedance  above 20MΩ (DC 500V megohmmeter)
