Infrared Photoelectric Sensor TOF Laser Switch Sensor With 3m Long Sensing Distance

Infrared Photoelectric Sensor TOF Laser Switch Sensor With 3m Long Sensing Distance
Infrared Photoelectric Sensor TOF Laser Switch Sensor With 3m Long Sensing Distance Infrared Photoelectric Sensor TOF Laser Switch Sensor With 3m Long Sensing Distance Infrared Photoelectric Sensor TOF Laser Switch Sensor With 3m Long Sensing Distance

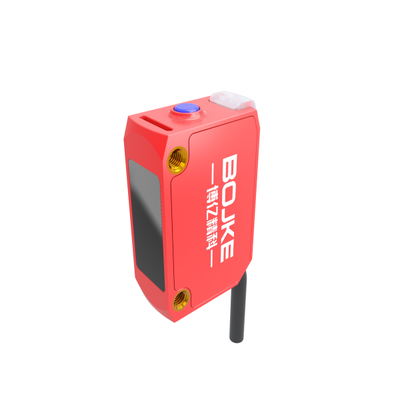

Large Image :  Infrared Photoelectric Sensor TOF Laser Switch Sensor With 3m Long Sensing Distance

Product Details:
Place of Origin: Guangdong, China
Brand Name: BOJKE
Certification: CE
Model Number: LG-300NP
Document: LG-300NP.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $17.8
Packaging Details: PP bag with carton box;
Delivery Time: 5~8 work days
Payment Terms: T/T
Supply Ability: 150k
Contact Now Chat Now

Infrared Photoelectric Sensor TOF Laser Switch Sensor With 3m Long Sensing Distance

Description
Features: TOF Series: Infrared Photoelectric Sensor
Description: Laser Sensor, TOF Laser Photoelectric Sensor Type: Photoelectric Sensor
Usage: Industrial Automation Output: NPN,PNP
Highlight:

Infrared Photoelectric Sensor

,

Laser Switch Sensor 3m

,

TOF Laser Switch Sensor

Infrared TOF Laser Switch Sensor Photoelectric Sensor With 3m Long Sensing Distance





Product Description

Product Name Infrared TOF photo electric sensor
Material PC
Function TOF sensor
Package poly bag+box



Infrared Photoelectric Sensor TOF Laser Switch Sensor With 3m Long Sensing Distance 0

Product performance description

High speed response and small spot light
sensing range: 3 meter

Model LG-300NP
Sensing range(Note 1) 50mm~3000mm
Setting range(Note 1) 100mm~3000mm
Hysteresis(Note 2) Within 15% of the detection distance (within 50mm~900mm) and within 8% of the detection distance (within 900mm~3000mm)
Light spot φ32mm (at 1000mm);  φ105mm (at 3000mm)
Supply voltage 12V DC~24VDC±10%/P-P ＜10%
Consumption current ＜40mA
Output ·NPN output Max current:100mA;    Residual voltage :＜2V (at 100mA)
·PNP output  Max current:100mA;    Residual voltage :＜2V (at 100mA)
Short circuit protection automatic recovery
Response time(Note:3) ＜50ms  (setting ＜900mm)
＜100ms (setting 900mm~3000mm)
Light source Infrared invisible,wavelength:940nm;  laser class 1
Environment Protection degree IP67 (IEC)
Working temperature working temperature:10℃~+55℃(at -10℃ no condensation,no freezing) storage temperature:-30℃~+70℃
Ambient humidity working humidity:35%RH～85%RH,storage humidity:35%RH～85%RH
Ambient Illuminace Incandescent lamp < 2000  lx sun light: < 8000 lx
Vibration resistance 10Hz~55Hz amplitude 1.5m
X,Y and Z directions each 30 minutes(no powered state)
Shock resistance 300m/s²(about 30g)
Housing materiers PC
Connection type cable type (4-pin, length 2m)

FAQ
Q : What is the MOQ?
A : 1pcs for our own available designs
Q : Can I customize a special sensor?
A : Sure
Q : Can I get a lower price if I order large quantities?
A : Yes, Cheaper prices with bigger quantities orders
Q : Can I get a sample?
A : Of course, but you need to pay the sample fee
Q : When will you ship my order?
A : 3 day shipping guarantee for stock item and within 15 days for non-stock items.
Q : How about the quality guarantee period ?
A : Our warranty period is one year since from shipping date.
Q : Can I add or delete items from my order if I change mind?
A : Yes, but you need to tell us asap, if your order has been done in our production line, we cannot change it.
