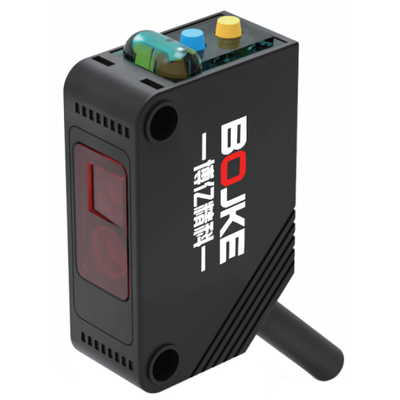

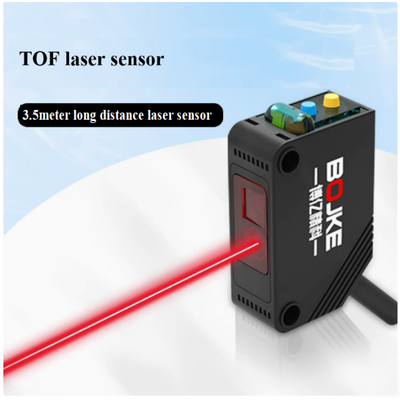

Long TOF Mini laser sensor , Laser Photoelectric Switch Sensor 3.5m Sensing Range

Long TOF Mini laser sensor , Laser Photoelectric Switch Sensor 3.5m Sensing Range
Long TOF Mini laser sensor , Laser Photoelectric Switch Sensor 3.5m Sensing Range Long TOF Mini laser sensor , Laser Photoelectric Switch Sensor 3.5m Sensing Range

Large Image :  Long TOF Mini laser sensor , Laser Photoelectric Switch Sensor 3.5m Sensing Range

Product Details:
Place of Origin: Guangdong, China
Brand Name: BOJKE
Certification: CE
Model Number: LG-400N/LG-400P
Document: LG-400N user manual.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $21-23
Packaging Details: PP bag with carton box;
Delivery Time: 5~8 work days
Payment Terms: T/T
Supply Ability: 150k
Contact Now Chat Now

Long TOF Mini laser sensor , Laser Photoelectric Switch Sensor 3.5m Sensing Range

Description
Series: Photoelectric Switch Sensor Usage: Industrial Automation
Theory: TOF Output: NPN PNP
Sensing Range: 0.05~2m Light Source: Laser ClassII
Highlight:

TOF Mini laser sensor

,

Long Mini laser sensor

,

Photoelectric Switch Sensor 3.5m


Product Description

Product Name TOF Mini laser sensor
Material PMMA
Function distance measurement
Package poly bag+box

High speed response and small spot light

Model LG-400N LG-400P
Output type NPN PNP
Sensing range 0.05-2m@30% reflectivity 0.05-4m@90% reflectivity
Light source Medium 650nm LED
Laser class Class 2(＜1mW)
Light type Red visible laser
Spot size: About 3 * 5mm at a distance of 1m; about 4 * 7mm at a distance of 2m
Response time 10ms
Repeat accuracy ±5mm
Hysteresis 25mm
Working voltage 9~30V DC
Residual voltage ＜1V
Power consumption (no-load) ＜0.6W
Control ouput Maximum load current 100mA
Maximum load voltage 30V DC
Output NO/NC switchable,switching method:based on the duration of the button press
Output mode Instant/delayed response mode,switching method:based on the duration of the button press
Indicator light Power/successful setting indicator light (yellow), signal/failed setting indicator light (orange)
Protection circuit Short circuit protection, reverse connection protection, surge protection, electrostatic protection
Protection degree IP64
Environment Ambient Illuminace <4000Lux
Working temperature -10℃~+50℃
Storage temperature -25℃~+70℃
Parameters Shell PC+ABS
Lens PMMA
Cable 0.2mm 3 core PVC cable,lenght: 2m
Weight about 40g(include 2m cable)

FAQ
Q : What is the MOQ?
A : 1pcs for our own available designs
Q : Can I customize a special sensor?
A : Sure
Q : Can I get a lower price if I order large quantities?
A : Yes, Cheaper prices with bigger quantities orders
Q : Can I get a sample?
A : Of course, but you need to pay the sample fee
Q : When will you ship my order?
A : 3 day shipping guarantee for stock item and within 15 days for non-stock items.
Q : How about the quality guarantee period ?
A : Our warranty period is one year since from shipping date.
Q : Can I add or delete items from my order if I change mind?
A : Yes, but you need to tell us asap, if your order has been done in our production line, we cannot change it.
