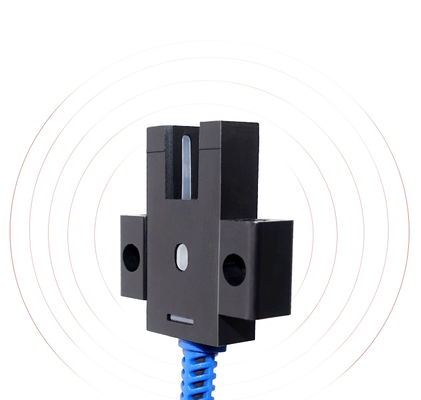

Optical Position Slot Sensors Pre Wired / Connector Type Fork Sensor

Optical Position Slot Sensors Pre Wired / Connector Type Fork Sensor
Optical Position Slot Sensors Pre Wired / Connector Type Fork Sensor Optical Position Slot Sensors Pre Wired / Connector Type Fork Sensor Optical Position Slot Sensors Pre Wired / Connector Type Fork Sensor Optical Position Slot Sensors Pre Wired / Connector Type Fork Sensor

Large Image :  Optical Position Slot Sensors Pre Wired / Connector Type Fork Sensor

Product Details:
Place of Origin: Dongguan China
Brand Name: BOJKE
Certification: CE
Model Number: 67 series
Document: slot type sensor.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: $2.8
Packaging Details: PP bag with carton box;
Delivery Time: 5~8 work days
Payment Terms: T/T
Supply Ability: 150k
Contact Now Chat Now

Optical Position Slot Sensors Pre Wired / Connector Type Fork Sensor

Description
Power Supply: DC 12~24V Frequancy: 2KHz
Standard Detected Object: 1.2x2.0mm Opaque Object Light Source: Infrared Light
Name: Slotted Optical Sensor
Highlight:

Optical Position Slot Sensors

,

Slotted Optical Sensor

,

Connector Type Fork Sensor

Product Name slot photoelectric sensor
Slot Width 5mm
Function detection presence

Optical Position Slot Sensors Pre Wired / Connector Type Fork Sensor 0

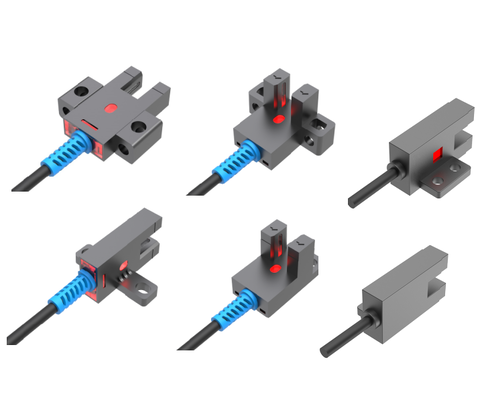

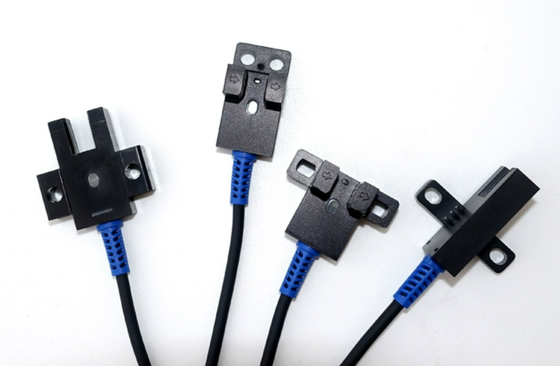

12 appearances with slot width ranges from 5mm to 25mm

Adopt integrated chip to achieve higher consistency
Excellent anti-light interference performance

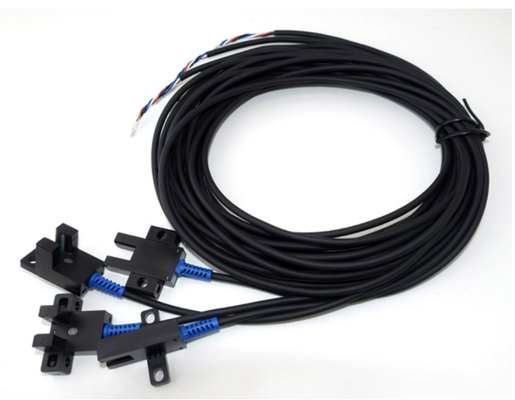

Pre-wired or Connector type available

Model # 670WR 671WR 672WR 674WR 676WR 677WR
Output: NPN
Detection distance: 5mm slot width
Detection object: 1.2x2.0mm opaque object
Light source: GaAs infrared LED 940nm
response frequency: 2KHz
supply power DC12-24V
repeat accuracy: < 0.03mm
operation output: switch capacity: 3-100mA
residue voltage: <3V (load current 100mA, 2m cable )
indicator light: Red LED
switch type: selectable L.on/D.on
protective circuit: surge protection, reverse polarity protection, short circuit.
Ambient temperature:  opration temperature: -25 ~ +70℃  storage temperature: -40 ~ +80℃ (no freezing, no condensation)
Ambient humidity: opration/storage humidity: 35 ~ 95% RH (no condensation)
Ambient illuminance: <1000 lux (Iluminated surface of incandecent lamp)
affected by temperature: detection range ±10% change according temperature change 20 ℃ per time
affected by voltage: rated voltage floating within ±15%, detection distance changing with  ±1%
Insulation impedance: > 50MΩ (DC500MΩ ) between charging and cover case
Withstand  voltage: AC1,000V50/60hz1min between charging and cover case
Anti-virbration: 10~55 Hz,Amplitude 1.5mm,X,Y.Z three directions 2 hours each
Impact resistance: 300m/s X,Y,Z three directions 10times each
Connection: 2m cable
Housing material: PC



Tag:

Slot Photoelectric Sensor,

Infrared Optical Sensor,

Slotted Optical Sensor
