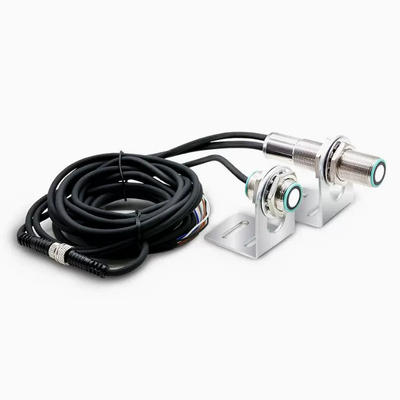

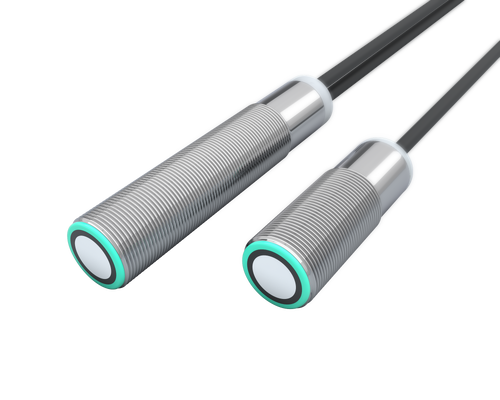

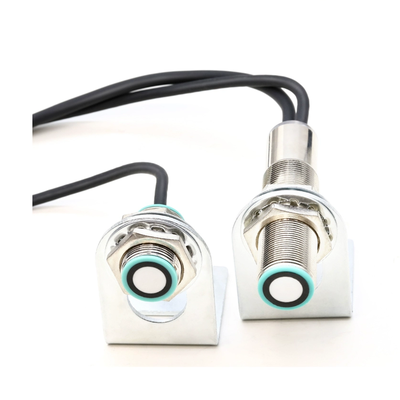

Tru Beam 20-120mm Diffuse Reflective Ultrasonic Sensor Sensing Distance 60-1000mm

Tru-Beam 20~120mm Diffuse Reflective Ultrasonic Sensor Sensing Distance 60~1000mm

• Product performance description
• Small blind area and small sound cone, suitable for precise detection in close range

  Analog voltage output 0-5/10V or analog current output 4-20mA; Output can be changed by serial port upgrade; Detection distance setting by teach wire; Temperature compensation.




• Model		CSBR-100N	CSBR-100P	CSBR-100NY	CSBR-100PY	CSBR-100V5	CSBR-100V10	CSBR-100A
  Detection Range		60 ~1000mm
  Adjustment Range		60 ~1000mm
  Blind Area		0~60mm
  Min Detected Object		0.4mm
  Repeat Accuracy		±0.1% F.S.
  Temperature Drift		±0.9% F.S./℃ (Built-in temperature compensation)
  Standard Test Plate		100x100mm opaque plate
  Divergence Angle		±7°
  Sensor Frequency		200KHz
  Respond Delay		<100ms
  Output Mode		NPN	PNP	NPN hysteresis	NPN hysteresis	analog voltage 0~5V	analog voltage 0~10V	analog current 4~20mA
  Working Voltage		DC 12~30V ±10%
  No-load Current		≤15mA
  Ambient Temperature		working temperature:-25℃~70℃；storage temperature:-40℃~85℃,no freezing
  Ambient Humidity		35%~85% RH, no condensation
  Protection Circuit		reverse polarity protection/surge protection/short circuit protection
  Housing Material		nickel-plated copper
  Indicator Light		light up when output
  Net Weight		45g
  Protection Level		IP65

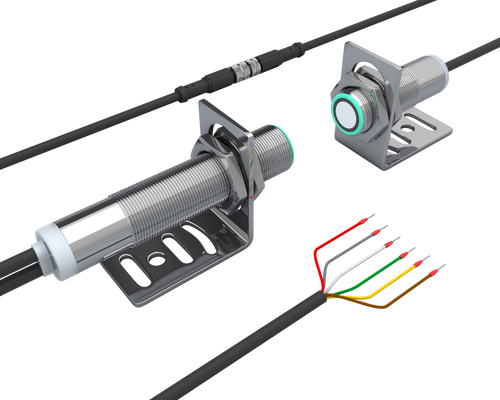

  Connection Type		M12 4-PIN connector
