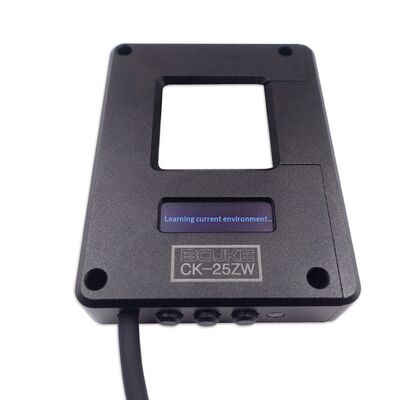

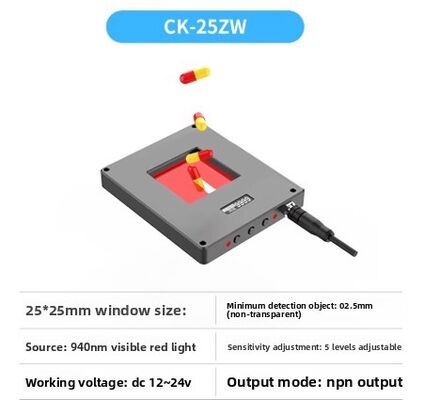

CK-25ZW Drop Counter Sensor , Optical Passage Confirmation Sensors With No Blind Spot Special

Model

CK-25ZW

Type

NPN output

Supply voltage

12-24VDC±10%, floating  P-P <10%

Consumption

 <  600mW

Light source

Infrared  940nm

Sensitivity

5 levels adjustable

Working mode

Single output/Counting output

Detect output

NPN collector open circuit output,Max current 100mA Max input voltage 30VDC,residual voltage <1V

Output Status

NO/NC switchable

Timer function

 3 output modes available:standard/single output, ouput delay.3 adjustable delay time:1ms~9999ms

Response time

<  900uS

Displayer

OLED display

Protection Circuit

Power polarity reverse protection; Output short circuit or overload protection

Ambient luminance

Incandescent lamp ≤ 20,000lux, Sunlight ≤ 30,000lux

Vibration resistance

10 to 55Hz, dual amplitude: 1.5mm, X, Y, Z directions each 2 hours

Ambient temperature

-25  ~ +55 ℃, no freezing
