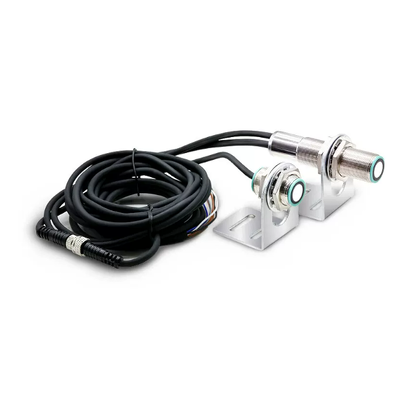

BOJKE Through-beam Ultrasonic Sensor For Detecting Double Sheets In Printing

BOJKE Through-beam Ultrasonic Sensor For Detecting Double Sheets In Printing
BOJKE Through-beam Ultrasonic Sensor For Detecting Double Sheets In Printing BOJKE Through-beam Ultrasonic Sensor For Detecting Double Sheets In Printing BOJKE Through-beam Ultrasonic Sensor For Detecting Double Sheets In Printing BOJKE Through-beam Ultrasonic Sensor For Detecting Double Sheets In Printing

Large Image :  BOJKE Through-beam Ultrasonic Sensor For Detecting Double Sheets In Printing

Product Details:
Place of Origin: Guangdong, China
Brand Name: BOJKE
Certification: CE
Model Number: CSBT-60N/CSBT-60P
Document: Ultrasonic Sensor1.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $205
Packaging Details: kraft paper box with carton box;
Delivery Time: 5~8 work days
Payment Terms: T/T
Supply Ability: 150k
Contact Now Chat Now

BOJKE Through-beam Ultrasonic Sensor For Detecting Double Sheets In Printing

Description
Product Name: Through-Beam Ultrasonic Sensors Usage: Industrial Inspection And Identification
Output: NPN、PNP Frequency: 200KHz
Voltage - Supply: 12~24V DC Detection Distance: 20~120mm
Highlight:

Through-beam Ultrasonic Sensor

,

Double Sheet Detection Sensor

,

Ultrasonic Sensor for Printing

Ultrasonic Sensor Precise Detection Identification High-Frequency Sensitivity




Product Description


Product Name Ultrasonic Sensor
Material Nickel Plated
Function Industrial Inspection and Identification
Theory ultrasonic sensing


1. Product performance description

2. The ultrasonic wave propagation speed is stable, and the stability is consistent under different measurement ranges. Low power consumption.

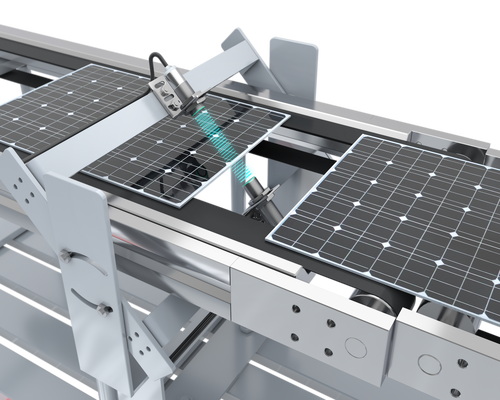

3. Precise detection enables easy identification of paper, film, silicon wafers, adhesive tape, solar cells, and PCB boards. It can be applied in multiple fields such as smart factories, smart cities, and smart homes.
BOJKE Through-beam Ultrasonic Sensor For Detecting Double Sheets In Printing

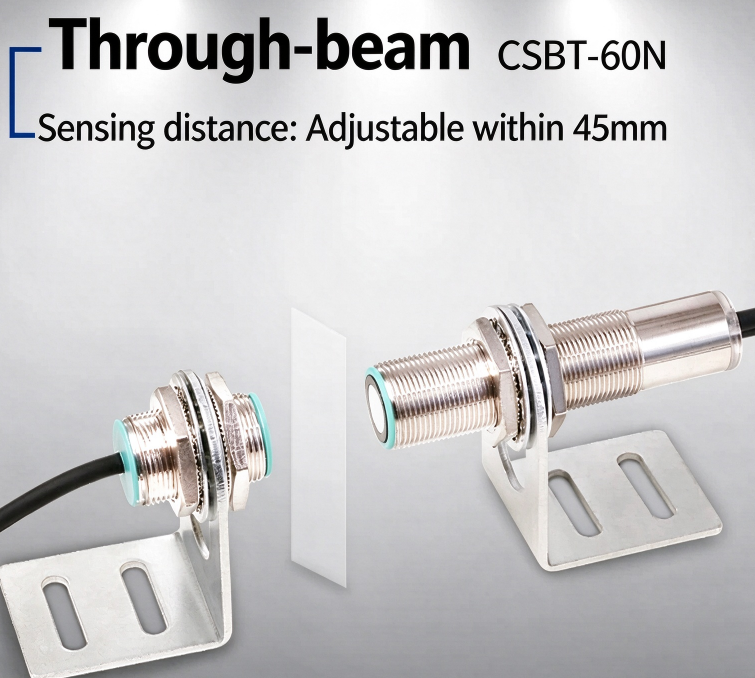

Model No. CSBT-06N CSBT-06P
Sensing Range 20 - 120 mm,Best range:60 mm
screen refresh 1ms

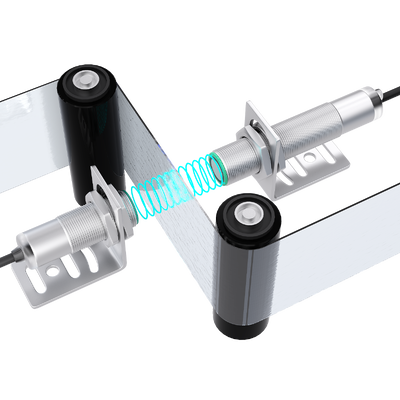

Application application for detecting none, single or multiple sheets of overlapping material
Pulse <100ms
Sensor Frequency 200KHz
Respond Delay <500ms
Calibration Method built-in calibration mode
Output Mode NPN , three independent outputs PNP , three independent outputs
Working Voltage DC 18~30V ±10%
No-load Current ≤25mA
Working Current ≤100mA
Voltage Drop <3V
Power Consumption ≤550mW
Impedance ≥60 kΩ
Ambient Temperature operation temperature:-25℃~70℃；storage temperature:-25℃~80℃,no freezing
Ambient Humidity 35%~85% RH, no condensation
Protection Circuit reverse polarity protection/surge protection/short circuit protection
Housing Material nickel-plated copper
Indicator LED yellow: no target object (air); LED green: single sheet detected ; LED red: double sheets detected
Net Weight 180g
Protection Level IP67
Connection Type cable-type (6 core, 2 meter standard cable)

FAQ
Q : What is the MOQ?
A : 1pcs for our own available designs
Q : Can I customize a special sensor?
A : Sure
Q : Can I get a lower price if I order large quantities?
A : Yes, Cheaper prices with bigger quantities orders
Q : Can I get a sample?
A : Of course, but you need to pay the sample fee
Q : When will you ship my order?
A : 3 day shipping guarantee for stock item and within 15 days for non-stock items.
Q : How about the quality guarantee period ?
A : Our warranty period is one year since from shipping date.
Q : Can I add or delete items from my order if I change mind?
A : Yes, but you need to tell us asap, if your order has been done in our production line, we cannot change it.
