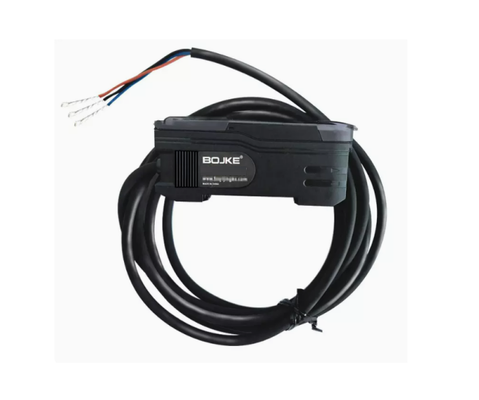

Plastic Digital Display Fiber Optic Amplifier Sensor Fast Respond

Plastic Digital Display Fiber Optic Amplifier Sensor Fast Respond
Plastic Digital Display Fiber Optic Amplifier Sensor Fast Respond Plastic Digital Display Fiber Optic Amplifier Sensor Fast Respond Plastic Digital Display Fiber Optic Amplifier Sensor Fast Respond Plastic Digital Display Fiber Optic Amplifier Sensor Fast Respond Plastic Digital Display Fiber Optic Amplifier Sensor Fast Respond

Large Image :  Plastic Digital Display Fiber Optic Amplifier Sensor Fast Respond

Product Details:
Place of Origin: Guangdong, China
Brand Name: BOJKE
Certification: CE
Model Number: ER2-22N/ER2-22P
Document: Optic Amplifier.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $14.8
Packaging Details: kraft paper box with carton box;
Delivery Time: 5~8 work days
Payment Terms: T/T
Supply Ability: 150k
Contact Now Chat Now

Plastic Digital Display Fiber Optic Amplifier Sensor Fast Respond

Description
Product Name: Optical Amplifier Description: Anti-interference, Detection Optical Amplifier, Fiber Optic Sensor
Type: Dual Digital Fiber Sensor Usage: Detection Absence,positioning, Counting,identification Etc
Output: NPN Or PNP Application: Industry Equipment
Response Time: 80 Us ~200 Ms Power Supply: 12~24 V DC
Highlight:

Digital Display Fiber Optic Amplifier Sensor

,

Fiber Optic Amplifier Sensor Fast Respond

,

Plastic Fiber Optic Amplifier Sensor

BOJKE Plastic Digital Display Fiber-Optic Amplifier Sensor Anti-Interference





Product Description

Product Name digital fiber sensor
Housing Material plastic
Function counting, detection fluid flow rate, temperature,density etc

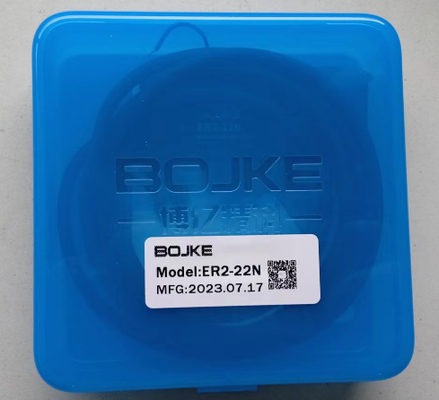

Package kraft box

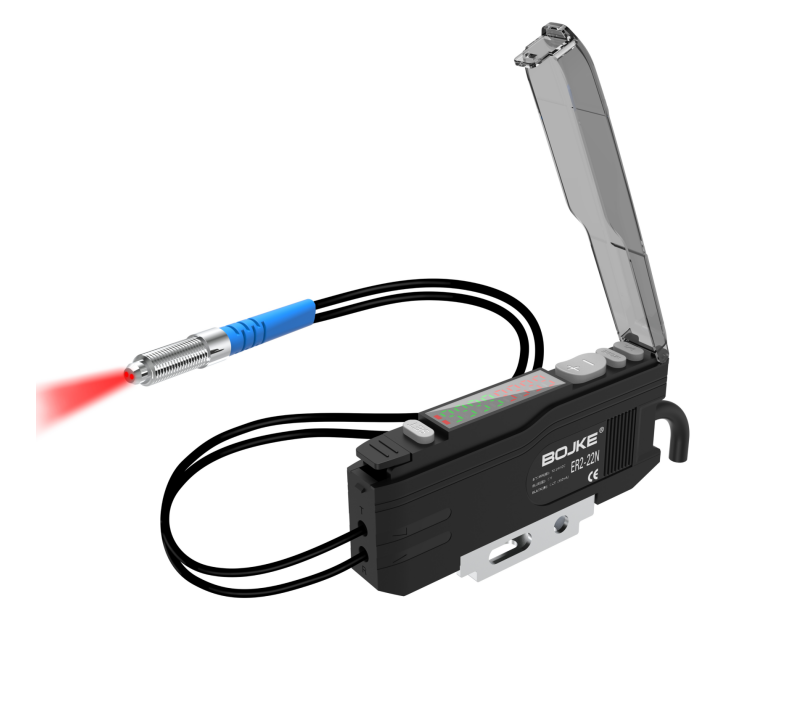

Plastic Digital Display Fiber Optic Amplifier Sensor Fast Respond 1

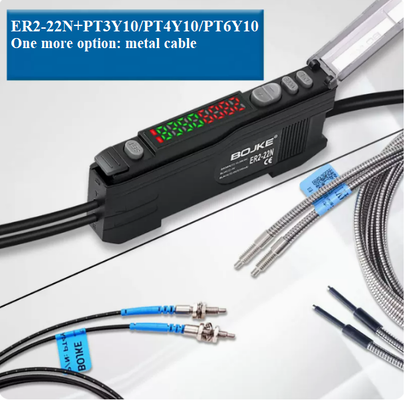

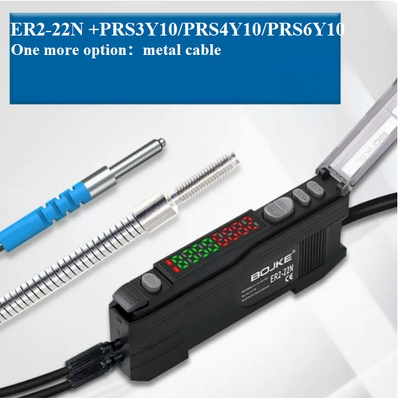

Model No ER2-22N ER2-22P
Type NPN PNP
Operation Voltage 12-24VDC±10%,floating(P-P <10%)
Current Consumption < 40mA
Light Source Red 4-element Led
Detection Method Diffuse reflection or opposite(according fiber type)
Detection Range P-1Diffuse reflection 200mm,opposite 700mm
P-2Diffuse reflection 280mm,opposite 1200mm
Detection Output NPN collector open circuit output,  Max current 100mA Max input voltage 30VDC,            residual voltage <1V PNP collector open circuit output,  Max current 100mA Max              input voltage 30VDC,                    residual voltage <2V
Output State press(D/L)5S to switch NO/NC
Delay Function 4 output modes available:no delay/single output delay,pull up delay/pull down delay. 3 adjustable delay time:1ms~9999ms
Response time P--1: <100uS       P--2:< 200uS
LED Display Red output indicator light,                threshold value(4 digit green Led),            lights up with the current value(4 digit red LED)
protection circuit Reverse polarity protection ; output short circuit and overload protection
Ambient Illumination Incandescent lamp:≤20,000lux,                 Sunlight:≤30,000lux
Anti-Vibration 10~55Hz,1.5mm double amplitude,X,Y,Z     2hours at each direction
Ambient temperature -25~ +55℃,no freezing
FAQ
Q : What is the MOQ?
A : 1pcs for our own available designs
Q : Can I customize a special sensor?
A : Sure
Q : Can I get a lower price if I order large quantities?
A : Yes, Cheaper prices with bigger quantities orders
Q : Can I get a sample?
A : Of course, but you need to pay the sample fee
Q : When will you ship my order?
A : 3 day shipping guarantee for stock item and within 15 days for non-stock items.
Q : How about the quality guarantee period ?
A : Our warranty period is one year since from shipping date.
Q : Can I add or delete items from my order if I change mind?
A : Yes, but you need to tell us asap, if your order has been done in our production line, we cannot change it.
