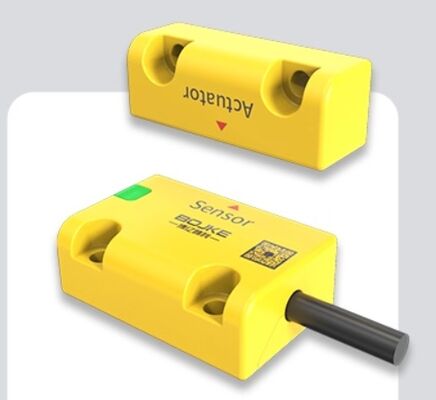

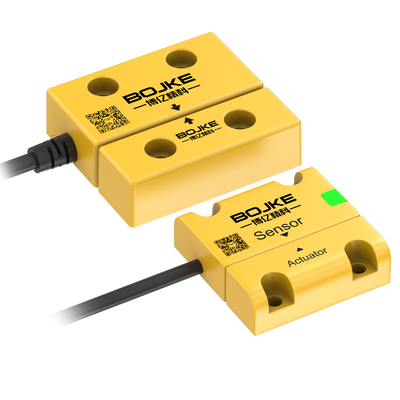

Non Contact Magnetic Encoder Safety Door Switch RFID Industrial Safety Door Lock

Large Image : Non Contact Magnetic Encoder Safety Door Switch RFID Industrial Safety Door Lock

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	BOJKE
Certification:	CE
Model Number:	BSC series, BSR series
Document:	BSC BSR series.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$12.8~$14.6
Packaging Details:	PP bag with carton box;
Delivery Time:	5~8 work days
Payment Terms:	T/T
Supply Ability:	150k

Contact Now Chat Now

Non Contact Magnetic Encoder Safety Door Switch RFID Industrial Safety Door Lock

Description

Product Name:	Safety Door Switch	Type:	Safety Controllers, Safety Door Switch, Safety Door Lock
Usage:	Industry,Industrial Automation	Response Time:	5ms
Frequency:	1HZ	Standard:	SIL3
Highlight:	Non Contact Safety Door Switch , Magnetic Encoder Safety Door Switch , Industrial Safety Door Lock

BOJKE Non-Contact Magnetic Encoder Safety Door Switch RFID Industrial Safety Door Lock

Product Description

Product Name	Safety sensor
Material	Plastic
Function	Protection
Package	Plastic box + inner box

Product performance description

A safety switch is a device used to prevent personnel from entering hazardous areas. Its principle is to monitor specific conditions and cut off electrical circuits to ensure safety.The main function of a safety switch is to immediately cut off the electrical circuit when a hazardous situation is detected, in order to protect the safety of personnel and equipment.

BSC series

Model	BSC-M01-2A-02	BSC-M01-1A1B-02	BSC-M01-2B-02
Safty standard	SIL3
Safety classification	"Class 3 switches conforming to ISO 13849-1. Dual-channel interlocking is suitable for Class 3 or Class 4 systems. "
Safety output	Two normally open safety output contacts (N.O)
Working distance	Turn on. Min:8mm; Disconnect, Max:17mm
Typical tolerance	See alignment schematic.
Output current (Max)	200mA
Response time	5ms
Protection grades	IP67,(IP69K customized)
Operating frequency	1Hz
Working temperature	-10℃~+55℃
Relative humidity	5~95%
Material	Flame-retardant thermoplastic

<table style="border-collapse: collapse; width: 510.02pt;" border="1" width="1020" cellspacing="0" cellpadding="0" data-mce-style="border-collapse: collapse; width: 510.02pt;" data-mce-fragment="1"><tbody data-mce-fragment="1"><tr style="height: 15.00pt;" data-mce-style="height: 15.00pt;" data-mce-fragment="1"><td class="et4" style="height: 15.00pt; width: 132.25pt;" width="264" height="30" data-mce-style="height: 15.00pt; width: 132.25pt;" data-mce-fragment="1">Model</td><td class="et5" style="width: 94.50pt;" width="189" data-mce-style="width: 94.50pt;" data-mce-fragment="1">BSR-M03-N-02</td><td class="et5" style="width: 94.50pt;" width="189" data-mce-style="width: 94.50pt;" data-mce-fragment="1">BSR-M03-P-02</td><td class="et5" style="width: 94.50pt;" width="189" data-mce-style="width: 94.50pt;" data-mce-fragment="1">BSR-M03-CN-02</td><td class="et5" style="width: 94.50pt;" width="189" data-mce-style="width: 94.50pt;" data-mce-fragment="1">BSR-M03-CP-02</td></tr><tr style="height: 15.00pt;" data-mce-style="height: 15.00pt;" data-mce-fragment="1"><td class="et4" style="height: 15.00pt;" height="30" data-mce-style="height: 15.00pt;" data-mce-fragment="1">Safty standard</td><td class="et6" style="border-right: .5pt solid #000000;" colspan="4" data-mce-style="border-right: .5pt solid #000000;" data-mce-fragment="1">SIL3</td></tr><tr style="height: 15.00pt;" data-mce-style="height: 15.00pt;" data-mce-fragment="1"><td class="et4" style="height: 15.00pt;" height="30" data-mce-style="height: 15.00pt;" data-mce-fragment="1">Safety classification</td><td class="et9" style="width: 378.00pt; border-right: .5pt solid #000000;" colspan="4" width="756" data-mce-style="width: 378.00pt; border-right: .5pt solid #000000;" data-mce-fragment="1">Category 4 switches compliant with ISO 13849-1 / Suitable for PLe/PLd</td></tr><tr style="height: 15.00pt;" data-mce-style="height: 15.00pt;" data-mce-fragment="1"><td class="et4" style="height: 15.00pt;" height="30" data-mce-style="height: 15.00pt;" data-mce-fragment="1">Certificate</td><td class="et6" style="border-right: .5pt solid #000000;" colspan="4" data-mce-style="border-right: .5pt solid #000000;" data-mce-fragment="1">CE</td></tr><tr style="height: 15.00pt;" data-mce-style="height: 15.00pt;" data-mce-fragment="1"><td class="et4" style="height: 15.00pt;" height="30" data-mce-style="height: 15.00pt;" data-mce-fragment="1">Horizontal Working distance</td><td class="et6" style="border-right: .5pt solid #000000;" colspan="4" data-mce-style="border-right: .5pt solid #000000;" data-mce-fragment="1"><span style="mso-spacerun: yes;" data-mce-style="mso-spacerun: yes;" data-mce-fragment="1"> </span>Min:10mm</td></tr><tr style="height: 15.00pt;" data-mce-style="height: 15.00pt;" data-mce-fragment="1"><td class="et4" style="height: 15.00pt;" height="30" data-mce-style="height: 15.00pt;" data-mce-fragment="1">Vertical working distance<span style="mso-spacerun: yes;" data-mce-style="mso-spacerun: yes;" data-mce-fragment="1"> </span></td><td class="et6" style="border-right: .5pt solid #000000;" colspan="4" data-mce-style="border-right: .5pt solid #000000;" data-mce-fragment="1"><span style="mso-spacerun: yes;" data-mce-style="mso-spacerun: yes;" data-mce-fragment="1"> </span>Min:8mm</td></tr><tr style="height: 15.00pt;" data-mce-style="height: 15.00pt;" data-mce-fragment="1"><td class="et4" style="height: 15.00pt;" height="30" data-mce-style="height: 15.00pt;" data-mce-fragment="1">Operating voltage</td><td class="et6" style="border-right: .5pt solid #000000;" colspan="4" data-mce-style="border-right: .5pt solid #000000;" data-mce-fragment="1">24 V DC ±15%</td></tr><tr style="height: 15.00pt;" data-mce-style="height: 15.00pt;" data-mce-fragment="1"><td class="et4" style="height: 15.00pt;" height="30" data-mce-style="height: 15.00pt;" data-mce-fragment="1">Operating current</td><td class="et6" style="border-right: .5pt solid #000000;" colspan="4" data-mce-style="border-right: .5pt solid #000000;" data-mce-fragment="1">30mA</td></tr><tr style="height: 15.00pt;" data-mce-style="height: 15.00pt;" data-mce-fragment="1"><td class="et4" style="height: 15.00pt;" height="30" data-mce-style="height: 15.00pt;" data-mce-fragment="1">output current</td><td class="et6" style="border-right: .5pt solid #000000;" colspan="4" data-mce-style="border-right: .5pt solid #000000;" data-mce-fragment="1">150mA</td></tr><tr style="height: 15.00pt;" data-mce-style="height: 15.00pt;" data-mce-fragment="1"><td class="et4" style="height: 15.00pt;" height="30" data-mce-style="height: 15.00pt;" data-mce-fragment="1">Response time</td><td class="et6" style="border-right: .5pt solid #000000;" colspan="4" data-mce-style="border-right: .5pt solid #000000;" data-mce-fragment="1">60ms</td></tr><tr style="height: 15.00pt;" data-mce-style="height: 15.00pt;" data-mce-fragment="1"><td class="et4" style="height: 15.00pt;" height="30" data-mce-style="height: 15.00pt;" data-mce-fragment="1">Protection grades</td><td class="et6" style="border-right: .5pt solid #000000;" colspan="4" data-mce-style="border-right: .5pt solid #000000;" data-mce-fragment="1"><span class="font1" data-mce-fragment="1">IP65</span><span class="font2" data-mce-fragment="1">,</span><span class="font1" data-mce-fragment="1">IP67</span><span class="font2" data-mce-fragment="1">,</span><span class="font1" data-mce-fragment="1">IP68</span></td></tr><tr style="height: 15.00pt;" data-mce-style="height: 15.00pt;" data-mce-fragment="1"><td class="et4" style="height: 15.00pt;" height="30" data-mce-style="height: 15.00pt;" data-mce-fragment="1">Operating frequency</td><td class="et6" style="border-right: .5pt solid #000000;" colspan="4" data-mce-style="border-right: .5pt solid #000000;" data-mce-fragment="1">1Hz</td></tr><tr style="height: 15.00pt;" data-mce-style="height: 15.00pt;" data-mce-fragment="1"><td class="et4" style="height: 15.00pt;" height="30" data-mce-style="height: 15.00pt;" data-mce-fragment="1">Working temperature</td><td class="et6" style="border-right: .5pt solid #000000;" colspan="4" data-mce-style="border-right: .5pt solid #000000;" data-mce-fragment="1">-10℃~+55℃</td></tr><tr style="height: 15.00pt;" data-mce-style="height: 15.00pt;" data-mce-fragment="1"><td class="et4" style="height: 15.00pt;" height="30" data-mce-style="height: 15.00pt;" data-mce-fragment="1">Relative humidity</td><td class="et6" style="border-right: .5pt solid #000000;" colspan="4" data-mce-style="border-right: .5pt solid #000000;" data-mce-fragment="1">5~95%</td></tr><tr style="height: 15.00pt;" data-mce-style="height: 15.00pt;" data-mce-fragment="1"><td class="et4" style="height: 15.00pt;" height="30" data-mce-style="height: 15.00pt;" data-mce-fragment="1">Material</td><td class="et6" style="border-right: .5pt solid #000000;" colspan="4" data-mce-style="border-right: .5pt solid #000000;" data-mce-fragment="1">Flame-retardant thermoplastic</td></tr></tbody></table><span id="mce_marker" data-mce-type="bookmark" data-mce-fragment="1"></span><br data-mce-bogus="1">

BSR series

Model	BSR-M03-N-02	BSR-M03-P-02	BSR-M03-CN-02	BSR-M03-CP-02
Safty standard	SIL3
Safety classification	Category 4 switches compliant with ISO 13849-1 / Suitable for PLe/PLd
Certificate	CE
Horizontal Working distance	Min:10mm
Vertical working distance	Min:8mm
Operating voltage	24 V DC ±15%
Operating current	30mA
output current	150mA
Response time	60ms
Protection grades	IP65,IP67,IP68
Operating frequency	1Hz
Working temperature	-10℃~+55℃
Relative humidity	5~95%
Material	Flame-retardant thermoplastic
