Waterproof Safety Light Curtain Sensor Infrared Beam Detector Fiber Optic Grating IP65

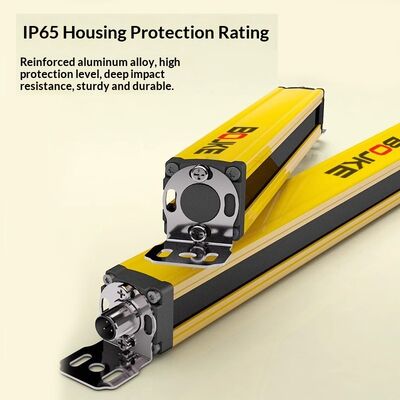

Large Image : Waterproof Safety Light Curtain Sensor Infrared Beam Detector Fiber Optic Grating IP65

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	BOJKE
Certification:	CE
Model Number:	BOF series

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$50~$168
Packaging Details:	kraft paper box with carton box;
Delivery Time:	5~8 work days
Payment Terms:	T/T
Supply Ability:	150k

Contact Now Chat Now

Waterproof Safety Light Curtain Sensor Infrared Beam Detector Fiber Optic Grating IP65

Description

Features:	Waterproof,Infrared Beam	Product Name:	Light Curtain Sensor
Description:	Safety Curtain, IP65 Waterproof Safety Light Curtain Sensor	Theory:	Fiber Optic Grating Sensor
Output:	NPN/PNP	Response Time:	4-18ms
Voltage - Supply:	DC12~24V	Sensing Range:	0.2~2.5/6m
Highlight:	Waterproof Safety Light Curtains , Safety Light Curtains IP65 , Safety Light Curtain Sensor IP65

Waterproof Safety Light Curtain Sensor Infrared Beam Detector Fiber Optic Grating IP65

Product name	Safety light curtains
Material	Aluminum alloy
Function	Safety protection

Detection height	60x2940mm
Cross-section size	45x45mm
Detection distance	0.2~2.5m/6m
Number of beams	4~128
Beam pitch	10/20/40
Light source	Infrared wavelength 940nm
Synchronization type	Optical Synchronization
Power consumption	≤15W
Response time	4~18ms
Power supply	DC 12~24V ±10%

Output type	NPN/PNP
Out current	≤100mA
Ambient temperature	- 10℃ ~55℃
Shock resistance	10g/20ms
Anti-electromagnetic Interference	Above 2000V burst pulse
Scan time	<18ms
