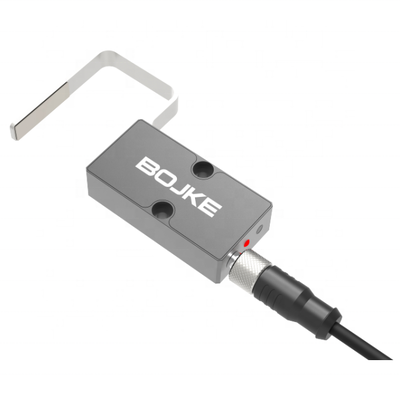

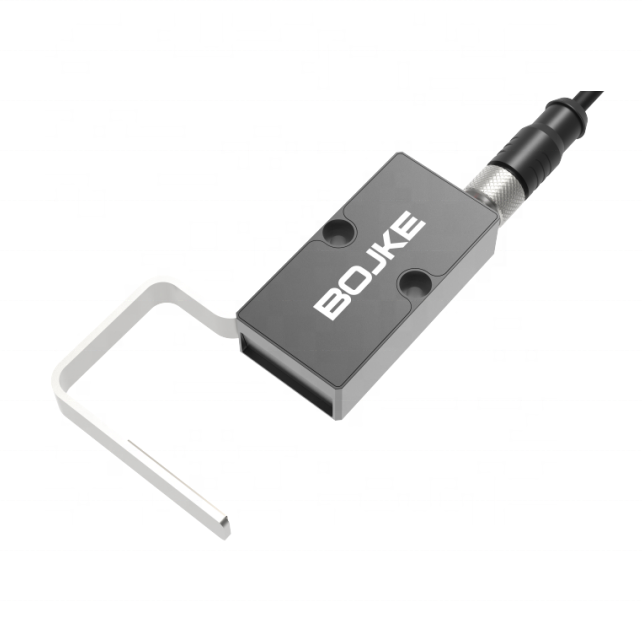

BOJKE Compact Edge Detection Position Sensor Sensing Range 0-40mm

Large Image : BOJKE Compact Edge Detection Position Sensor Sensing Range 0-40mm

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	BOJKE
Certification:	CE
Model Number:	BDR-24A
Document:	Edge laser sensor.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$226
Packaging Details:	kraft paper box with carton box;
Delivery Time:	5~8 work days
Payment Terms:	T/T
Supply Ability:	150k

Contact Now Chat Now

BOJKE Compact Edge Detection Position Sensor Sensing Range 0-40mm

Description

Product Name:	Photoelectric Laser Sensor	Description:	Laser Area Sensor
Usage:	Measurement, Sheet Edge Control	Theory:	Laser Reflection
Power Supply:	12~24v DC	Detection Distance:	0~40mm
Highlight:	BOJKE compact position sensor , edge detection sensor 0-40mm , measuring sensor with warranty

Photoelectric Laser Diffuse Reflection Edge Sensor Sensing Range 0~40mm

Product Description

Product Name	Reflective Laser Sensor
Material	Aluminum Alloy
Function	Detection
Package	Plastic box + inner box

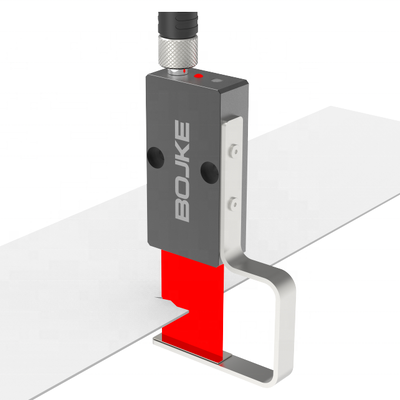

1. Suitable for edge measurement and width/gap measurement

2. Light reflective function for easy installation

3. Compact design for easy installation

4. Send the data of sheet edge positions to a controller to eliminate meandering.

Model		BDR-24A
Measure range		24mm
Detection distance(from workpiece)		0～40mm
Light source	wavelength	Red laser 650nm
	maximum power	7mw
Light spot		3.5x25mm
linear accuracy		±200μm
repeat accuracy		±30μm
Response time		500μs
Temperature drift		±0.02%F.S./℃
RGB indicator light		Slow flashing green light (2Hz): normal operating state
		Long green light on: program restart loading in progress
		Light off: The light path is completely blocked or in an abnormal state
Analog ouput		current:4～20mA (Input impedance of sampling terminal≤250Ω)
Supply power voltage		DC 12～24V ±10%
Cosumption current		<100mA(at DC 24V)
Connect type		M8 4 pin connector
protection degree		IP67
Operation temperature/humidity		-10 ～ + 50℃/35～85%RH(No condensation, no freezing)
Storage temperature/humidity		-20～+60℃/35～85%RH(No condensation, no freezing)
Ambient illuminace		sunlight:< 10000lux,incandescent lamp:< 3000lux 以下
Vibration resistance		10～55Hz amplitude 1.5mm
		X,Y,Z directions 2 hourse
Shock resistance		about 50G(500 m/s2)
		X,Y,Z directions 3 times
Protection circuit		Reverse connection protection,overcurrent protection
Weight		75g
Material		housing material:aluminium alloy lens:glass
